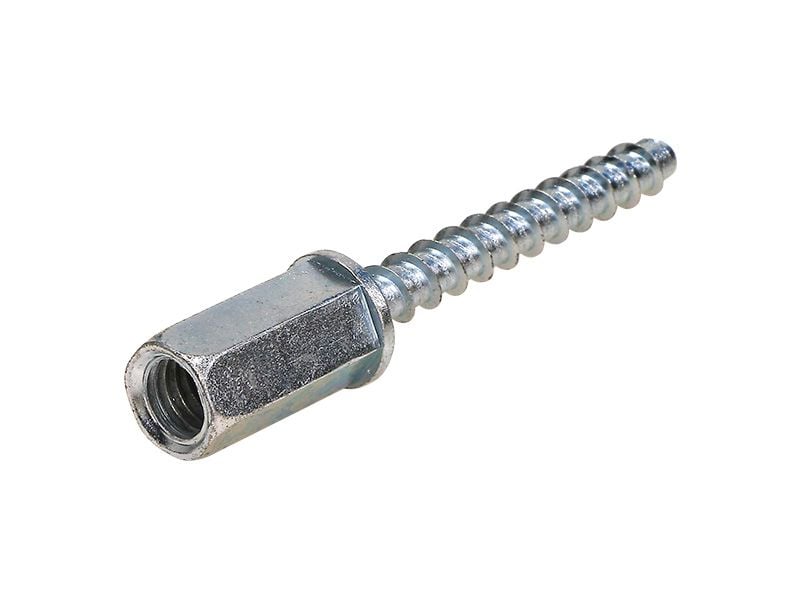

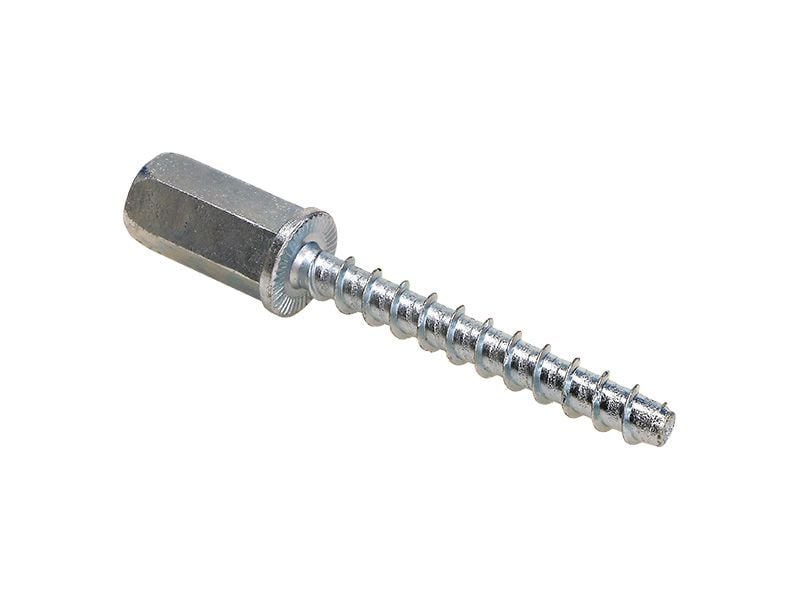

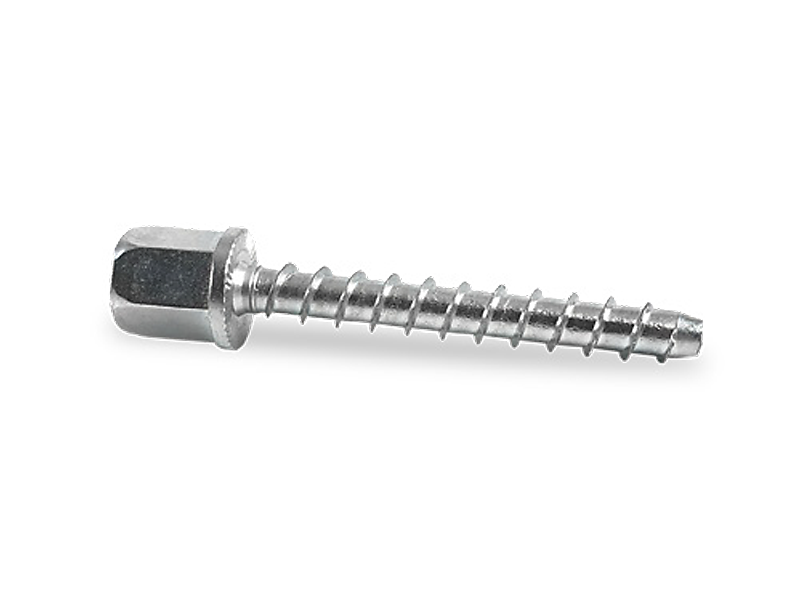

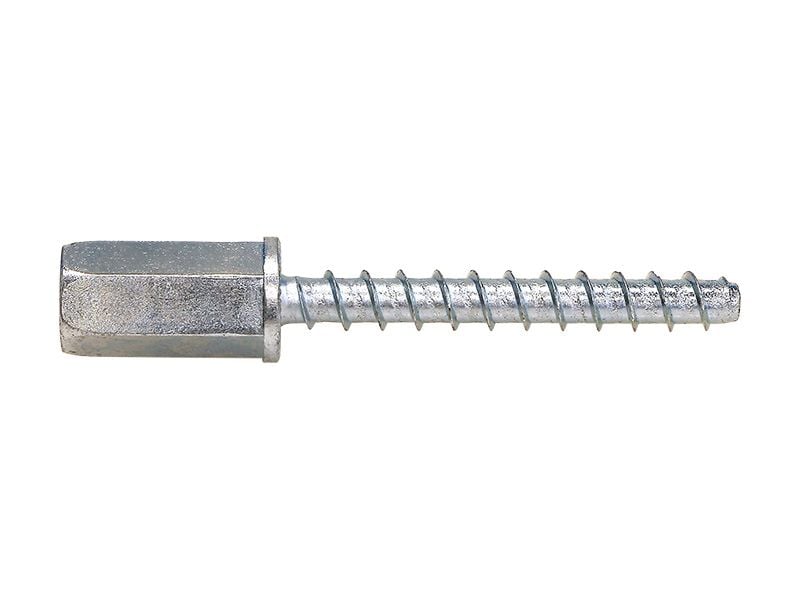

ETA Assessed 6mm Screw-Anchor with dual M8 - M10 Internal Threaded

SAI-Z Threaded Rod Hanger Screw-Anchors

Rod hanger screw-anchors are an simple and effective way to suspend thread rod vertically or horizontally into concrete as required. Ideal for HVAC installation and or architectural hanging features.

  • Dual fit M8 - M10 internal thread – one anchor does both
  • 6mm small diameter anchor – ideal for close to edge fixing
  • Shallow anchor – mechanical anchors can be loaded immediately


Our 6 x 57mm anchor has a ETA assessment and is compliant with the latest NCC standards.

SKU 1SAIZM
Availability:
Pack:
Sub-total: / ex. gst.
Product List
SKU Description Availability List Price Pack
Pack:
More Information
More Information
Delivery Delivery fees apply, see here.
Material Grade Carbon Steel
Coating & Plating Zinc Clear
Head Type Hex Washer
Driver Type Hex Socket
For use with Concrete (cracked), Concrete (un-cracked), Masonry Solid Block, Masonry Hollow Brick
Setting Conditions Hammer Drilling, Close to Edge, Overhead, Removable
Approvals & Documents ETA Certification, Fire Resistance
Compliance AS 5216:2021, Cyclic Loads
Software AFOS® Anchor Design Software
Technical Information

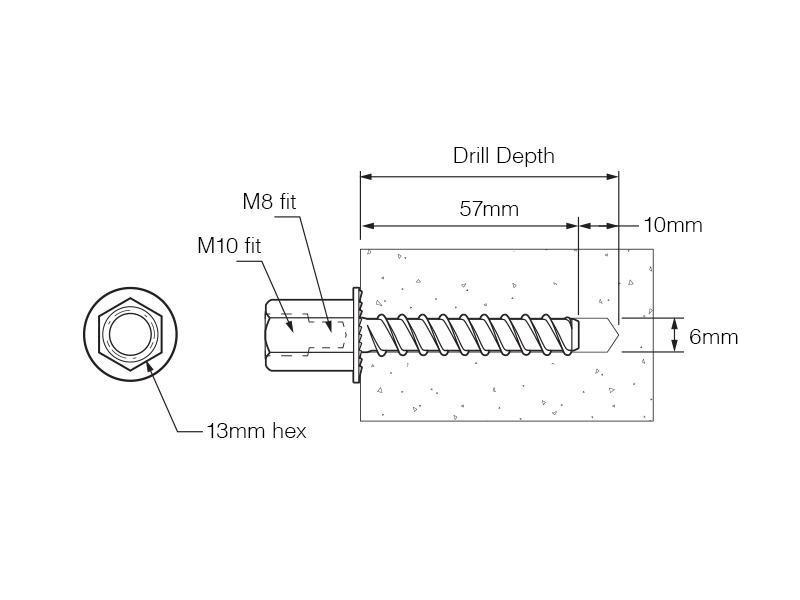

SKU Item Coating Min Embedment Drill Dia Item
1SAIZM0810 M8- M10 / 6 x 57mm Zinc Plated 57mm 6mm 6 x 57mm M8-M10 Dual Fit Thread
