SAB-S Stainless Concrete Screw-Anchors Button Torx 316 (A4)
SAB-S Stainless Concrete Screw-Anchors Button Torx 316 (A4)

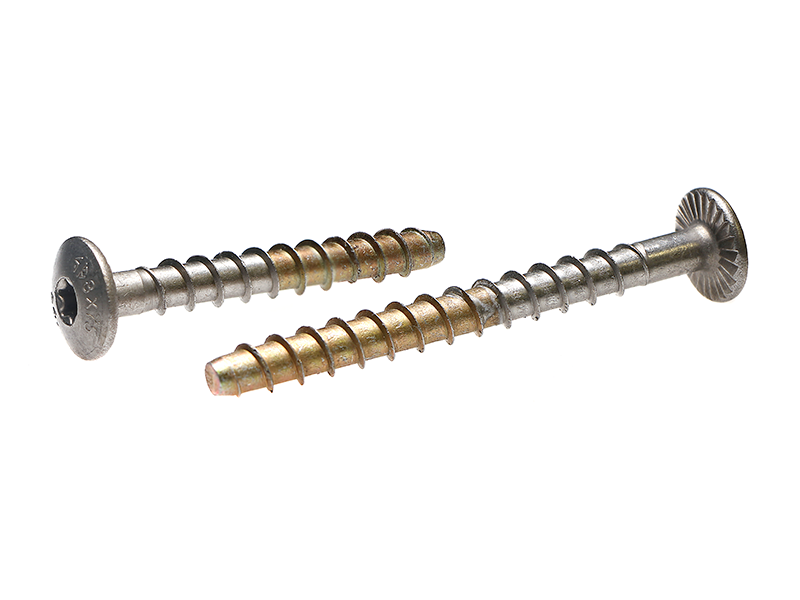

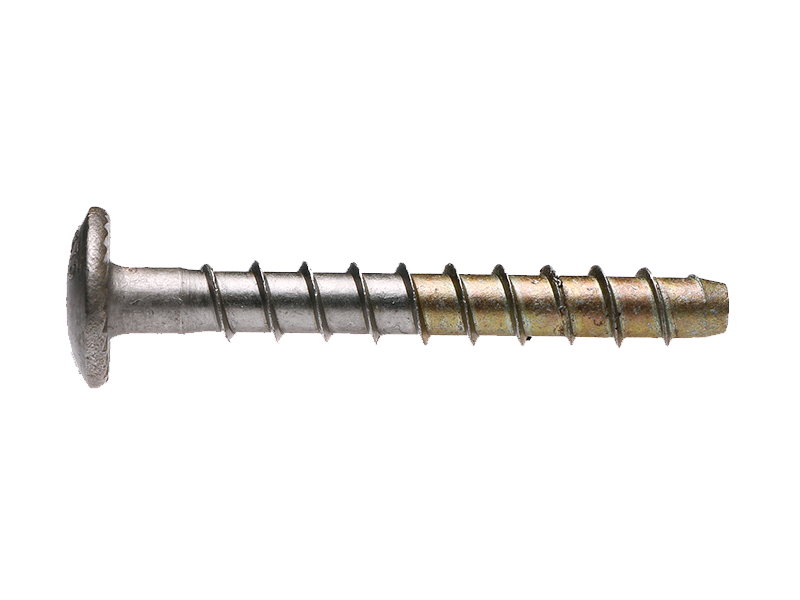

These torx button head stainless screw-anchors out perform other stainless anchor and screw bolts due to there unique bimetal material. The featured hardened carbon-steel tip provides the required performance for the anchor to self thread into hard concrete in pre drilled holes.
Bimetal stainless screw-anchor use 316 (A4) marine grade stainless steel in the loading area making them unique to the Australian market.
- Material composition: 316 (A4) Stainless Steel / Bimetal
- Max Fixture: anchor length less required embedment depth
- Torx drive
We stock the torsion driver bits suitable for impact drivers. Click here to choose an option from the drop-down and add to your cart.
Availability:
Require a Quote?
Instant quotes online are available to all our trade customers using Trade Portal.
Login and simply add items into your cart. View and edit your cart before pressing Submit Quote. Quotes will be available instantly online.
Description
Button Screw-Anchor Head Size:
6mm anchor, head ø = ~16.4mm / head height = ~3.6mm
8mm anchor, head ø = ~21.9mm / head height = ~5.1mm
AS 5216:2021
Tested to AS 5216:2021 to comply with NCC. Refer to the Downloads tab for ETA and TDS documents.
*Recommended maximum fixture thickness (shown under the Technical Information tab) is a general guide to make a robust structural connection for each length. However, this increased ficture thickness is not NCC compliant.
**NCC and AS 5216 compliant maximum fixture thickness
AFOS: Need assistance when designing with NCC compliant anchors? Get the latest software developed for engineers – specify the correct anchors to AS 5216. Click here to find out more.
Product List
| SKU | Description | Availability | List Price | Pack |
|---|---|---|---|---|
| Pack: | ||||
More Information
| Material Grade | 316 Stainless Steel |
|---|---|
| Head Type | Button |
| Driver Type | Torx Bits |
| For use with | Concrete (cracked), Concrete (uncracked), Masonry Solid Block, Masonry Hollow Brick |
| Setting Conditions | Hammer Drilling, Close to Edge, Overhead, Removable |
| Approvals & Documents | ETA Certification |
| Compliance | AS 5216:2026, Cyclic Loads, Seismic C1 |
| Software | AFOS® Anchor Design Software |
Technical Information

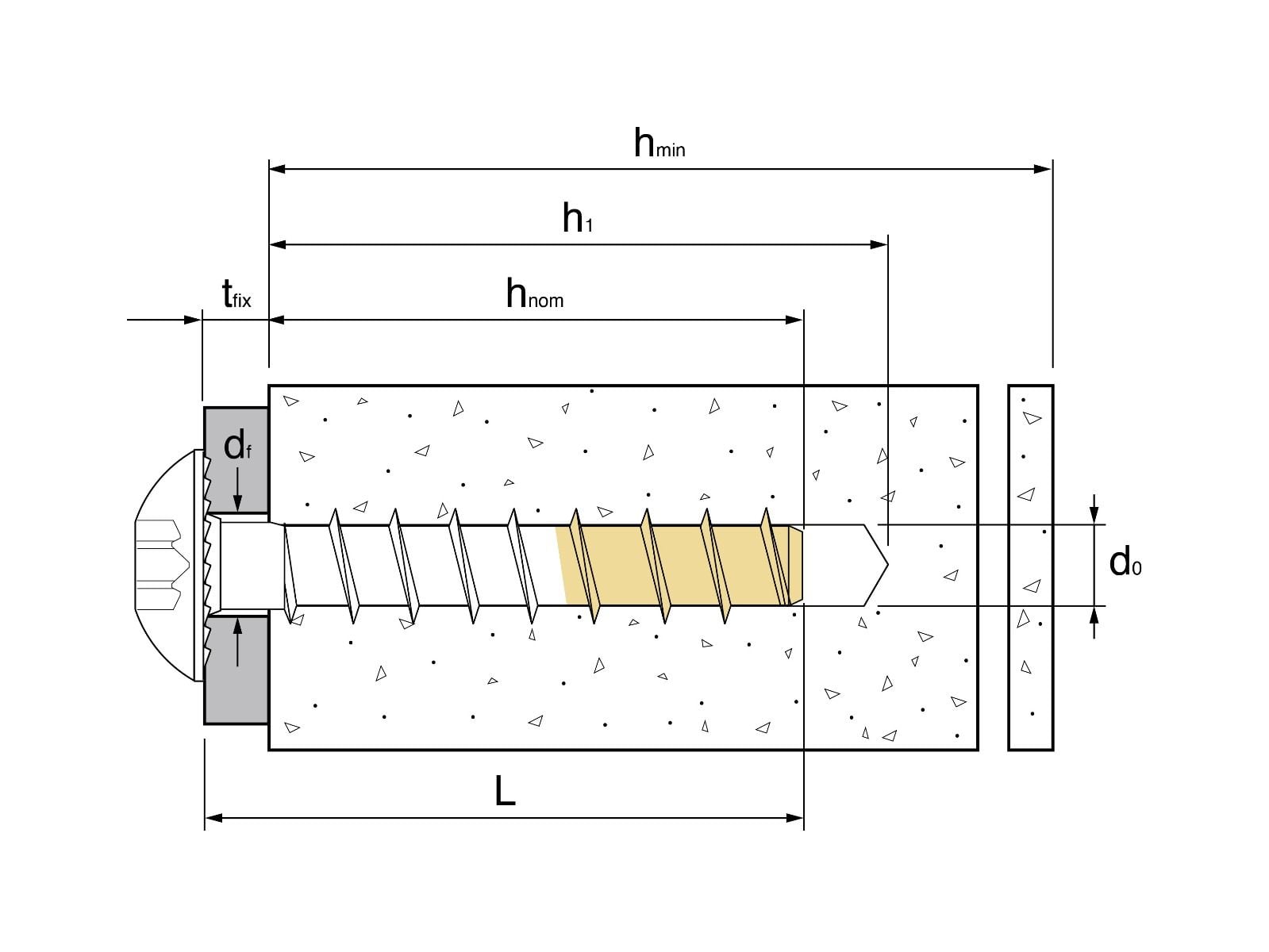

| SKU | Size | NCC Max. Fix** | Prac. Fixture**, tfix | Driver |
|---|---|---|---|---|
| 1041.0060060 | 6 x 60mm SAB-S | - | 10mm | T40 |
| 1041.0060080 | 6 x 80mm SAB-S / NCC | 10mm | 20mm | T40 |
| 1041.0080075 | 8 x 75mm SAB-S | - | 10mm | T45 |
| 1041.0080100 | 8 x 100mm SAB-S / NCC | 15mm | 25mm | T45 |
| 1041.0100090 | 10 x 90mm SAB-S | - | 10mm | T50 |
| 1041.0100125 | 10 x 125mm SAB-S / NCC | 25mm | 40mm | T50 |
