SAB-G Concrete Screw-Anchors Button Torx Galvanised
SAB-G Concrete Screw-Anchors Button Torx Galvanised

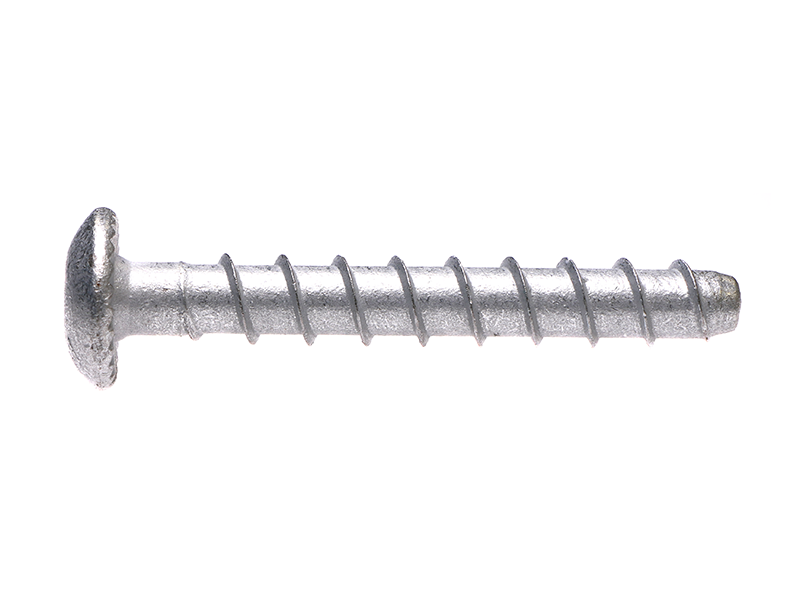

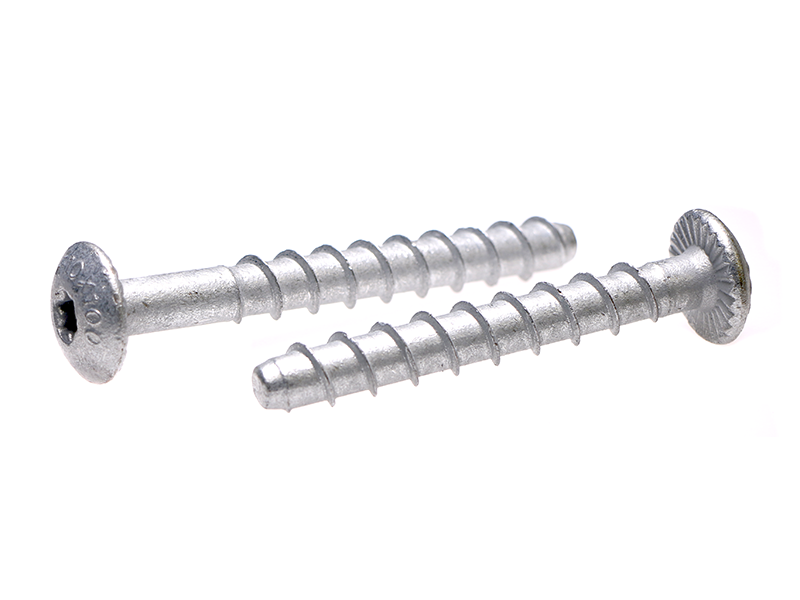

The SAB-G galvanised screw-anchors feature a torx button head. The dual-hardened galvanised carbon-steel provides the required performance for the anchor to self thread into hard concrete in pre drilled holes.

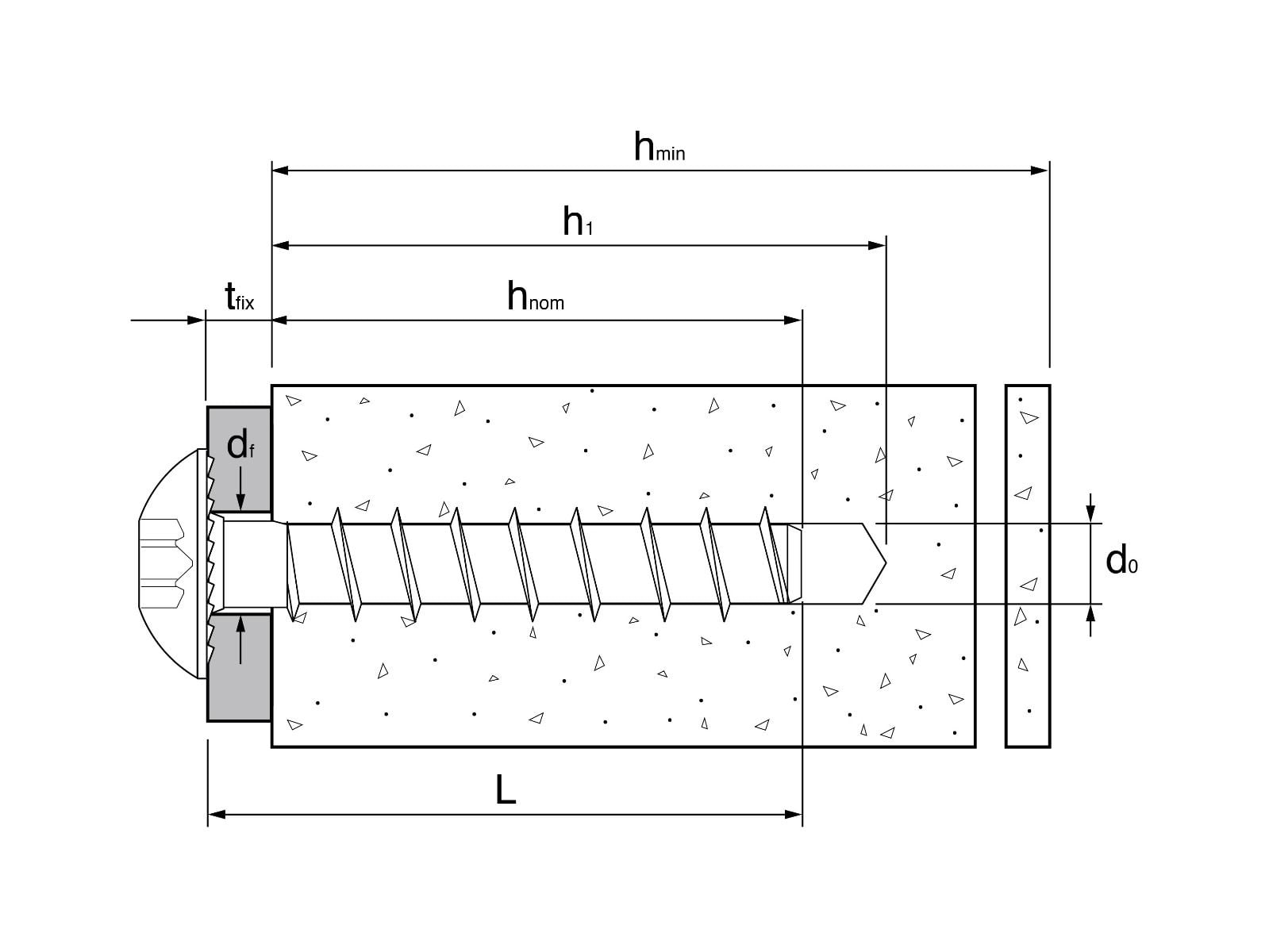

- Max Fixture: anchor length less required embedment depth
- Torx drive
We stock the torsion driver bits suitable for impact drivers. Click here to choose an option from the drop-down and add to your cart.
Availability:
Require a Quote?
Instant quotes online are available to all our trade customers using Trade Portal.
Login and simply add items into your cart. View and edit your cart before pressing Submit Quote. Quotes will be available instantly online.
Description
Button Screw-Anchor Head Size:
6mm anchor, head ø = ~16.4mm / head height = ~3.6mm
8mm anchor, head ø = ~21.9mm / head height = ~5.1mm
10mm anchor, head ø = ~25.0mm / head height = ~6.7mm
AS 5216:2018
Tested to AS 5216:2018 to comply with NCC. Refer to the Downloads tab for ETA and TDS documents.
*Recommended maximum fixture thickness (shown under the Product List tab) is a general guide to make a robust structural connection for each length. However fixture thickness can be increased in many applications. For NCC engineered capacities please refer to technical documentation.
AFOS: Need assistance when designing with NCC compliant anchors? Get the lastest software developed for engineers – specify the correct anchors to AS 5216. Click here to find out more.
Product List
| SKU | Description | Availability | List Price | Pack |
|---|---|---|---|---|
| Pack: |
More Information
| Delivery | SHIPS IN 1 - 2 DAYS |
|---|---|
| Material Grade | Carbon Steel |
| Coating & Plating | Galvanised |
| Head Type | Button |
| Driver Type | Torx Bit |
| For use with | Concrete (cracked), Concrete (un-cracked), Masonry Solid Block, Masonry Hollow Brick |
| Setting Conditions | Hammer Drilling, Close to Edge, Overhead |
| Approvals & Documents | ETA Certification, Fire Resistance |
| Compliance | AS 5216:2021, Cyclic Loads |
| Software | AFOS® Anchor Design Software |
Technical Information
| SKU | Size | Rec Max Fix* | Driver | Item |
|---|---|---|---|---|
| 1040.0060070 | 6 x 70mm SAB-G | 15 mm | T40 | 6 x 70mm SAB-G |
| 1040.0060100 | 6 x 100mm SAB-G | 45 mm | T40 | 6 x 100mm SAB-G |
| 1040.0080080 | 8 x 80mm SAB-G | 25 mm | T45 | 8 x 80mm SAB-G |
| 1040.0080100 | 8 x 100mm SAB-G | 35 mm | T45 | 8 x 100mm SAB-G |
| 1040.0100085 | 10 x 85mm SAB-G | 30 mm | T50 | 10 x 85mm SAB-G |
| 1040.0100100 | 10 x 100mm SAB-G | 40 mm | T50 | 10 x 100mm SAB-G |
