SAC-S Stainless Concrete Screw-Anchors Flat Torx 316 (A4)
SAC-S Stainless Concrete Screw-Anchors Flat Torx 316 (A4)
Stainless Concrete Screw-Anchors are far more superior than other stainless anchor or screw bolt due to the unique bimetal design.

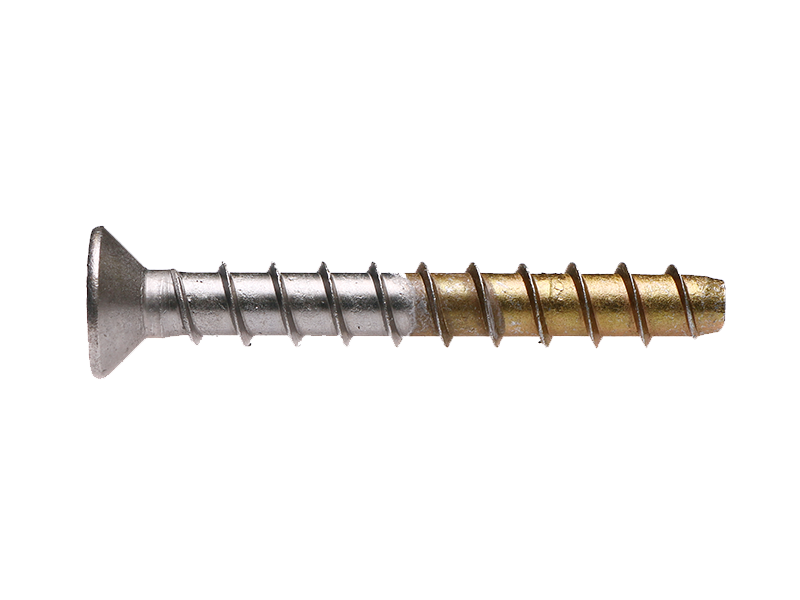

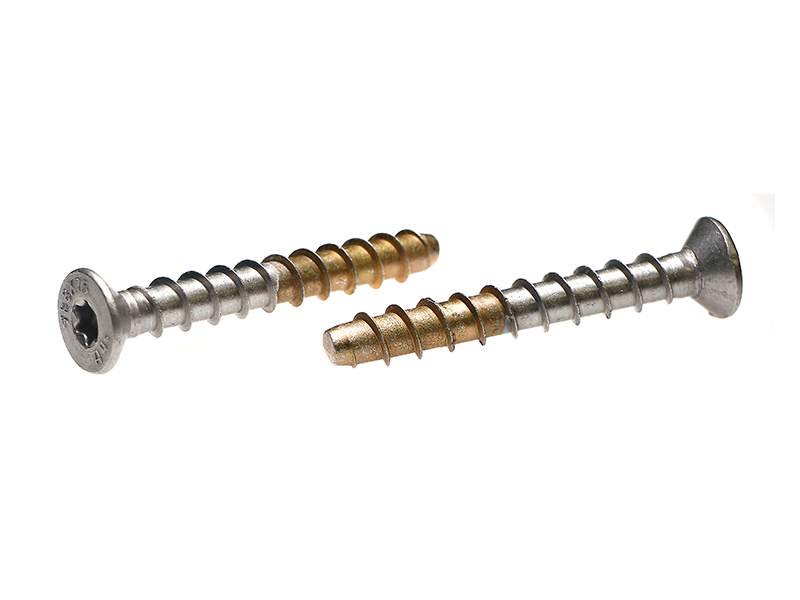

Our stainless screw-anchors uses 316 (A4) marine grade stainless steel in the loading area combined with a hardened carbon-steel tip. The carbon-steel provides the required performance for the anchor to self thread into hard concrete and masonry material in pre drilled holes.
- Material composition: 316 (A4) Stainless Steel / Bimetal

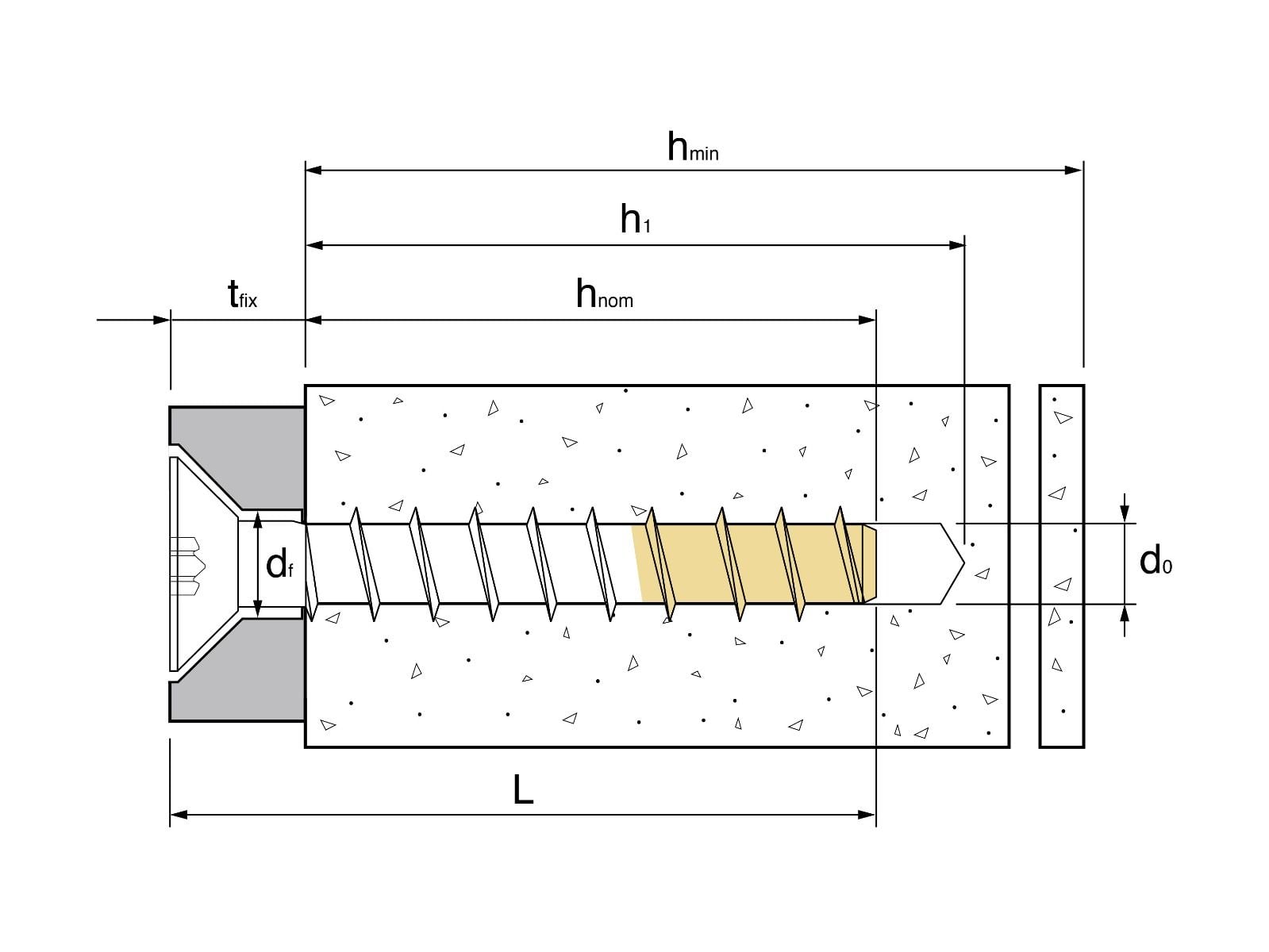

- Max Fixture: anchor length less required embedment depth
- Torx drive
We stock the torsion driver bits suitable for impact drivers. Click here to choose an option from the drop-down and add to your cart.
Availability:
Require a Quote?
Instant quotes online are available to all our trade customers using Trade Portal.
Login and simply add items into your cart. View and edit your cart before pressing Submit Quote. Quotes will be available instantly online.
Description
Countersunk Screw-Anchor Head Size:
6mm anchor, head ø = ~15.6mm
8mm anchor, head ø = ~18.1mm
AS 5216:2018
Tested to AS 5216:2018 to comply with NCC. Refer to the Downloads tab for ETA and TDS documents.
*Recommended maximum fixture thickness (shown under the Product List tab) is a general guide to make a robust structural connection for each length. However fixture thickness can be increased in many applications. For NCC engineered capacities please refer to technical documentation.
AFOS: Need assistance when designing with NCC compliant anchors? Get the lastest software developed for engineers – specify the correct anchors to AS 5216. Click here to find out more.
Product List
| SKU | Description | Availability | List Price | Pack |
|---|---|---|---|---|
| Pack: |
More Information
| Delivery | SHIPS IN 1 - 2 DAYS |
|---|---|
| Material Grade | 316 Stainless Steel |
| Head Type | Countersunk |
| Driver Type | Torx Bit |
| For use with | Concrete (cracked), Concrete (un-cracked), Masonry Solid Block, Masonry Hollow Brick |
| Setting Conditions | Hammer Drilling, Close to Edge, Overhead, Removable |
| Approvals & Documents | ETA Certification, Fire Resistance |
| Compliance | AS 5216:2021, Cyclic Loads |
| Software | AFOS® Anchor Design Software |
Technical Information
| SKU | Size | Rec Max Fix* | Driver | Item |
|---|---|---|---|---|
| 1043.0060060 | 6 x 60mm SAC-S | 10 mm | T40 | 6 x 60mm SAC-S |
| 1043.0060080 | 6 x 80mm SAC-S | 20 mm | T40 | 6 x 80mm SAC-S |
| 1043.0080075 | 8 x 75mm SAC-S | 10 mm | T45 | 8 x 75mm SAC-S |
| 1043.0080100 | 8 x 100mm SAC-S | 25 mm | T45 | 8 x 100mm SAC-S |
| 1043.0100110 | 10 x 110mm SAC-S | 25 mm | T50 | 10 x 110mm SAC-S |
| 1043.0100135 | 10 x 135mm SAC-S | 25 mm | T50 | 10 x 135mm SAC-S |
| 1043.0100150 | 10 x 150mm SAC-S | 25 mm | T50 | 10 x 150mm SAC-S |
