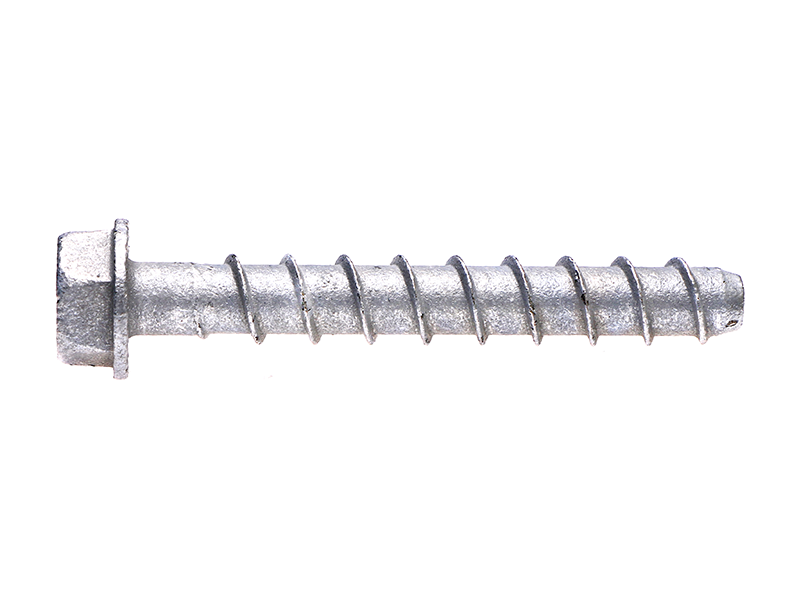

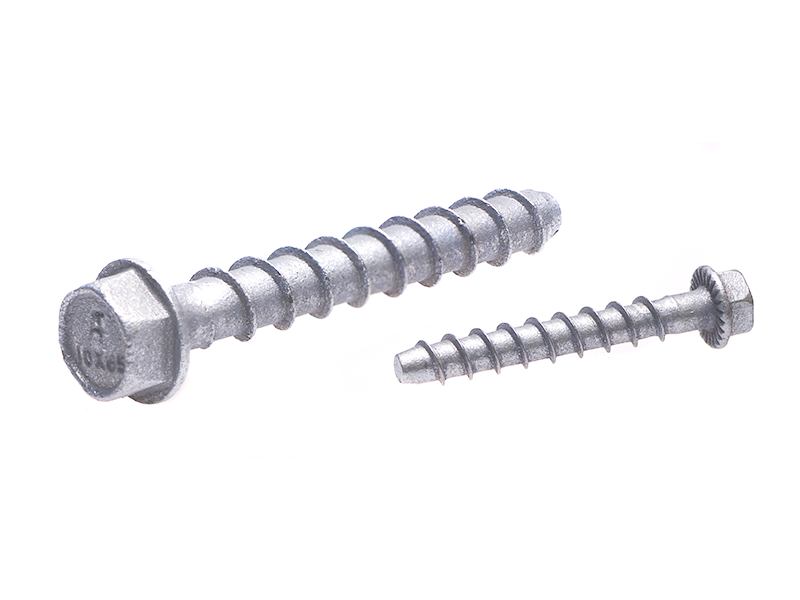

SAH-G Concrete Screw-Anchor Hex Flange Galvanised
SAH-G Concrete Screw-Anchor Hex Flange Galvanised
SAH-G concrete screw-anchor is a totally removable, thread-forming anchor, ideal for either temporary or permanent anchoring into materials such as concrete, brick, hollow brick or block.
The concrete screw-anchor is particularly well suited to close-to-edge or close-to-anchor fixing as it does not expand and burst the surrounding substrate. Features a serrated hex flange head for high clamping force and vibration resistance.

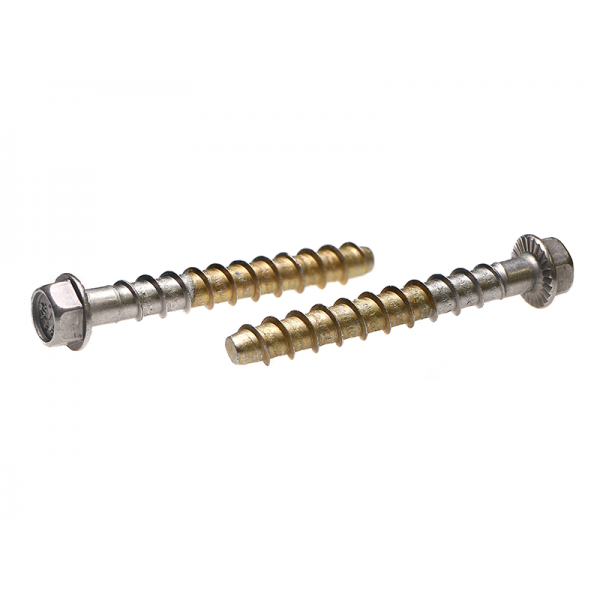

Also available in a stainless steel option.
For convenience 6mm SAH-G screw-anchors can be installed with your 18V impact driver using our specific driver bit, see here.
Availability:
Require a Quote?
Instant quotes online are available to all our trade customers using Trade Portal.
Login and simply add items into your cart. View and edit your cart before pressing Submit Quote. Quotes will be available instantly online.
Description
Design with SAH-G and AFOS® Anchor Design Software
Get the latest software developed for engineers – specify the correct anchors to AS 5216. Click here to find out more.
AS 5216:2021
Tested to AS 5216:2021 to comply with NCC. Refer to the Downloads tab for ETA and TDS documents.
*Recommended maximum fixture thickness (shown under the Technical Information) is a general guide to make a robust structural connection for each length. However, this increased fixture thickness is not NCC compliant.
**NCC and AS 5216 compliant maximum fixture thickness
Product List
| SKU | Description | Availability | List Price | Pack |
|---|---|---|---|---|
| Pack: | ||||
More Information
| Material Grade | Carbon Steel |
|---|---|
| Coating & Plating | Galvanised |
| Head Type | Hex Flange |
| Driver Type | Hex 1/2'' Socket Bit |
| For use with | Concrete (cracked), Concrete (uncracked), Masonry Solid Block, Masonry Hollow Brick |
| Setting Conditions | Hammer Drilling, Close to Edge, Overhead, Removable |
| Approvals & Documents | ETA Certification |
| Compliance | AS 5216:2026, Cyclic Loads, Seismic C1 |
| Software | AFOS® Anchor Design Software |
Technical Information

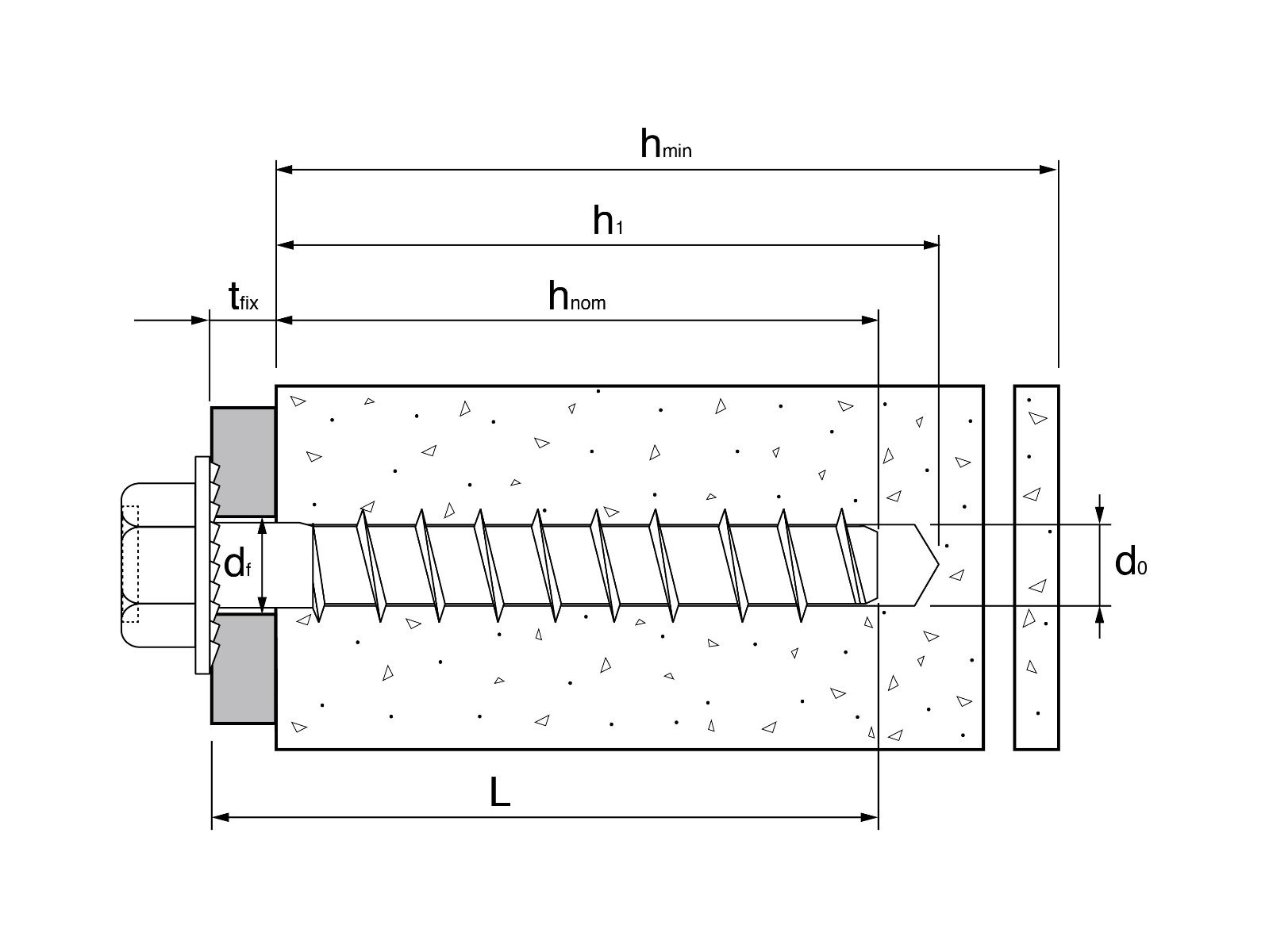

| SKU | Dia. x Length | NCC Max. Fix** | Prac. Fixture**, tfix | Socket Size |
|---|---|---|---|---|
| 1047.0060050 | 6 x 50mm SAH-G | - | 10mm | 10mm |
| 1047.0060075 | 6 x 75mm SAH-G / NCC | 20mm | 20mm | 10mm |
| 1047.0060100 | 6 x 100mm SAH-G / NCC | 45mm | 45mm | 10mm |
| 1047.0080060 | 8 x 60mm SAH-G | - | 10mm | 13mm |
| 1047.0080075 | 8 x 75mm SAH-G / NCC | 10mm | 20mm | 13mm |
| 1047.0080100 | 8 x 100mm SAH-G / NCC | 35mm | 35mm | 13mm |
| 1047.0100060 | 10 x 60mm SAH-G | - | 10mm | 17mm |
| 1047.0100075 | 10 x 75mm SAH-G | - | 20mm | 17mm |
| 1047.0100085 | 10 x 85mm SAH-G / NCC | 10mm | 30mm | 17mm |
| 1047.0100100 | 10 x 100mm SAH-G / NCC | 25mm | 40mm | 17mm |
| 1047.0100120 | 10 x 120mm SAH-G / NCC | 45mm | 55mm | 17mm |
| 1047.0100150 | 10 x 150mm SAH-G / NCC | 75mm | 80mm | 17mm |
| 1047.0120075 | 12 x 75mm SAH-G | - | 10mm | 19mm |
| 1047.0120100 | 12 x 100mm SAH-G / NCC | 5mm | 30mm | 19mm |
| 1047.0120125 | 12 x 125mm SAH-G / NCC | 30mm | 50mm | 19mm |
| 1047.0120150 | 12 x 150mm SAH-G / NCC | 55mm | 65mm | 19mm |
| 1047.0160100 | 16 x 100mm SAH-G | - | 35mm | 24mm |
| 1047.0160150 | 16 x 150mm SAH-G | - | 55mm | 24mm |
