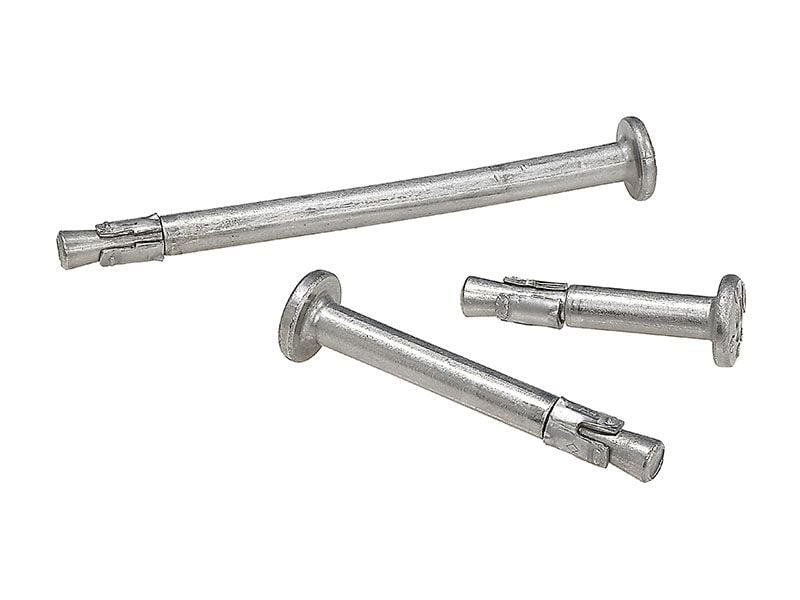

NK-S nail in anchor range from 39mm to 89mm

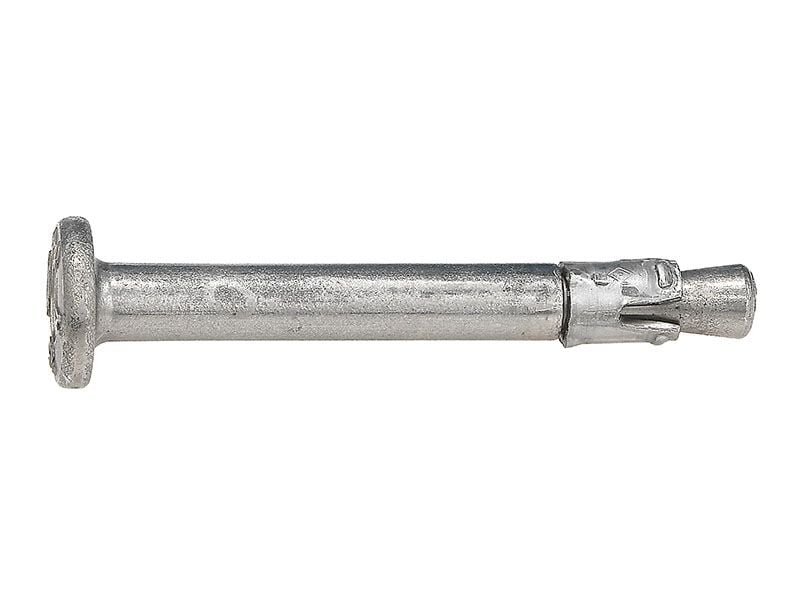

NK-S Nailhead Anchor 316/A4 Stainless Steel

Easy to install the NK-S are a small nail in anchor designed with the same advantages of larger wedge anchors. Simply hammer in and the wedge expansion clip takes effect as the load is applied. No torque is required, these anchors are installed through the fixture and ideal for for shallow embedment.

A shallower embedment reduces drilling the effort required and the concrete base material is minimal. MK-S anchors are ETA assessed for redundant fastening in both cracked and un-cracked concrete.

NK-S 316 stainless steel nail anchors can be installed where exposure to extreme environments can occur.

SKU 1NHAS

Availability:

Pack:

Buy

Sub-total: / ex. gst.

Grouped product items
Product Name	Qty
6 x 39mm NK-S Nailhead Anchor 316/A4 Stainless Steel From $477.80
6 x 44mm NK-S Nailhead Anchor 316/A4 Stainless Steel From $499.00
6 x 49mm NK-S Nailhead Anchor 316/A4 Stainless Steel From $519.40
6 x 54mm NK-S Nailhead Anchor 316/A4 Stainless Steel From $539.80
6 x 59mm NK-S Nailhead Anchor 316/A4 Stainless Steel From $559.50
6 x 69mm NK-S Nailhead Anchor 316/A4 Stainless Steel From $578.50
6 x 89mm NK-S Nailhead Anchor 316/A4 Stainless Steel From $316.20

Build A Quote?

Store Item

SKU:

Description

Advantages

Fast and simple anchor for cracked concrete
ETA assessed for redundant anchoring
Reduced anchoring depths of 25mm possible
Very small edge distances and spacing

Use For

Suspended ceiling installation
HVAC pipping and service installation
Facade and cladding applications using metal frames or light steel channel
Installation of cable trays
Installation of lighting fixtures

Physical Characteristics

Head OD: 12mm
Head Height: 3mm
Anchor Diameter: 6mm

Installation

Drill diameter: 6mm
Standard drill depth: 40mm
Reduced drill depth: 35mm
Diameter of clearance in fixture: 7mm
Minimum concrete thickness: 80mm

Dust and debris must be cleared from the hole either by blowing out or with a vacuum.

Installation parameters a general in advice. For complaint installation of anchors refer to ETA assessment and or drawings prepared by an engineer for loads to be fastened.

* 6 x 39mm fixture thickness based on reduced drill depth permitted only for use with structures subject to dry internal conditions. Please refer to the ETA document for standard and reduced anchorage depths.

Product List

SKU	Description	Availability	List Price	Pack
				Pack:

More Information

More Information
Material Grade	316 Stainless Steel
Coating & Plating	Plain / Unplated
Head Type	Flat Top
Diameter / Gauge	6.0mm
For use with	Concrete (cracked), Concrete (un-cracked)
Setting Conditions	Dustless Drilling, Hammer Drilling, Close to Edge, Overhead, Through Fixture
Approvals & Documents	ETA Certification, Fire Resistance
Use for	Facade & Cladding, Handrails & Balustrade, HVAC

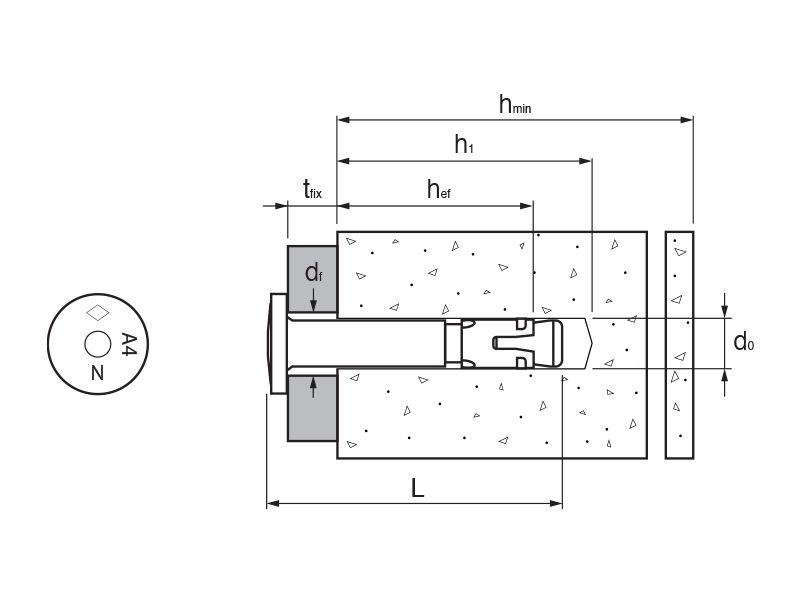

Technical Information

SKU	Dia x Length	Fixture, tfix	Drill Dia x Depth	Min. Material Thickness
1NHAS06039	6 x 39mm NK-S	5mm*	6 x 35mm	80mm
1NHAS06044	6 x 44mm NK-S	5mm	6 x 40mm	80mm
1NHAS06049	6 x 49mm NK-S	10mm	6 x 40mm	80mm
1NHAS06054	6 x 54mm NK-S	15mm	6 x 40mm	80mm
1NHAS06059	6 x 59mm NK-S	20mm	6 x 40mm	80mm
1NHAS06069	6 x 69mm NK-S	30mm	6 x 40mm	80mm
1NHAS06089	6 x 89mm NK-S	50mm	6 x 40mm	80mm
