AS 5216:2018 Compliant Internal Thread Screw-Anchor

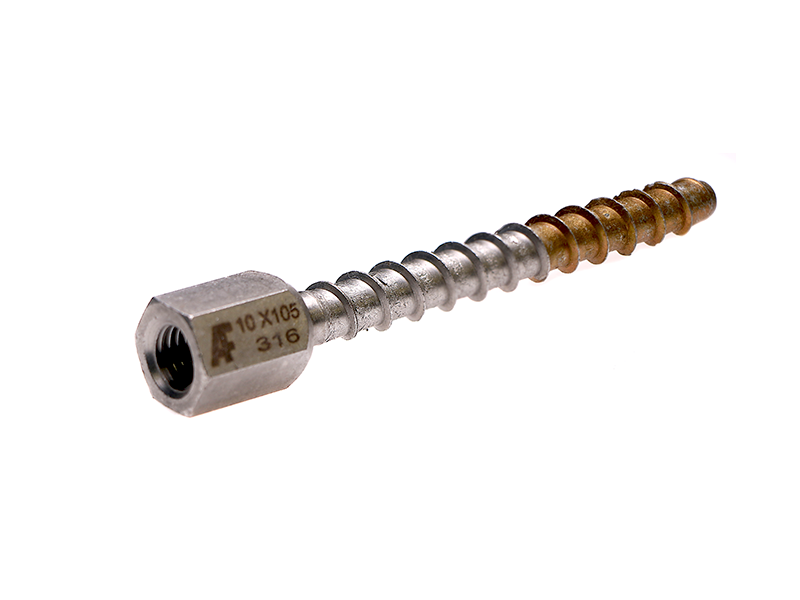

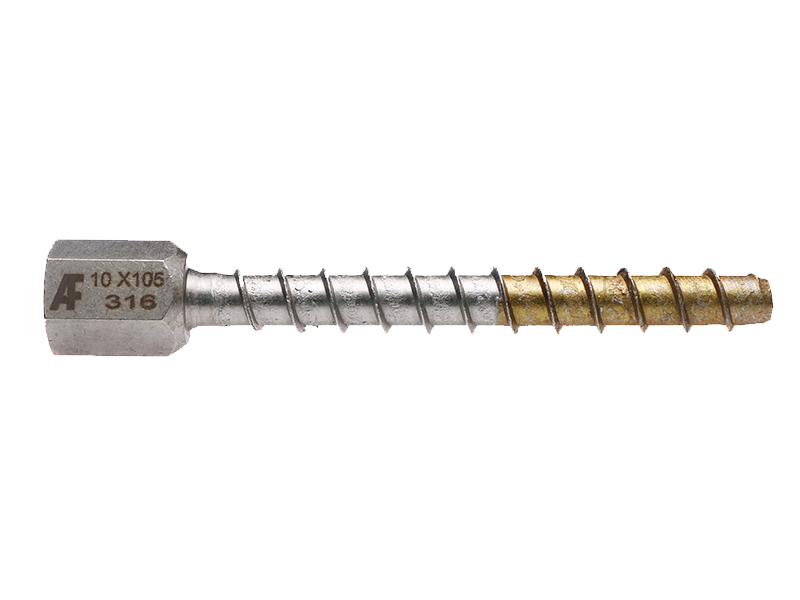

SAS-S Tonnel Anchor™ 316 Stainless
An innovative internally threaded anchor for all rod-hanging applications in concrete. The Tonnel Anchor is easily installed, has the corrosion protection of marine grade (316) stainless steel – and out performs standard steel anchors.
- Reduces in-place costs and minimizes installation steps over conventional anchors
- Ideal for use in highly corrosive environments such as HVAC and pipe suspension systems
- Achieve higher tension loads per anchor compared with conventional zinc vertigo or threaded rod anka screws
- M12 internally thread for direct attachment of threaded rod
- Easily installed in all over-head, vertical application
Availability:
Require a Quote?
Instant quotes online are available to all our trade customers using Trade Portal.
Login and simply add items into your cart. View and edit your cart before pressing Submit Quote. Quotes will be available instantly online.
Description

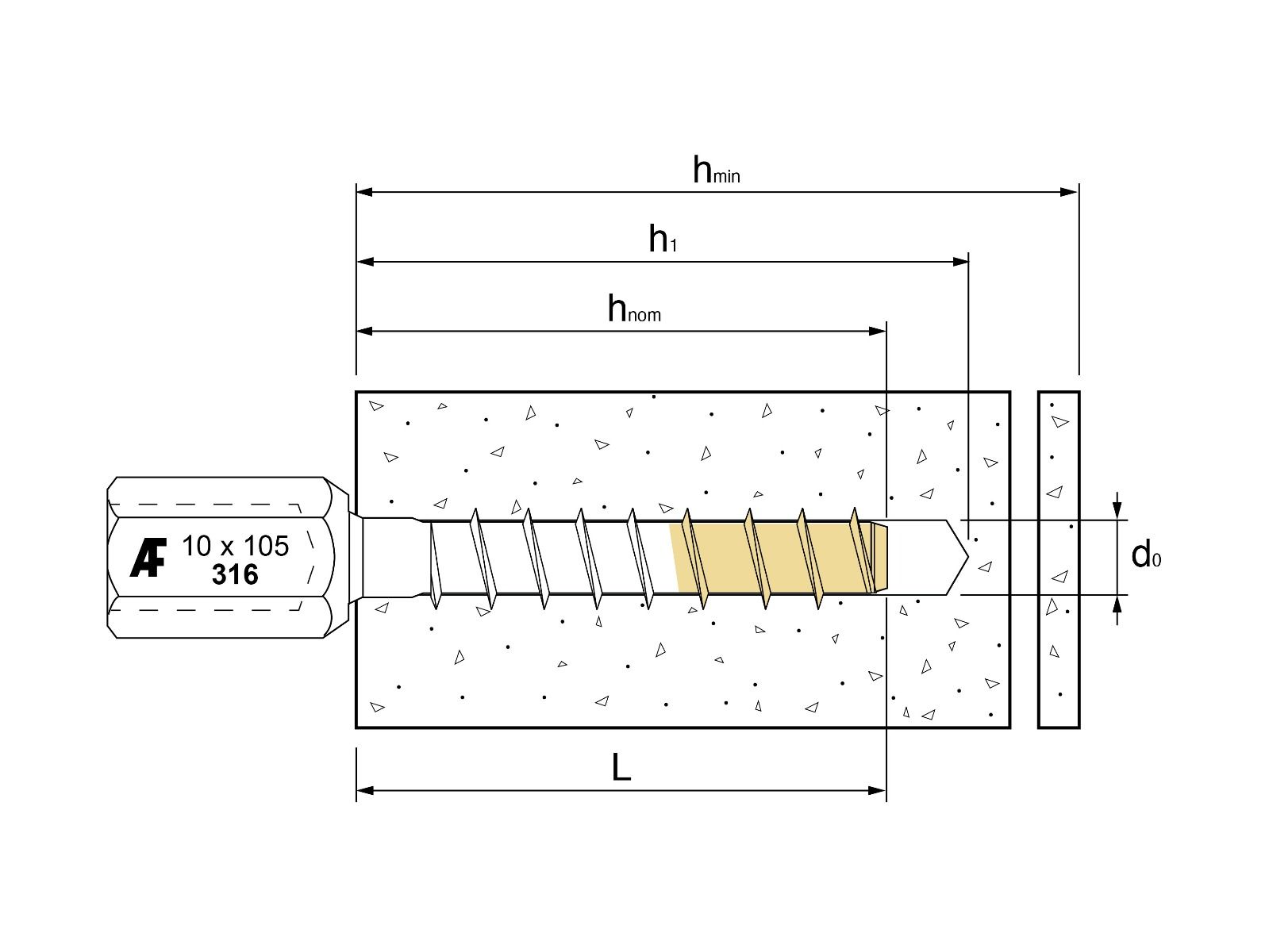

Key Technical Data
- Drill diameter: 10mm
- Min. embedment: 70mm
- Socket size: 19mm
- Material: bimetal 316 stainless steel
- Environment: Indoor, outdoor and coastal
Product List
| SKU | Description | Availability | List Price | Pack |
|---|---|---|---|---|
| Pack: |
More Information
| Material Grade | 316 Stainless Steel |
|---|---|
| Coating & Plating | Plain / Unplated |
| Head Type | Internally Threaded |
| Driver Type | Hex Sockets |
| For use with | Concrete (cracked), Concrete (un-cracked), Masonry Solid Block, Masonry Hollow Brick |
| Setting Conditions | Hammer Drilling, Close to Edge, Overhead, Removable |
| Approvals & Documents | ETA Certification, Fire Resistance |
| Compliance | AS 5216:2021, Cyclic Loads |
| Software | AFOS® Anchor Design Software |
Technical Information
| SKU | Item | Material | Min. Embedment | Drill Dia. | Item |
|---|---|---|---|---|---|
| 1052.0100105 | M12/10 x 105mm | 316 Bimetal | 70mm | 10mm | M12/10 x 105mm |
