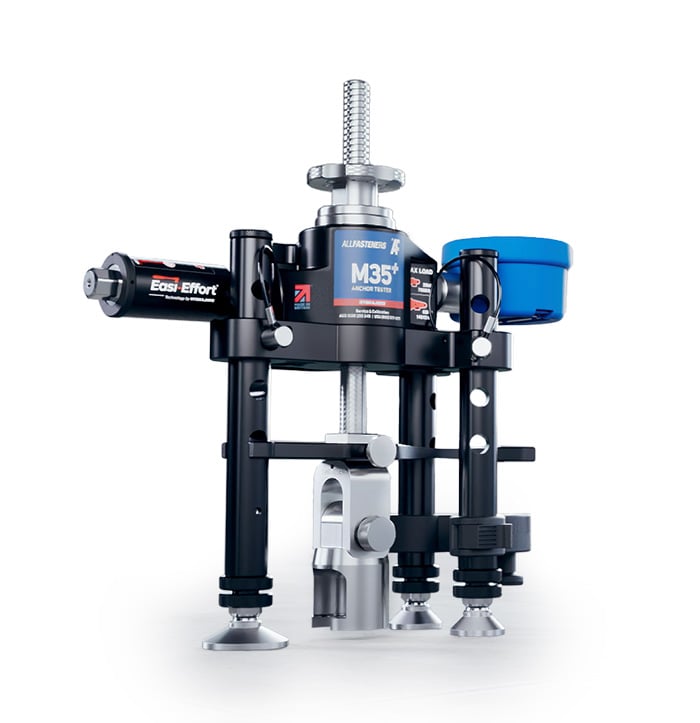

Hydrajaws® M35+ Dual Load Capacity Tester available at Allfasteners

New Product

Lightweight. Expandable. Modular Kit.

First of it's kind the Hydrajaws M35+ Dual Load Capacity Pull Tester can test anchors up-to 35kN as standard. The modular design and Easi-Effort® technology allows anchor tests up-to a further 65kN easily with configurable bridge options.

A single tool with expandable capacity up-to 65Kn to test studs and anchors from M6 to M30.

Level-Up

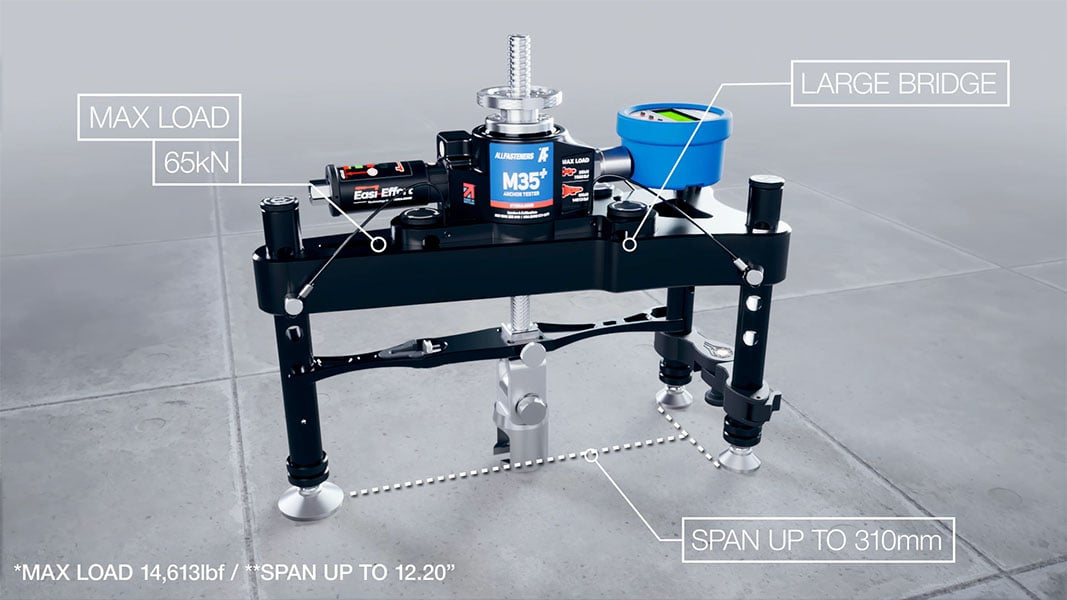

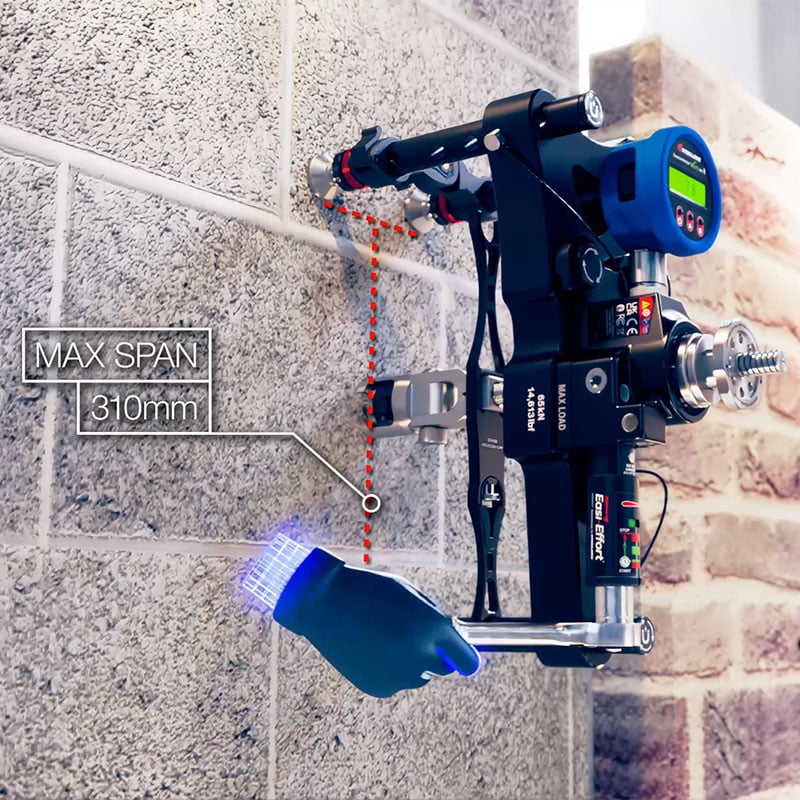

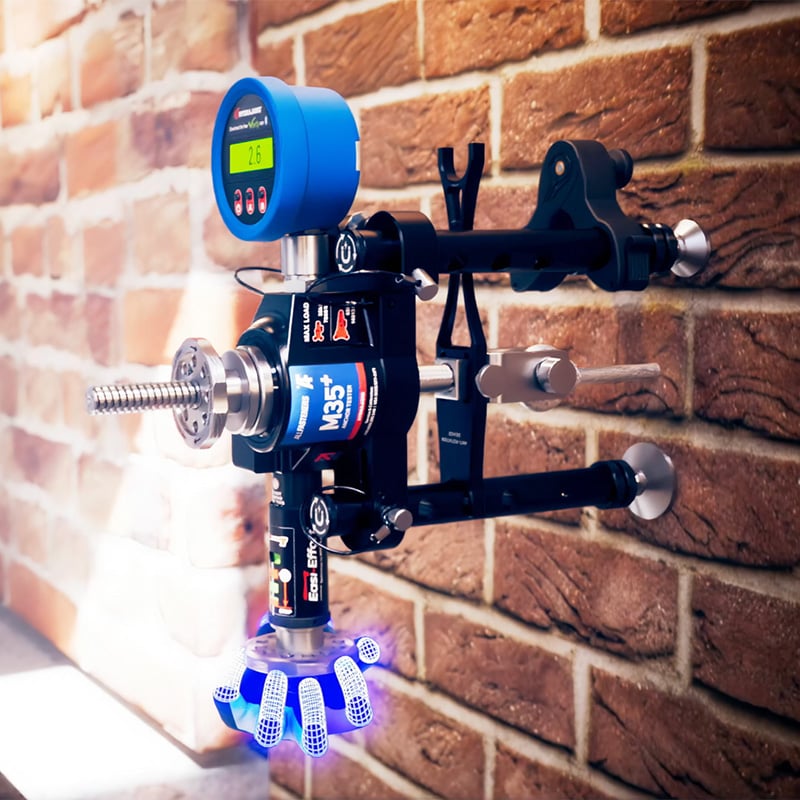

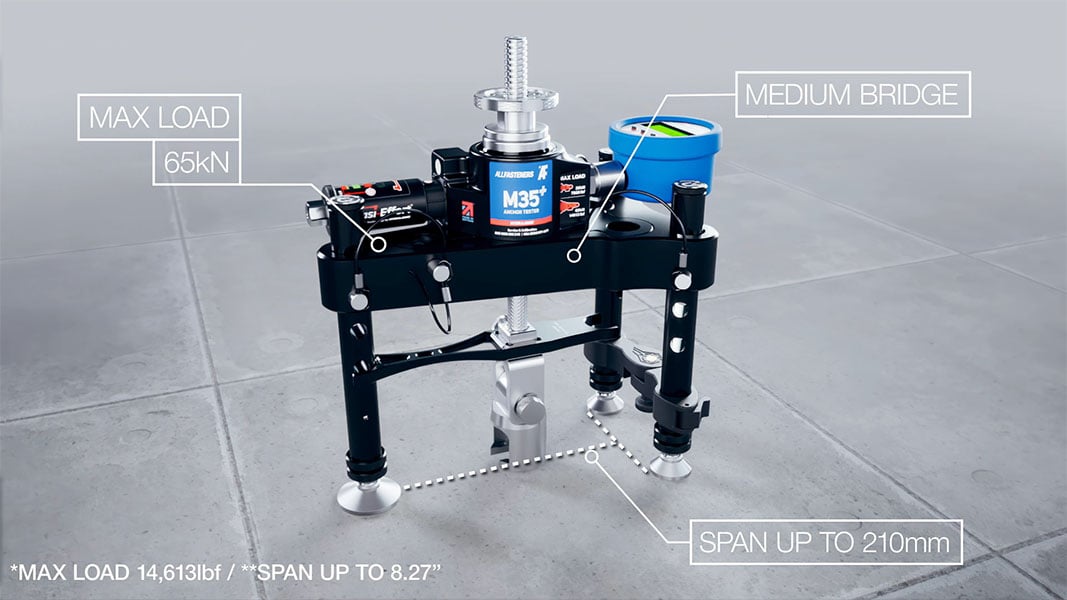

Increase footprint and load capacity with additional medium and large bridge options – all within a single testing unit.

Hydrajaws® M35+ Key Features:

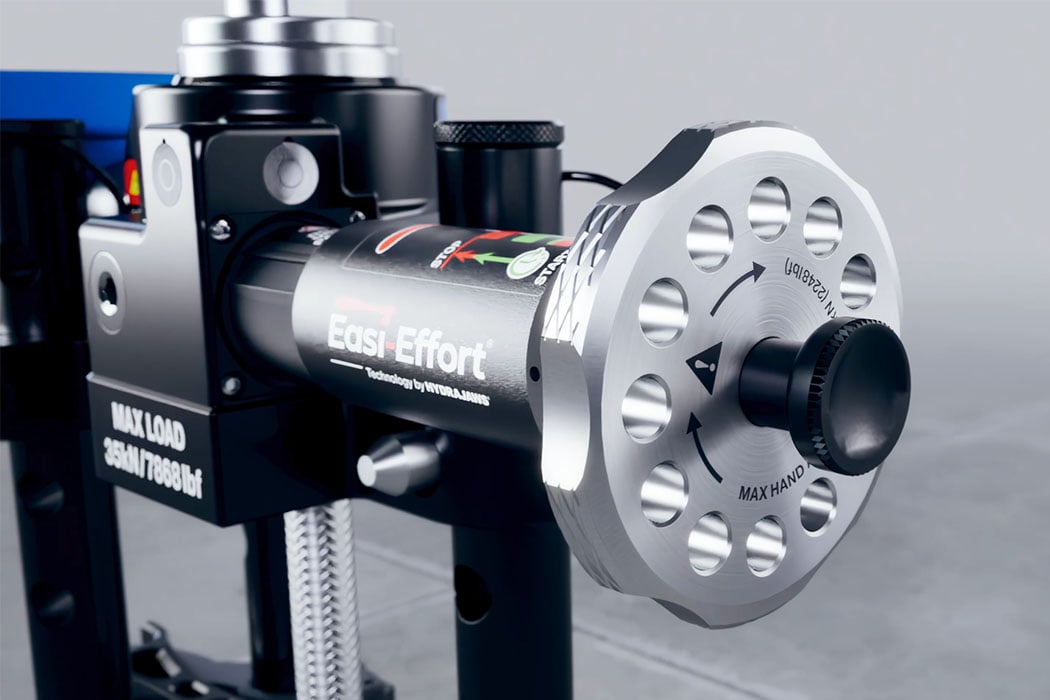

Easi-Effort® Technology

The Hydrajaws M35+ introduces cutting-edge ‘Easi-Effort®’ technology, setting a new standard in the efficiency of applying torque for mechanical anchor pull testing.

Requiring nearly a quarter of the effort compared* to it's counterpart models, a maximum torque of 9.8Nm and 18.8Nm is applied to test up-to 35kN and 65kN respectively.

An innovative and user-friendly solution for professionals in the field of anchor testing minimising operator fatigue and maximising the output of every test.

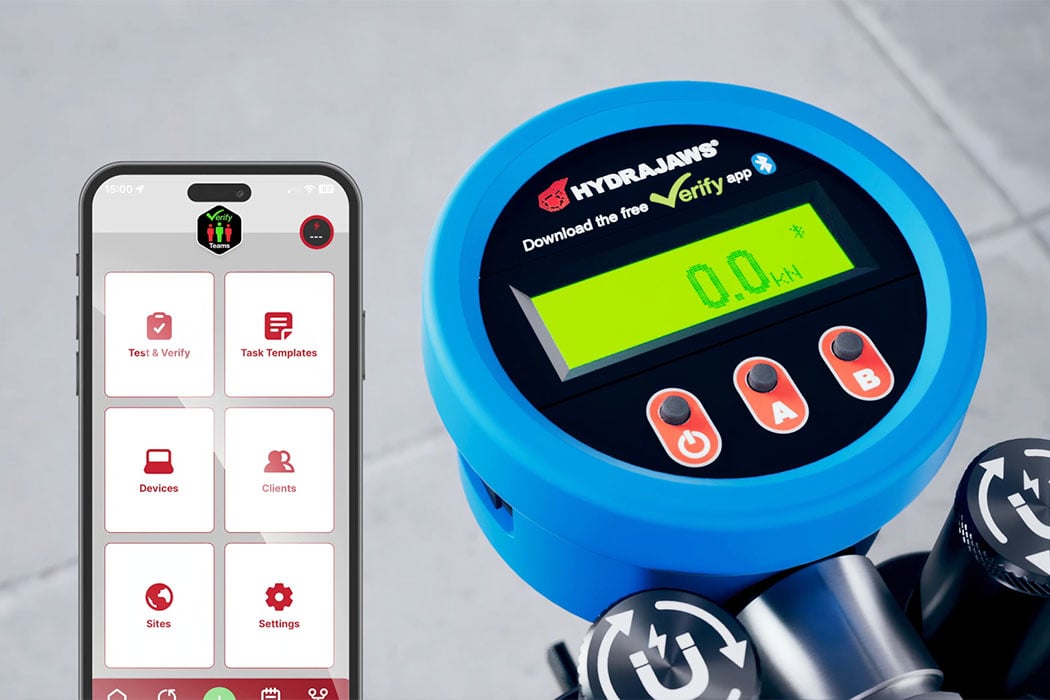

Verify PRO Mobile App

Equipped with state-of-the-art data logging capabilities, the M35+ allows for real-time monitoring and tracking of pull testing results via the free-to-use app.

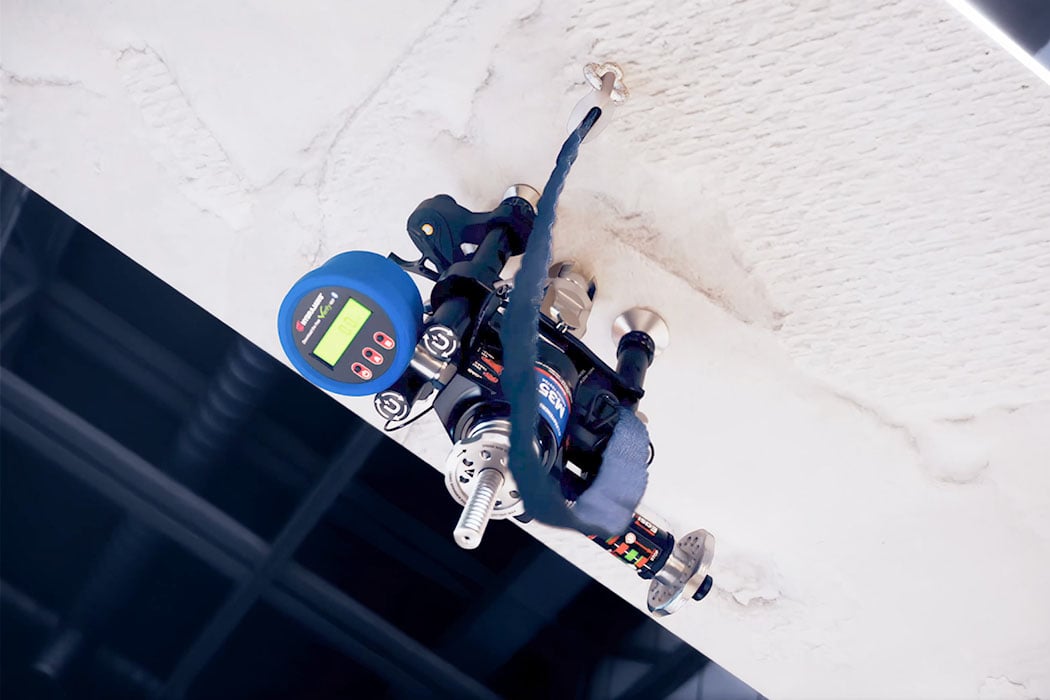

Lightweight. Built Tough.

Light, compact and engineered for easy transportation. Made from high-grade steel and titanium the Hydrajaws M35+ is the most lightweight tester on the market today – the complete standard kit setup weighing only 4.9kg.

Carry out precision testing to the most challenging and remote job sites.

For reliability, accuracy and consistency, think Hydrajaws® Australia

Stay ahead of the game with Hydrajaws® M35+ kit an essential tool for carrying out testing procedures in line with personal fall protection, scaffold ties, proof and ultimate anchor testing on site.

For any enquiries about Hydrajaws products and servicing, get in touch with us today.

JGID Rope Access Challenge 2024

Over four weekends over four states Australia's best rope access technicians battle it out for top spot showcasing their skills, equipment and material handling technique.

See the Hydrajaws M35+ in action in Sydney, Melbourne, Brisbane and Perth. For dates see the JGIDrac.com.au website.

*Reduction in required effort compared to its counterpart, the Hydrajaws M2050. While the M2050 demands 68Nm at 50kN, the M35+ achieves comparable results with nearly a quarter of the torqueing effort with a maximum torque of 9.8Nm at 35kN and 18.8Nm at 65kN.

Hydrajaws® M35+ Dual Load Capacity Tester
