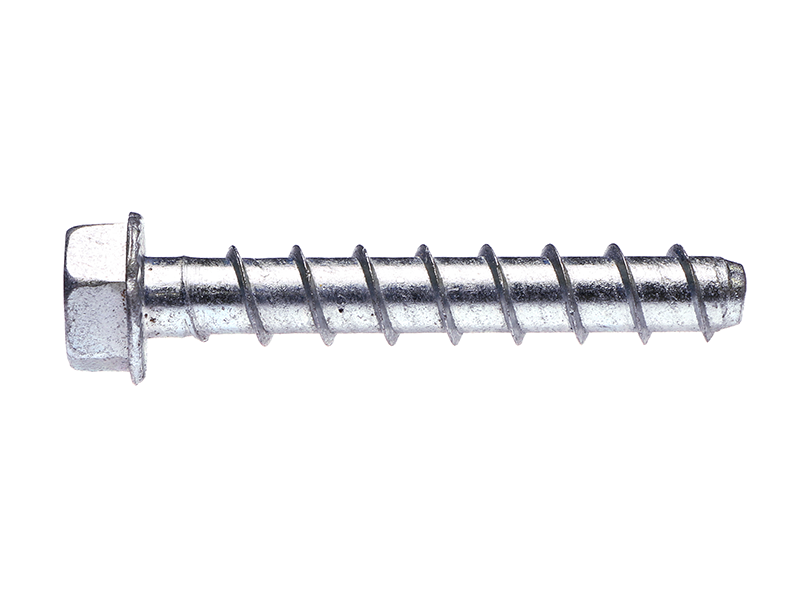

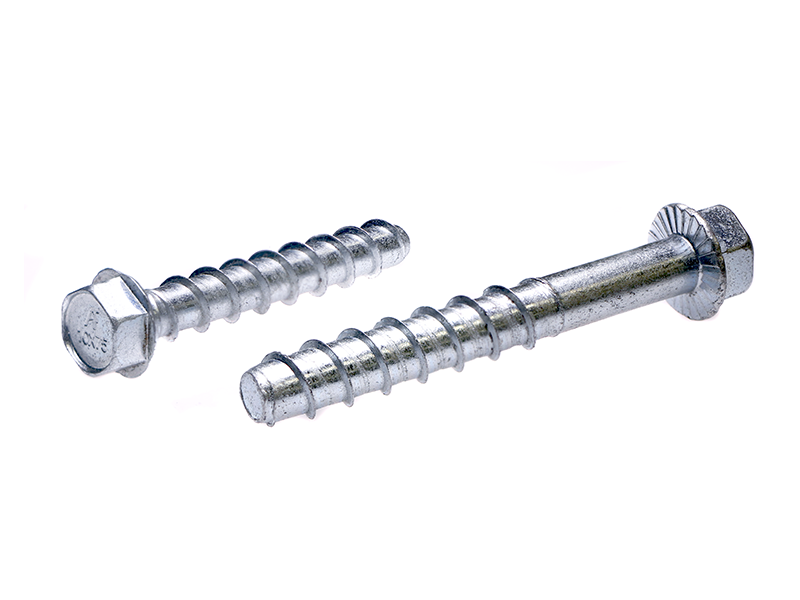

SAH-Z Concrete Screw-Anchor Hex Flange Zinc
SAH-Z Concrete Screw-Anchor Hex Flange Zinc
Concrete Screw-Anchor are a totally removable, thread forming anchor, ideal for either temporary or permanent anchoring into materials such as concrete, brick, hollow brick or block.
The Concrete Screw-Anchor is particularly well suited to close-to-edge or close-to-anchor fixing as it does not expand and burst the surrounding substrate. Features a serrated Hex Flange Head for high clamping force and vibration resistance.
Availability:
Require a Quote?
Instant quotes online are available to all our trade customers using Trade Portal.
Login and simply add items into your cart. View and edit your cart before pressing Submit Quote. Quotes will be available instantly online.
Description
Get the Most out of Your Concrete Screw Anchors
AS 5216:2018
Tested to AS 5216:2018 to comply with NCC. Refer to the Downloads tab for ETA and TDS documents.

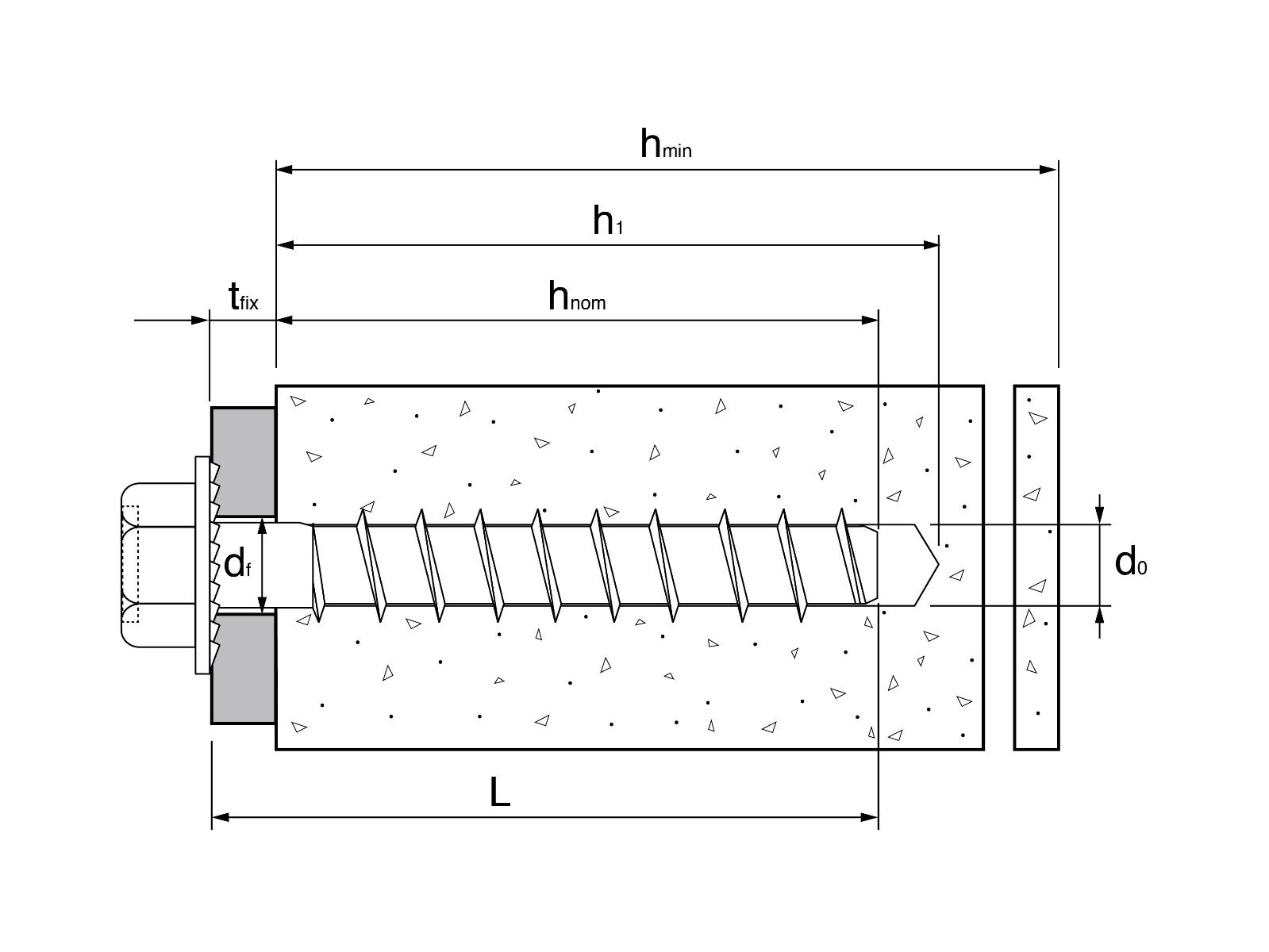

*Recommended maximum fixture thickness (shown under the Product List tab) is a general guide to make a robust structural connection for each length. However fixture thickness can be increased in many applications. For NCC engineered capacities please refer to technical documentation.
AFOS: Need assistance when designing with NCC compliant anchors? Get the latest software developed for engineers – specify the correct anchors to AS 5216. Click here to find out more
Product List
| SKU | Description | Availability | List Price | Pack |
|---|---|---|---|---|
| Pack: |
More Information
| Delivery | SHIPS IN 1 - 2 DAYS |
|---|---|
| Material Grade | Carbon Steel |
| Head Type | Hex Washer |
| Driver Type | Hex Sockets |
| For use with | Concrete (cracked), Concrete (un-cracked), Masonry Solid Block, Masonry Hollow Brick |
| Setting Conditions | Hammer Drilling, Close to Edge, Overhead |
| Approvals & Documents | ETA Certification, Fire Resistance |
| Compliance | AS 5216:2021, Cyclic Loads |
| Software | AFOS® Anchor Design Software |
Technical Information
| SKU | Dia. x Length | Rec Max Fix* | Socket Size | Description |
|---|---|---|---|---|
| 1049.0080060 | 8 x 60mm SAH-Z | 10 mm | 13mm | 8 x 60mm SAH-Z |
| 1049.0080075 | 8 x 75mm SAH-Z | 20 mm | 13mm | 8 x 75mm SAH-Z |
| 1049.0080100 | 8 x 100mm SAH-Z | 35 mm | 13mm | 8 x 100mm SAH-Z |
| 1049.0100060 | 10 x 60mm SAH-Z | 10 mm | 17mm | 10 x 60mm SAH-Z |
| 1049.0100075 | 10 x 75mm SAH-Z | 20 mm | 17mm | 10 x 75mm SAH-Z |
| 1049.0100100 | 10 x 100mm SAH-Z | 40 mm | 17mm | 10 x 100mm SAH-Z |
| 1049.0100120 | 10 x 120mm SAH-Z | 55 mm | 17mm | 10 x 120mm SAH-Z |
| 1049.0120075 | 12 x 75mm SAH-Z | 10 mm | 19mm | 12 x 75mm SAH-Z |
| 1049.0120100 | 12 x 100mm SAH-Z | 30 mm | 19mm | 12 x 100mm SAH-Z |
| 1049.0120150 | 12 x 150mm SAH-Z | 65 mm | 19mm | 12 x 150mm SAH-Z |
