SAH-S Stainless Concrete Screw-Anchors Hex Flange 316 (A4)
SAH-S Stainless Concrete Screw-Anchors Hex Flange 316 (A4)

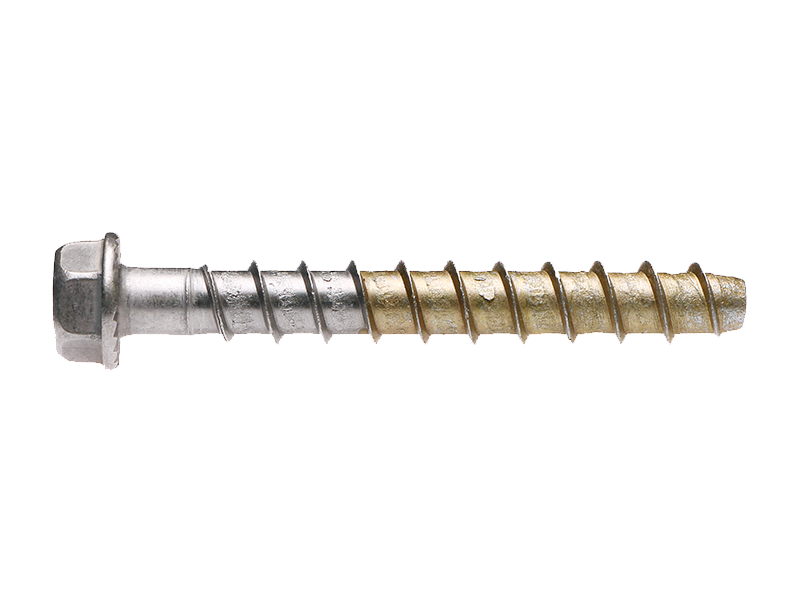

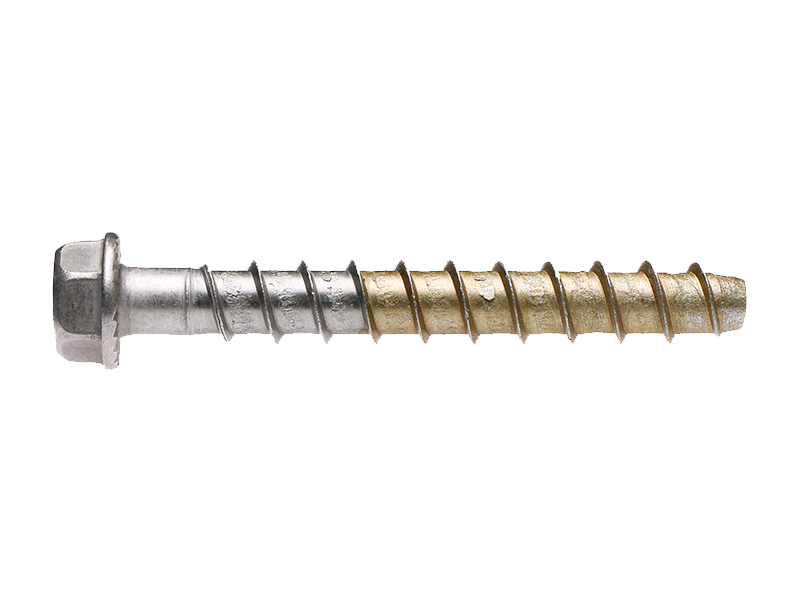

The stainless screw-anchor uses 316 (A4) marine grade stainless steel in the loading area combined with a case hardened carbon-steel tip which is commonly referred to as bi-metal. The carbon-steel tip is required for the purpose of commencing the threading action of the anchor into concrete whilst the 316 stainless steel provides superior corrosion resistance and lifespan for use in outdoor environments over other material.

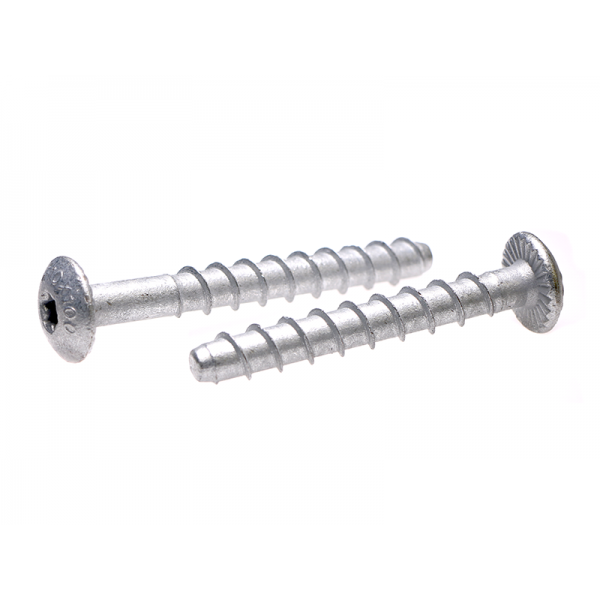

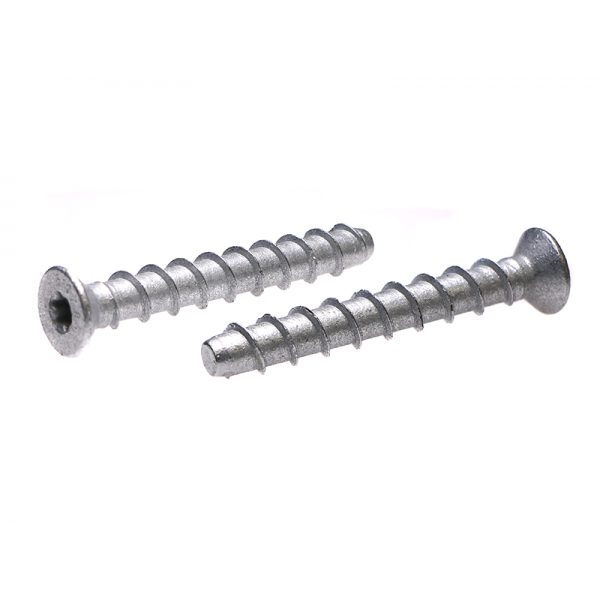

Bimetal screw-anchors are also available in a countersunk and button head option.

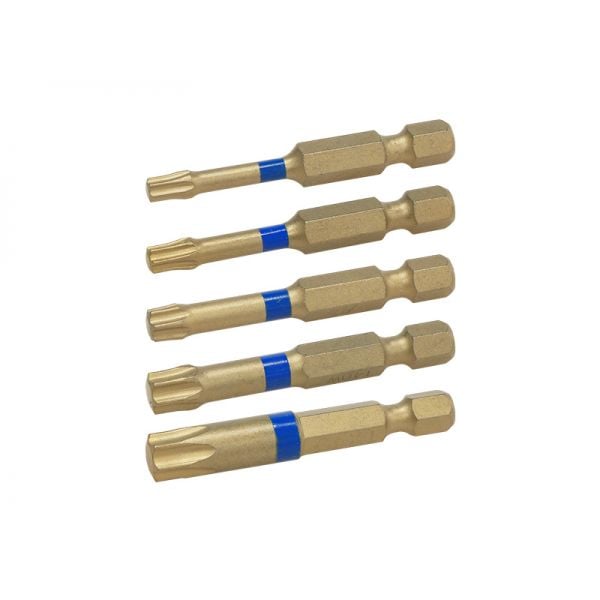

Install 6mm screw-anchors with your impact driver. Nutsetter available.
Availability:
Require a Quote?
Instant quotes online are available to all our trade customers using Trade Portal.
Login and simply add items into your cart. View and edit your cart before pressing Submit Quote. Quotes will be available instantly online.
Description
Determining Fixture Thickness

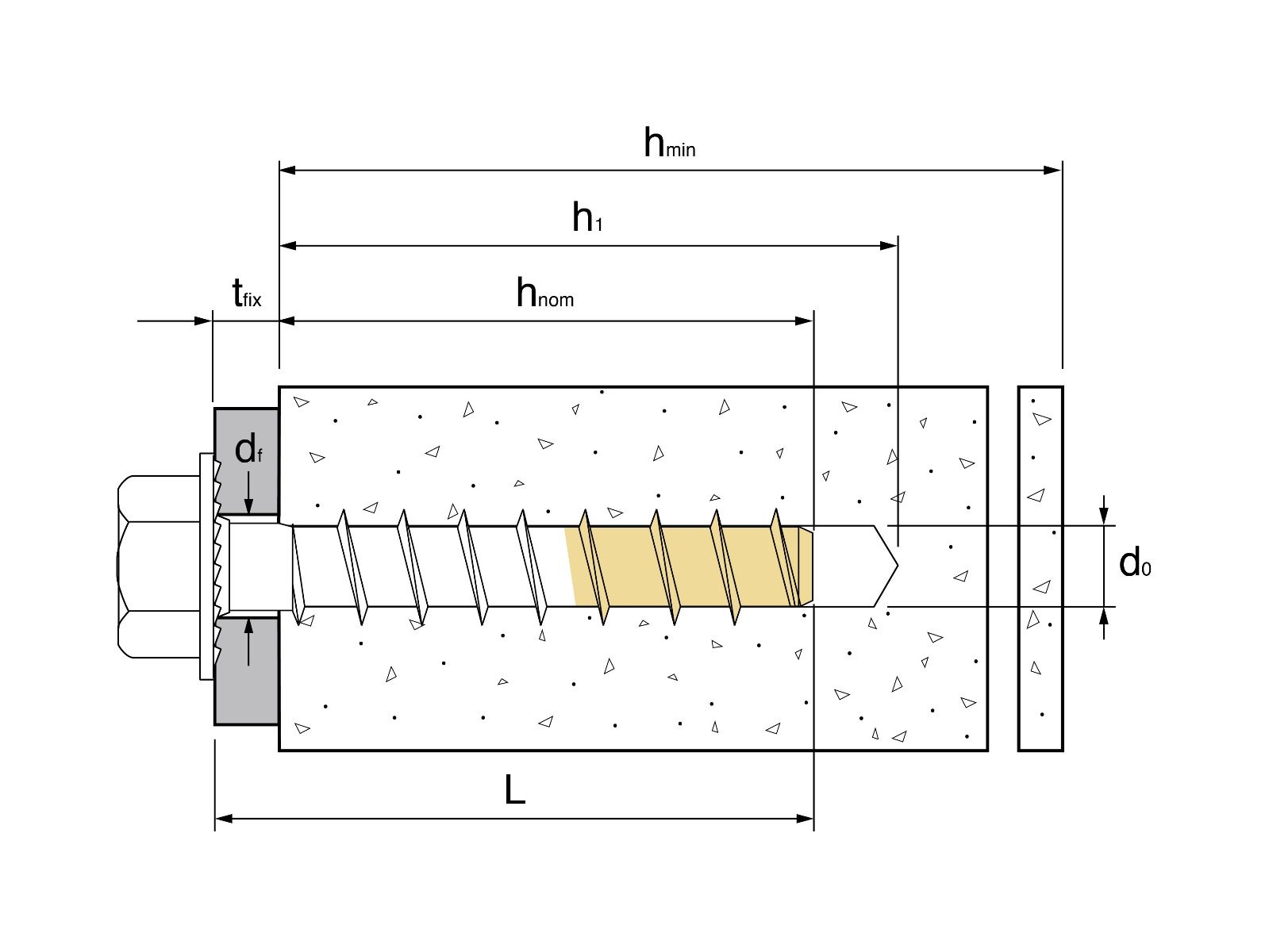

When selecting the appropriate anchor length for your fixture thickness this will be determined by the required embedment length and size of each anchor. The practical fixture thickness (Prac. Fixture**) shown under the Technical Information tab allows to make a robust structural connection for each length. However this increased fixture thickness is not NCC compliant. For compliant NCC maximum fixture thicknesses please refer to the NCC Max. Fixture, tfix under the the Technical Information tab.
For NCC engineered lengths and capacities please refer to technical documentation.
How to be AS 5216 Compliant?
Anchors are assessed to ETA certification and meet the requirements of AS 5216 for NCC compliance. Please refer to the Downloads tab for ETA and TDS documents.
*The 6mm anchor is covered by the NCC only when it is to be used for multiple anchor redundant non-structural systems in concrete. This also applies to the reduced embement of the 8mm anchor.
AFOS: Need assistance when designing with NCC compliant anchors? Get the latest software developed for engineers – specify the correct anchors to AS 5216. Click here to find out more.

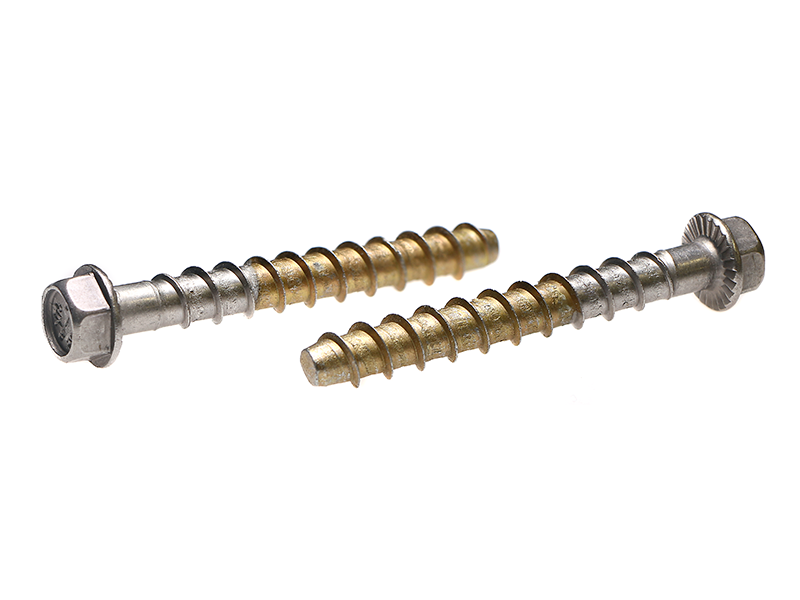

Hex Flange Screw-Anchor Head Size:
6mm anchor, head ø = ~12.9mm / head height = ~5.9mm
8mm anchor, head ø = ~16.7mm / head height = ~7.6mm
10mm anchor, head ø = ~21.7mm / head height = ~9.4mm
12mm anchor, head ø = ~24.9mm / head height = ~11.3mm
Product List
| SKU | Description | Availability | List Price | Pack |
|---|---|---|---|---|
| Pack: |
More Information
| Delivery | SHIPS IN 1 - 2 DAYS |
|---|---|
| Material Grade | 316 Stainless Steel |
| Head Type | Hex Washer |
| Driver Type | Hex Sockets |
| For use with | Concrete (cracked), Concrete (un-cracked), Masonry Solid Block, Masonry Hollow Brick |
| Setting Conditions | Hammer Drilling, Close to Edge, Overhead, Removable |
| Approvals & Documents | ETA Certification, Fire Resistance |
| Compliance | AS 5216:2021, Cyclic Loads |
| Software | AFOS® Anchor Design Software |
