SAC-G Concrete Screw-Anchors Flat Torx Galvanised

SAC-G Concrete Screw-Anchors Flat Torx Galvanised

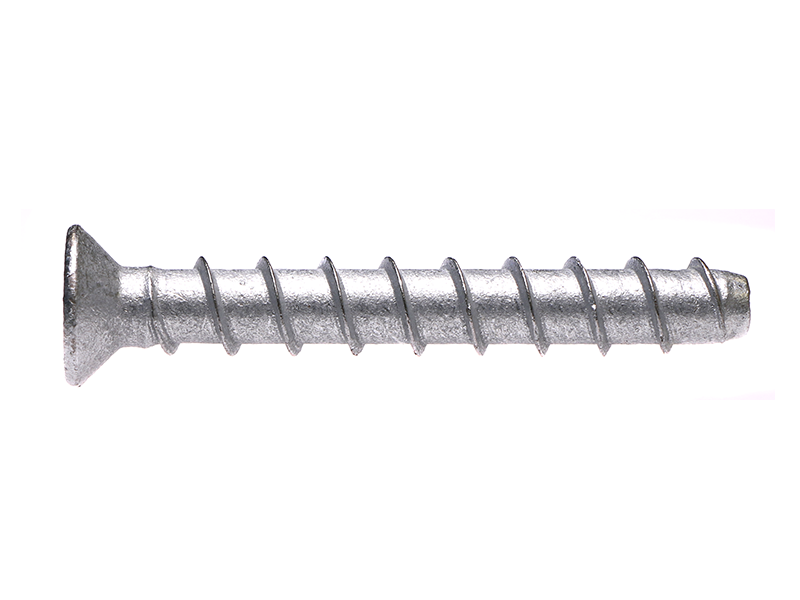

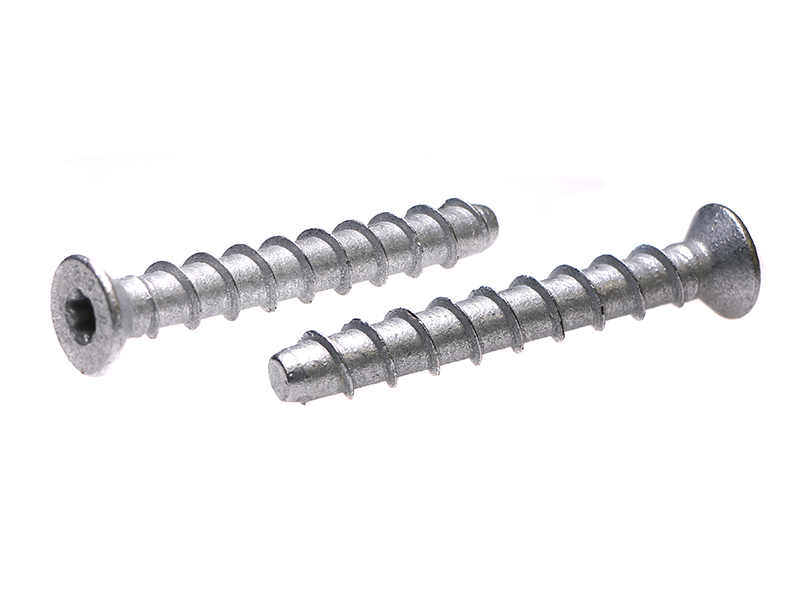

The SAC-G galvanised screw-anchors feature a torx flat (countersunk) head - anchor timber or metal plates, brackets, rails without protruding heads. Torx drive provides great reliability for driving anchors into hard material and less likely to cam out when anchor grabs drill material.

The dual-hardened galvanised carbon-steel provides the required performance for the anchor to self thread into hard concrete in pre-drilled holes.

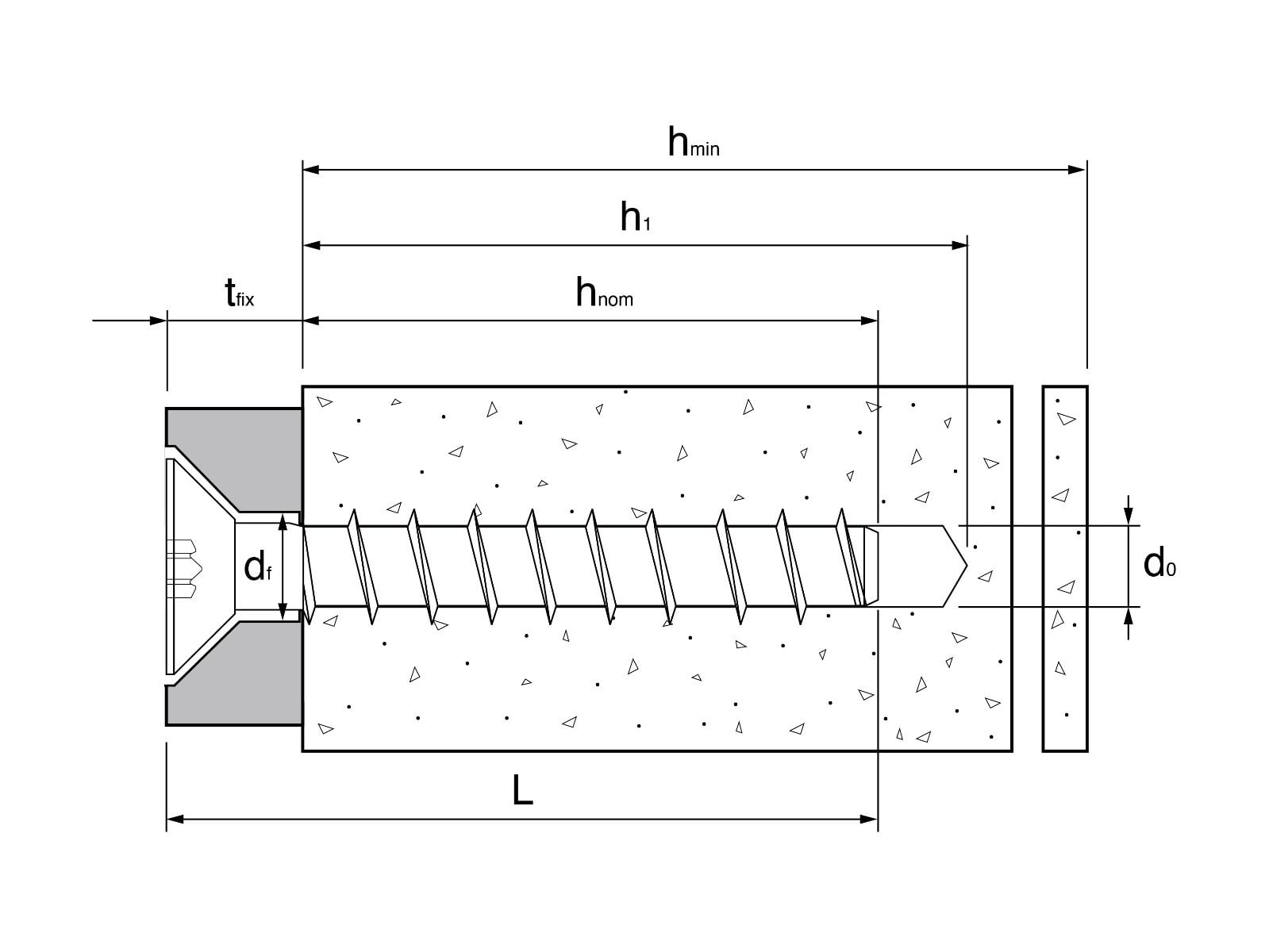

  • Max Fixture: anchor length less required embedment depth
  • Torx drive


We stock the torsion driver bits suitable for impact drivers. Click here to choose an option from the drop-down and add to your cart.

SKU 1SACG
Availability:
Pack:
Sub-total: / ex. gst.
Description

Countersunk Screw-Anchor Head Size:

6mm anchor, head ø = ~15.6mm
8mm anchor, head ø = ~18.1mm
10mm anchor, head ø = ~20.3mm

AS 5216:2018
Tested to AS 5216:2018 to comply with NCC. Refer to the Downloads tab for ETA and TDS documents.

*Recommended maximum fixture thickness (shown under the Product List tab) is a general guide to make a robust structural connection for each length. However fixture thickness can be increased in many applications. For NCC engineered capacities please refer to technical documentation.

AFOS Free Download

AFOS: Need assistance when designing with NCC compliant anchors?  Get the lastest software developed for engineers – specify the correct anchors to AS 5216.  Click here to find out more.

Product List
SKU Description Availability List Price Pack
Pack:
More Information
More Information
Delivery SHIPS IN 1 - 2 DAYS
Material Grade Carbon Steel
Coating & Plating Galvanised
Head Type Countersunk
Driver Type Torx
For use with Concrete (cracked), Concrete (un-cracked), Masonry Solid Block, Masonry Hollow Brick
Setting Conditions Hammer Drilling, Close to Edge, Overhead, Removable
Approvals & Documents ETA Certification, Fire Resistance
Compliance AS 5216:2021, Cyclic Loads
Software AFOS® Anchor Design Software
Technical Information
SKU Size Rec Max Fix* Driver Item
1SACG06060 6 x 60mm SAC-G 10 mm T40 6 x 60mm SAC-G
1SACG06080 6 x 80mm SAC-G 25 mm T40 6 x 80mm SAC-G
1SACG08080 8 x 80mm SAC-G 25 mm T45 8 x 80mm SAC-G
1SACG08100 8 x 100mm SAC-G 35 mm T45 8 x 100mm SAC-G
1SACG10085 10 x 85mm SAC-G 30 mm T50 10 x 85mm SAC-G
1SACG10100 10 x 100mm SAC-G 40 mm T50 10 x 100mm SAC-G
