HYDRAJAWS® M35+ Pro Digital Pull Test Kit

Skip to the end of the images gallery

Skip to the beginning of the images gallery

HYDRAJAWS® M35+ Pro Kit Digital Pull Tester

The modular design of the M35+ tester is a first for the industry providing greater flexibility for testing anchor points or proof loading anchors on site or in the lab. This single unit is a powerful tester with ability to pull anchors as large as M30 to a capacity of 6.5 tonnes.

The Pro Kit is fully optioned with 3 load spreading bridges – that can be fitted with ease. The testing cell is intergrated with the standard bridge which is designed to then be fitted directly into the provided medium and large bridge options.

The Hydrajaws M35+ introduces cutting-edge ‘Easi-Effort®’ technology, setting a new standard in the efficiency of applying torque for mechanical anchor pull testing.

Requiring nearly a quarter of the effort compared* to it's counterpart models, a maximum torque of 9.8Nm and 18.8Nm is applied to test up-to 3.5 tonnes and 6.5 tonnes respectively.

SKU 13HJ400-018-pro

Availability:

Pack:

Buy

Sub-total: / ex. gst.

Grouped product items
Product Name	Qty
HYDRAJAWS® M35+ Pro 65kN Digital Pull Test Kit From $7,533.00

Build A Quote?

Store Item

SKU:

Description

Dual Load Capacity Tester

The M35+ has been engineered as a dual load capacity tester allowing tests up-to 35kN straight out of the case. This can be increased up-to a 65kN load capacity when fitted with the included medium or large bridge option from the kit. Included extension legs can then be fitted to the unit to further clear any height or uneven surface.

Key Features:

Included medium and large bridges expands the capacity of the M35+ to 65kN and increases the footprint to 210mm and 310mm wide.
Complete pull testing procedures in line with BS 8539, BS 7883:2019, BS EN 795:2012, BS 8610, NASC Guidance Note TG4:19 and AEFAC-TN05.
Advanced-Data Logging with Hydrajaws® Verify Pro App – Equipped with state-of-the-art data logging capabilities, the M35+ allows for real-time monitoring and tracking of pull testing results via the Hydrajaws Verify App
Bluetooth® – dual-scale rechargeable digital gauge gives an accurate and clear display of the readings.
Hydrajaws® gauge calibration certificate (valid for 12 months). Re-calibration services completed by Allfasteners
Apply loads by hand up-to 10kN via the operators hand-wheel when fitted with the standard bridge.
Apply loads up-to 65kN when using the medium or large bridge with the supplied ratchet.

Included in the M35+ Pro Kit:

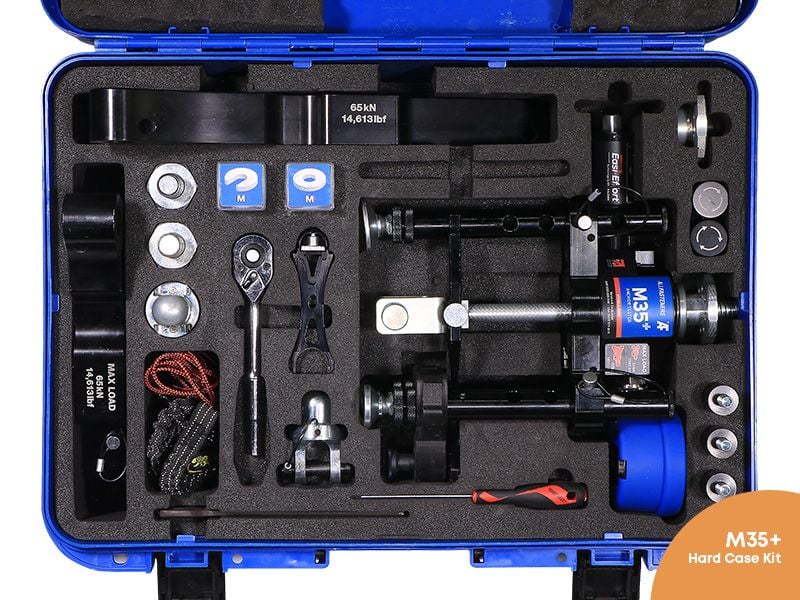

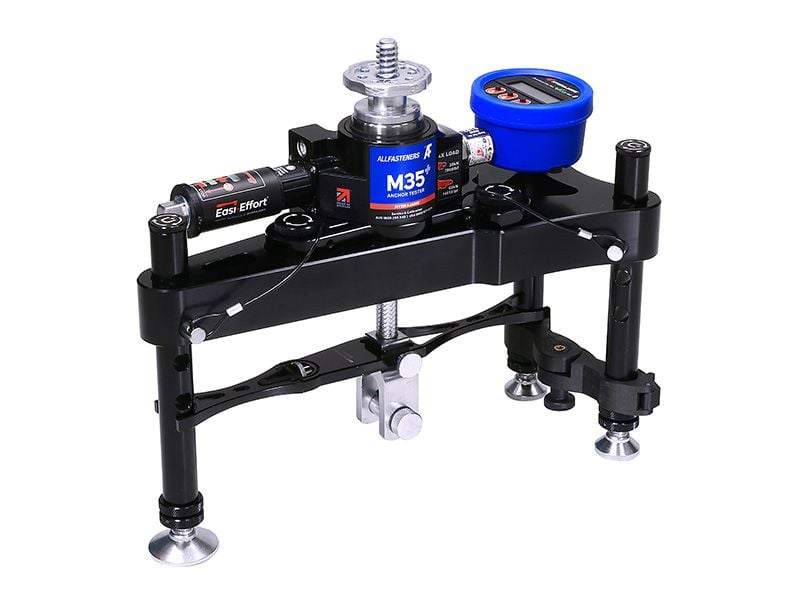

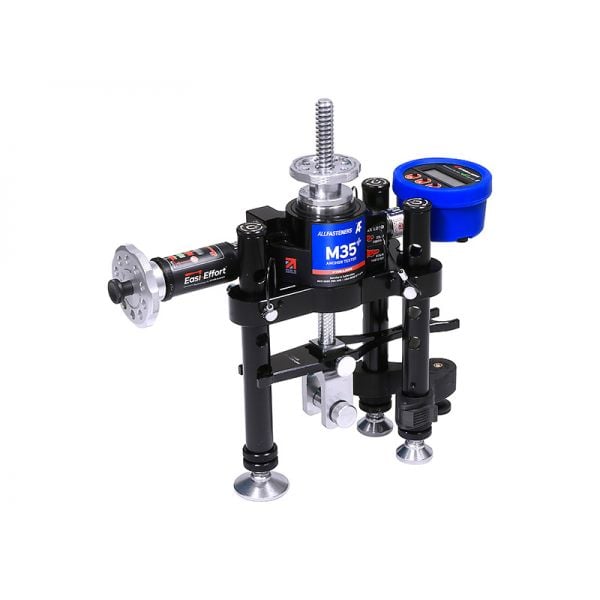

M35+ load cell fitted to the 35kN (7,868lbf) standard bridge
Medium 65kN (14,613lbf) load spreading bridge. Overall footprint 334 x 178mm
Large 65kN (14,613lbf) load spreading bridge. Overall footprint 410 x 178mm
Digital Bluetooth® Rechargeable Gauge 0-65kN (14,613lbf)
Drop rod hand-wheel
Operators hand-wheel
Height adjustable legs with swivel feet, and leg brace

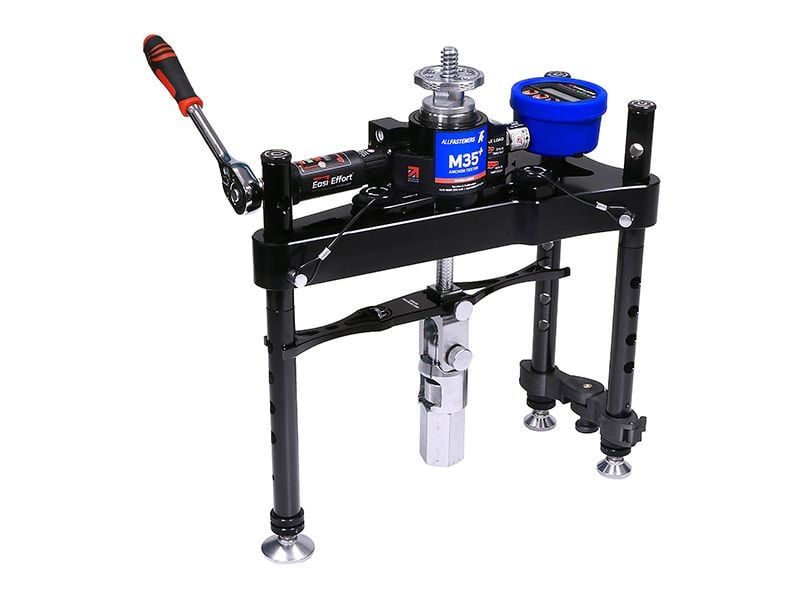

Leg extensions. Increase clearance under bridge by a further 75mm

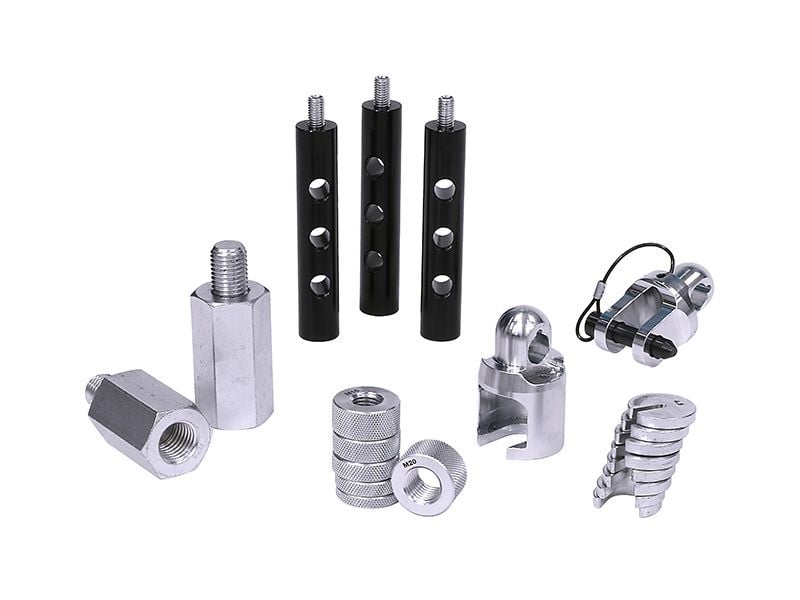

Bolt test adaptor – fits to the primary 24mm clevis fork via the captive clevis pin. Receives both slotted button and threaded buttons adaptors
8 slotted button adaptors: 4.5, 5.5, 6.5, 8.5, 10.5, 13, 16.5 and 20.5mm
6 threaded button adaptors: M6, M8, M10, M12, M16 and M20
M24 threaded rod adaptor
M30 threaded rod adaptor
Primary 24mm clevis fork (65kN SWL) and drop rod with anti-rotation device. Accepts both bolt test adaptor and mini-clevis
20mm mini-clevis adaptor with 35kN SWL
Large plastic case with foam insert

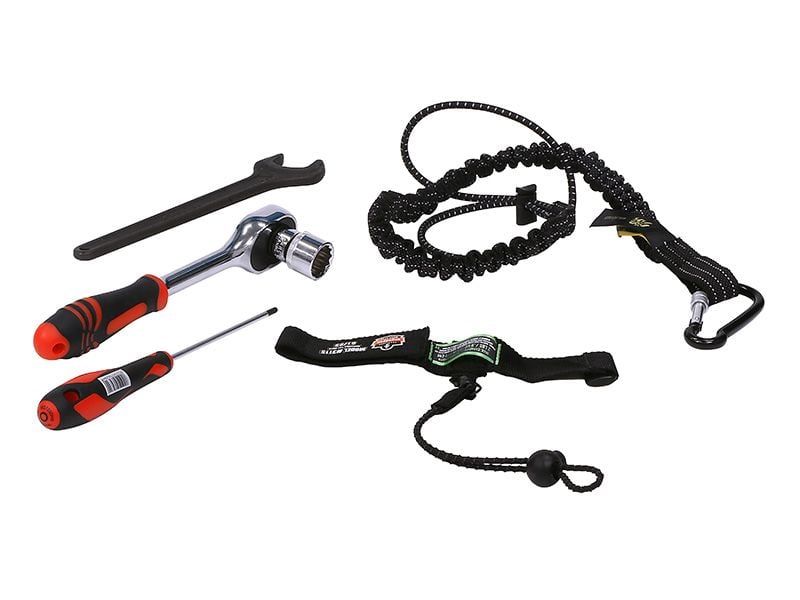

Tester lanyard
Ratchet and ratchet tether
24mm spanner
3mm ball driver
12-month Calibration Certificate
Operating Manual

*Reduction in required effort compared to its counterpart, the Hydrajaws M2050. While the M2050 demands 68Nm at 50kN, the M35+ achieves comparable results with nearly a quarter of the torqueing effort with a maximum torque of 9.8Nm at 35kN and 18.8Nm at 65kN.

Product List
