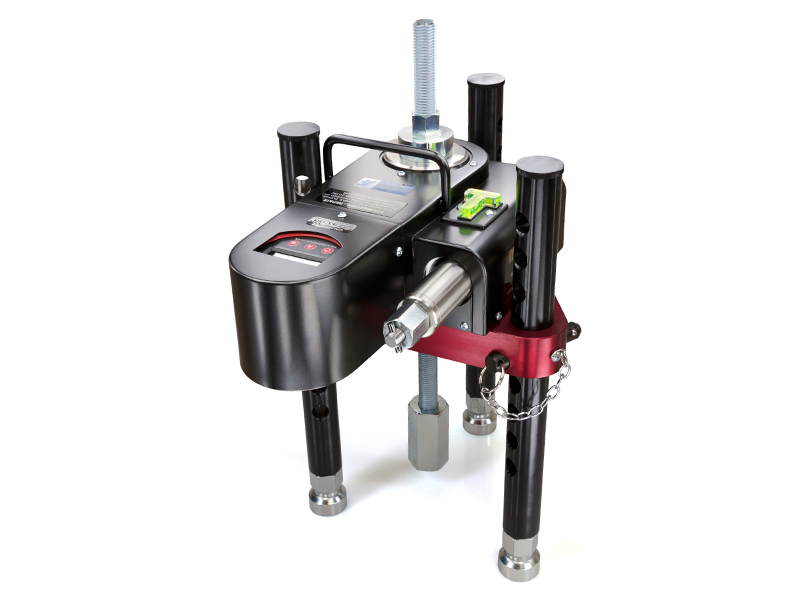

HYDRAJAWS® M2008 HD 145kN Digital Pull Test Kit

Three fully adaptable telescopic aluminium legs are held in place with steel ball pins offering easy assembly and adjustment. The swivel feet offer 30mm of fine adjustment.

Load application is achieved via a ratchet handle driving a hydraulic multiplier and the applied load is recorded on a digital gauge which is integral with the tester.

Add a Bluetooth® Subscription

The 145kN digital gauge included in this kit features Bluetooth® for linking up with the new Hydrajaws® Bluetooth® app.  A hand held device such as a smartphone or tablet with access to Google Play or Apple® App Store is required. For more information on Bluetooth® enable devices click here. All kits come with 12-month calibration and we offer re-calibration servicing in Melbourne when required.

Applications

• Proof and failure load testing of most fixing types
• High load expanding and resin anchors
• Cast in sockets and channel
• Holding down bolts for stanchion base plates
• Base plate fixings for column lighting
• Anchorage for crash barrier and safety fences
• Anchorage for stadium crush barriers
• Bridge parapet anchors

Kit Contents:

• M2008 HD Tester Body
• 0–145kN Digital Gauge (Bluetooth® compatible with in-app subscription – record data via mobile device not included)

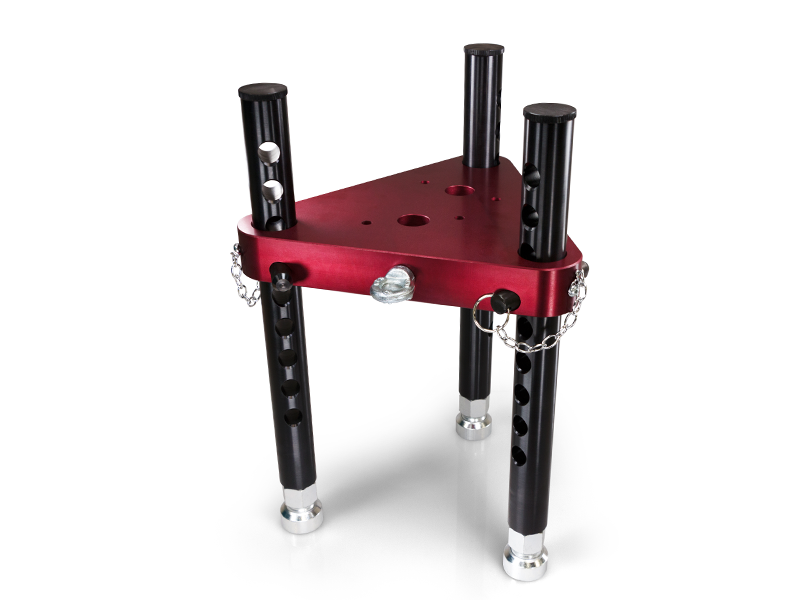

• Offset Load Spreading Bridge with eye hook and Spirit level
• Telescopic legs with fully adjustable swivel feet
• 400mm M20 Connecting Rod and M20 Adjustable Nut
• Heavy Duty (5) Threaded Adaptors: M12, M16, M20, M24, M30
• Allan Keys and Mounting Screws
• 24mm Spanner

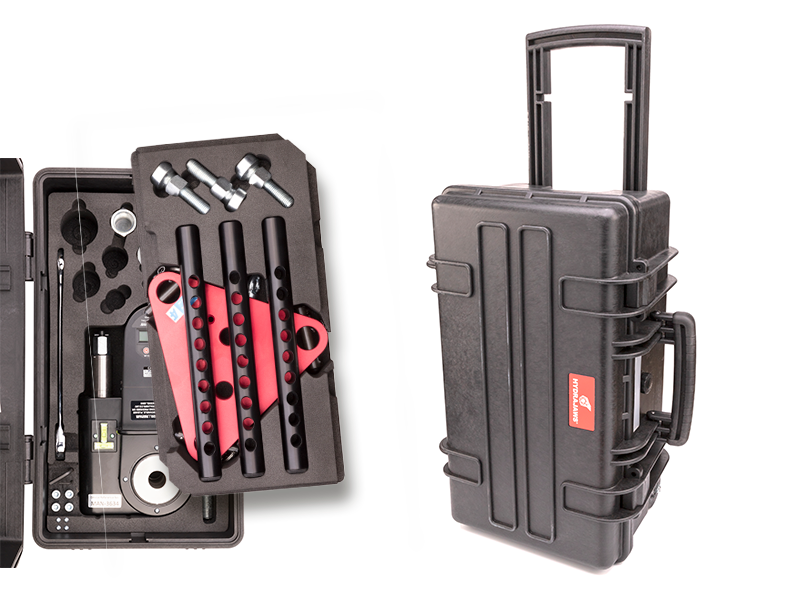

• Carry Case, Operating Instructions and Calibration Certificate
