HYDRAJAWS® M35+ Dual Kit Digital Pull Tester

A dual capacity kit the Hydrajaws M35+ can be both a 35kN and 65kN tester. The first of its kind this modular designed tester opens up a large range of testing possibilities. Engineered to be lightweight and portable, travel anywhere as the Dual Kit fits entirely in the included padded rucksack.

The ergonomically designed operator wheel has replaced the large turning handles of mid-range testers. Allowing operators to test anchors comprised by walls or ceilings and tension anchors up-to 10kN by hand!

Requiring nearly a quarter of the effort compared* to it's counterpart models, a maximum torque of 18.8Nm is applied to test up-to 65kN. Easi-Effort® engineering is setting the new standard for efficiency and reducing user fatigue.

SKU 13HJ400-010-dk

Availability:

Pack:

Buy

Sub-total: / ex. gst.

Grouped product items
Product Name	Qty
HYDRAJAWS® M35+ Dual Kit 65kN Digital Pull Tester From $5,886.00

Build A Quote?

Store Item

SKU:

Description

Dual Load Capacity Tester

Technicians can now increase the range of anchors that can be tested with a single unit. The M35+ has been engineered as a dual load capacity tester allowing tests up-to 35kN straight out of the supplied rucksack. This can be increased up-to a 65kN load capacity when fitted with the included medium bridge from the kit. Optional extension legs can be fitted to this unit to further clear any height or uneven surface.

Key Features:

Included medium bridge expands capacity of M35+ to 65kN and increase footprint to 210mm wide.
Complete pull testing procedures in line with BS 8539, BS 7883:2019, BS EN 795:2012, BS 8610, NASC Guidance Note TG4:19 and AEFAC-TN05.
Advanced-Data Logging with Hydrajaws® Verify Pro App – Equipped with state-of-the-art data logging capabilities, the M35+ allows for real-time monitoring and tracking of pull testing results via the Hydrajaws Verify App
Bluetooth® – dual-scale rechargeable digital gauge gives an accurate and clear display of the readings.
Hydrajaws® gauge calibration certificate (valid for 12 months). Re-calibration services completed by Allfasteners

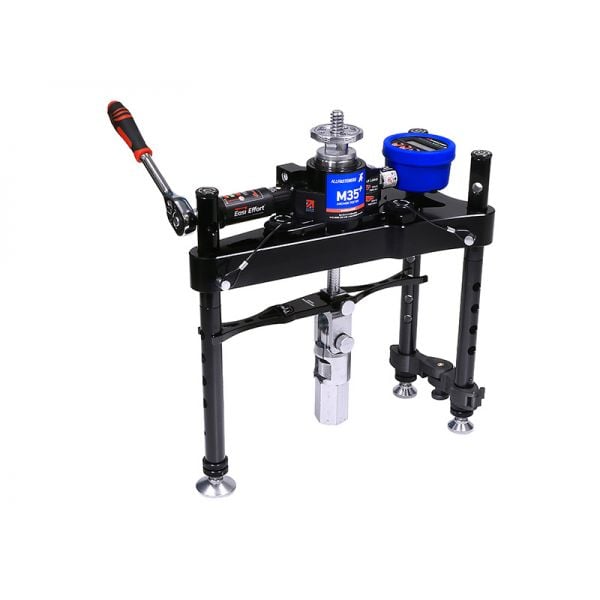

Apply loads by hand up-to 10kN via the operators hand-wheel. Using the supplied ratchet the hand-wheel can be removed and loads above 10kN can be applied.

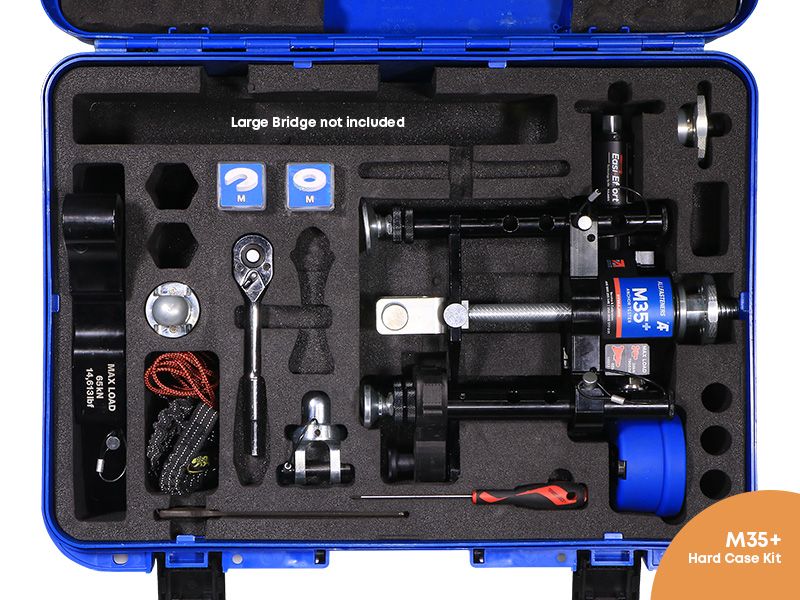

Included in the M35+ Dual Kit:

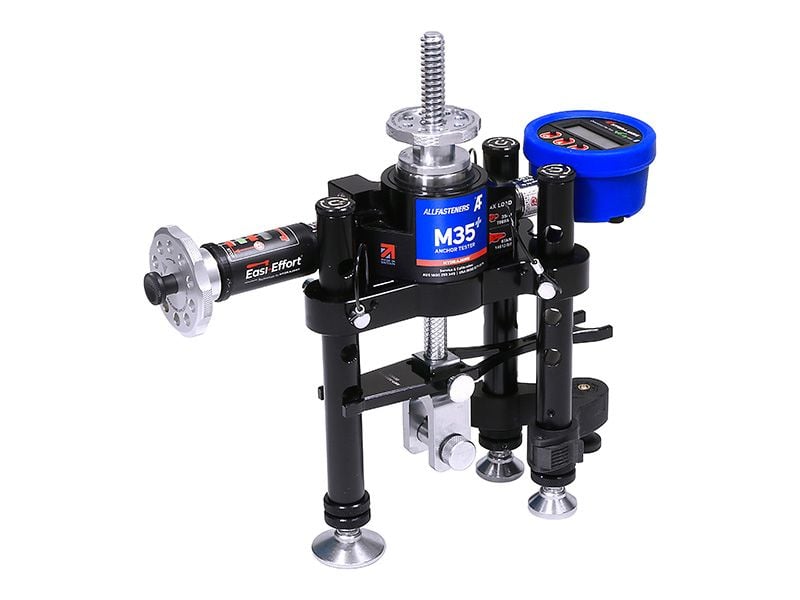

M35+ load cell fitted to the 35kN (7,868lbf) standard bridge

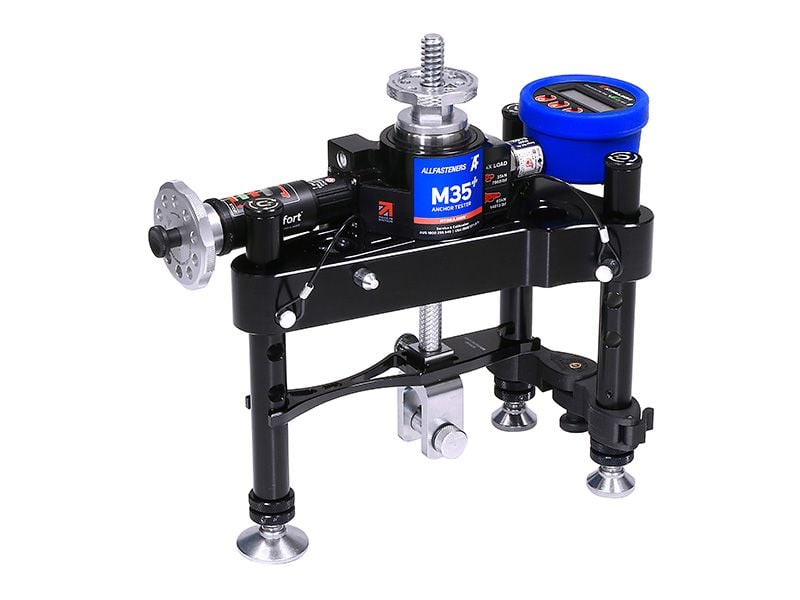

Medium 65kN (14,613lbf) load spreading bridge. Overall footprint 334 x 178mm. Increases clearance to 210mm.
Digital Bluetooth® Rechargeable Gauge 0-65kN (14,613lbf)
Drop rod hand-wheel
Operators hand-wheel
Height adjustable legs with swivel feet, and leg brace

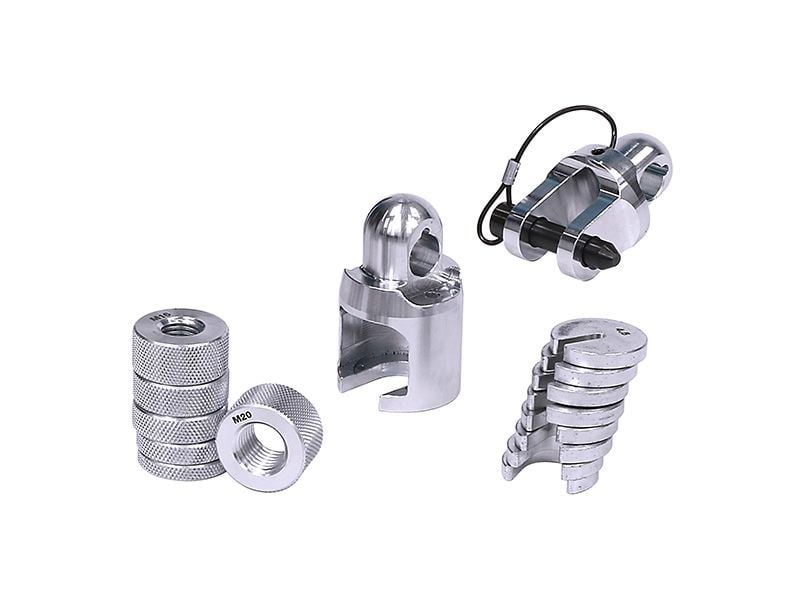

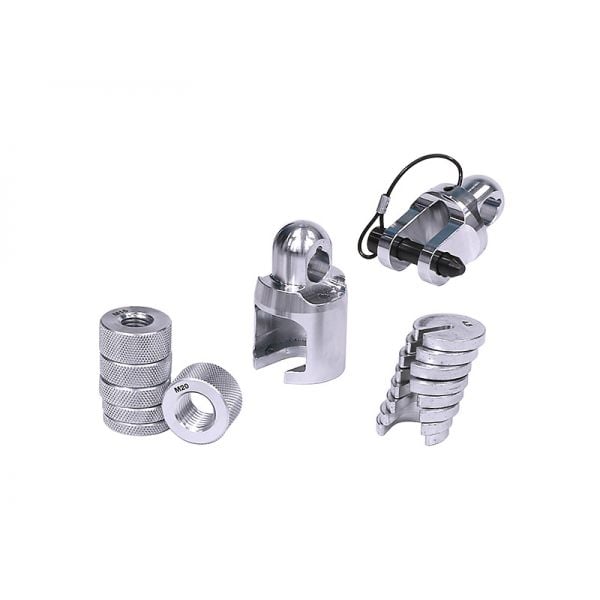

Bolt test adaptor – fits to the primary 24mm clevis fork via the captive clevis pin. Receives both slotted button and threaded buttons adaptors
8 slotted button adaptors: 4.5, 5.5, 6.5, 8.5, 10.5, 13, 16.5 and 20.5mm
6 threaded button adaptors: M6, M8, M10, M12, M16 and M20
Primary 24mm clevis fork (65kN SWL) and drop rod with anti-rotation device. Accepts both bolt test adaptor and mini-clevis
20mm mini-clevis adaptor with 35kN SWL

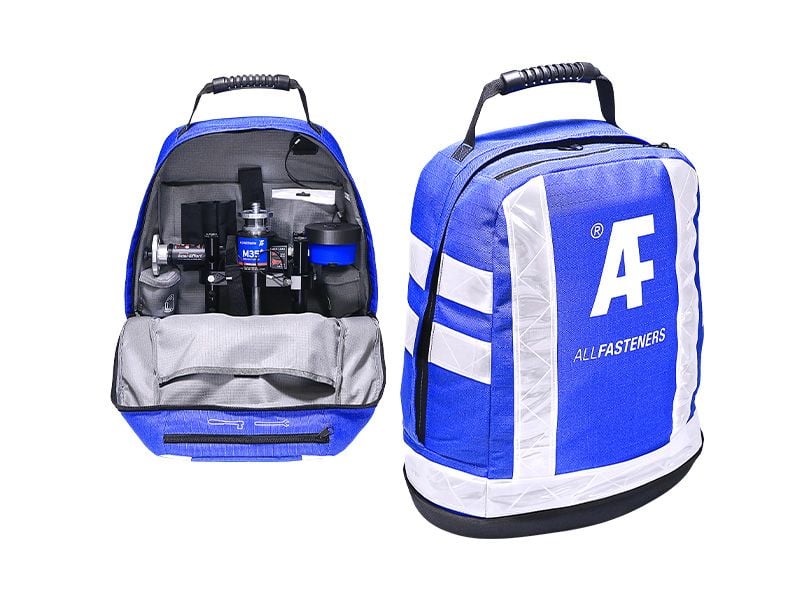

Rucksack with foam filler

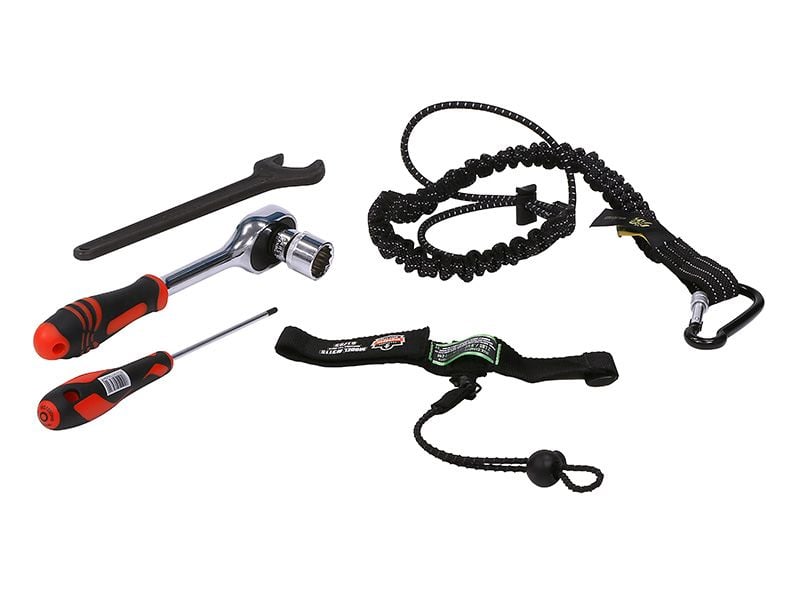

Tester lanyard
Ratchet and ratchet tether
24mm spanner
3mm ball driver
12-month Calibration Certificate
Operating Manual

*Reduction in required effort compared to its counterpart, the Hydrajaws M2050. While the M2050 demands 68Nm at 50kN, the M35+ achieves comparable results with nearly a quarter of the torqueing effort with a maximum torque of 9.8Nm at 35kN and 18.8Nm at 65kN.
