HYDRAJAWS® M35+ Standard Kit 35kN Digital Pull Tester

Lightweight and ergonomically designed the M35+ standard setup is the lightest unit on the market capable of testing up-to 35kN. Enhanced by new Easi-Effort® technology developed by Hydrajaws® technicians can confidently test anchor points have achieved 7.5kN by hand simply via the hand-wheel.

Increasing testing frequency and reducing operator effort, the M35+ is an essential tool for carrying out compliance testing procedures in line with personal fall protection and scaffold ties.

Transport with ease and flexiblity the standard M35+ kit including all the adaptors is now supplied in a tailor-made rucksack.

SKU 13HJ400-012-std

Availability:

Pack:

Buy

Sub-total: / ex. gst.

Grouped product items
Product Name	Qty
HYDRAJAWS® M35+ Standard Kit 35kN Digital Pull Tester From $4,855.00

Build A Quote?

Store Item

SKU:

Description

Dual Load Capacity Tester

The M35+ has been engineered as a dual load capacity tester allowing tests up-to 65kN when fitted with optional medium and large bridge options. Technicians can now increase the range of anchors that can be tested with a single unit. Expanding the footprint and testing height of their setup with larger bridges and extension legs options, clear any height or uneven surface.

Key Features:

Complete pull testing procedures in line with BS 8539, BS 7883:2019, BS EN 795:2012, BS 8610, NASC Guidance Note TG4:19 and AEFAC-TN05.
Advanced-Data Logging with Hydrajaws® Verify Pro App – Equipped with state-of-the-art data logging capabilities, the M35+ allows for real-time monitoring and tracking of pull testing results via the Hydrajaws Verify App
Bluetooth® – dual-scale rechargeable digital gauge gives an accurate and clear display of the readings.
Hydrajaws® gauge calibration certificate (valid for 12 months). Re-calibration services completed by Allfasteners
Apply loads by hand up-to 10kN via the operators hand-wheel. Using the supplied ratchet the hand-wheel can be removed and loads above 10kN can be applied.

Included in the Standard M35+ Kit:

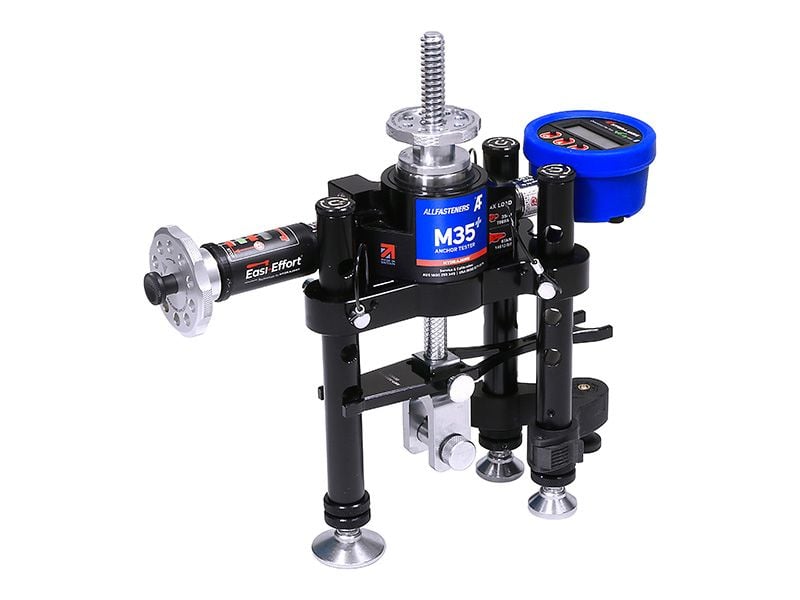

M35+ load cell fitted to the 35kN (7,868lbf) standard bridge
Digital Bluetooth® Rechargeable Gauge 0-65kN (14,613lbf)
Drop rod hand-wheel
Operators hand-wheel
Height adjustable legs with swivel feet, and leg brace

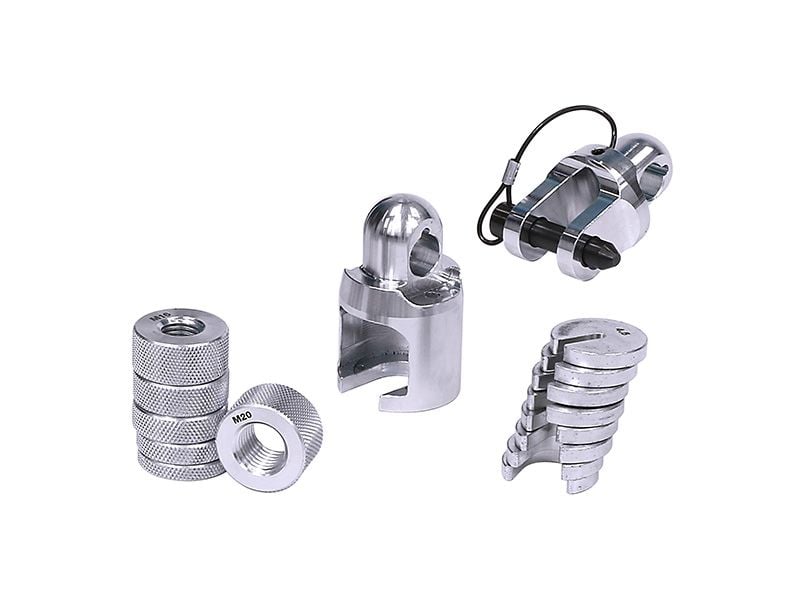

Bolt test adaptor – fits to the primary 24mm clevis fork via the captive clevis pin. Receives both slotted button and threaded buttons adaptors
8 slotted button adaptors: 4.5, 5.5, 6.5, 8.5, 10.5, 13, 16.5 and 20.5mm
6 threaded button adaptors: M6, M8, M10, M12, M16 and M20
Primary 24mm clevis fork (65kN SWL) and drop rod with anti-rotation device. Accepts both bolt test adaptor and mini-clevis
20mm mini-clevis adaptor with 35kN SWL

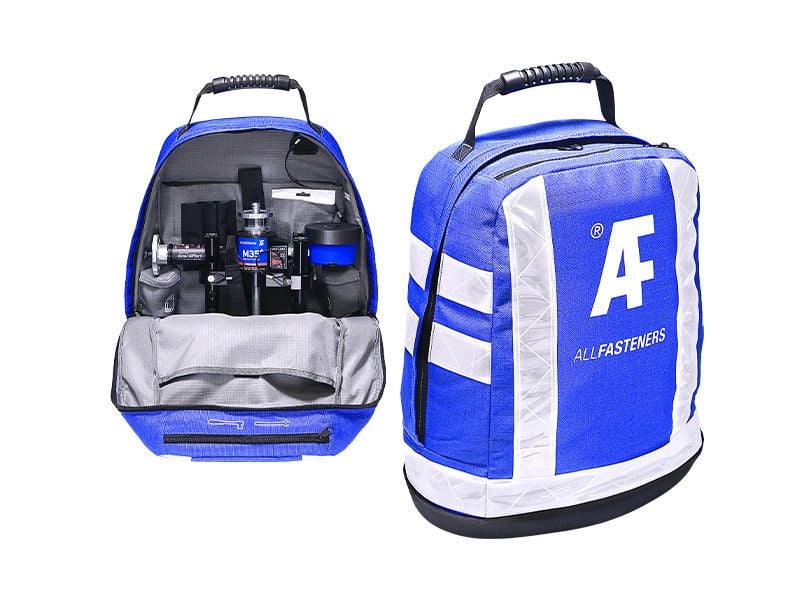

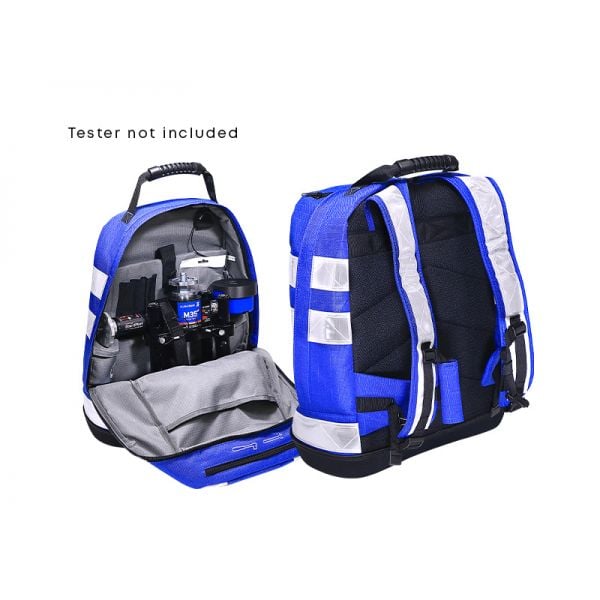

Rucksack with foam filler

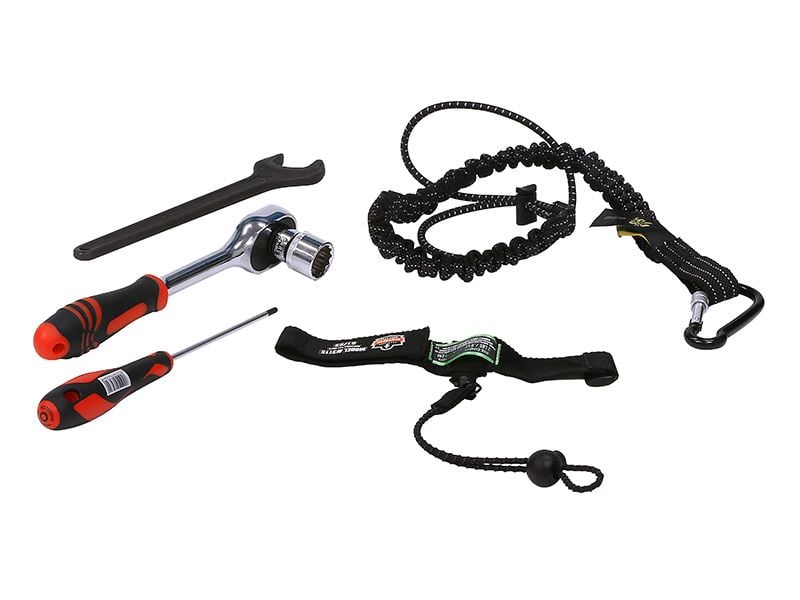

Tester lanyard
Ratchet and ratchet tether
24mm spanner
3mm ball driver
12-month Calibration Certificate
Operating Manual
