XSAM-S Threaded Screw-Anchor 316 Stainless Seismic C1
XSAM-S Threaded Screw-Anchor 316 Stainless Seismic C1
X-SERIES High Performance ● ● ● ● ●

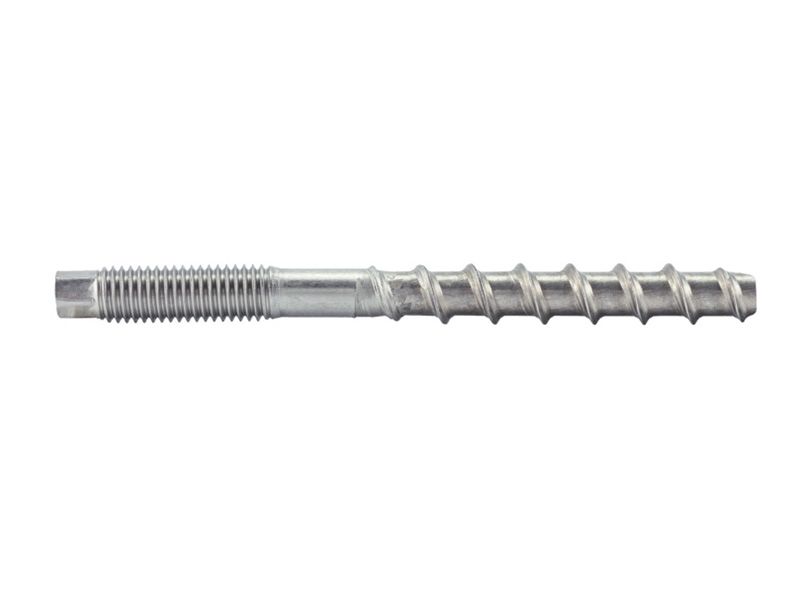

A pre-set or through-set installation anchor, the XSAM-S screw anchor allows versatility in its application. The metric connection thread provides attachment for various nut, washer or coupler options. If pre-set the beam or connecting plate can be positioned and rested whilst being finally secured.
For the direct attachment of beams, supports, bracing, suspended ceilings, and services including electrical, piping and HVAC systems.
Made from 316 (A4) stainless steel.
The advantage of the ETA assessment allows for use in cracked concrete and under seismic* C1 conditions in some application.
Availability:
Require a Quote?
Instant quotes online are available to all our trade customers using Trade Portal.
Login and simply add items into your cart. View and edit your cart before pressing Submit Quote. Quotes will be available instantly online.
Description
Application
- Anchor moderate to heavy loads in cracked and non-cracked concrete
- Railings and handrails, shelves, wooden beams, supports and braces, brackets, pipeline and cable routes, suspended ceilings and more
Advantages
- European Technical Assessment (ETA) for anchoring in cracked and non-cracked concrete (Option 1)
- Approved for use under seismic conditions of category C1
- Approved for use under fi re exposure
- Small drill hole diameter, small edge and axial gap
- No curing times – can be loaded immediately
- Can be fully removed
*For approved anchors in seismic conditions please see technical data sheet
Product List
| SKU | Description | Availability | List Price | Pack |
|---|---|---|---|---|
| Pack: |
More Information
| Material Grade | 316 Stainless Steel |
|---|---|
| Coating & Plating | Plain / Unplated |
| Head Type | Externally Threaded |
| Driver Type | Hex Sockets |
| For use with | Concrete (cracked), Concrete (un-cracked), Masonry Solid Block |
| Setting Conditions | Hammer Drilling, Close to Edge, Overhead, Removable |
| Approvals & Documents | ETA Certification, Fire Resistance |
| Compliance | AS 5216:2021, Cyclic Loads, Seismic C1 |
| Software | AFOS® Anchor Design Software |

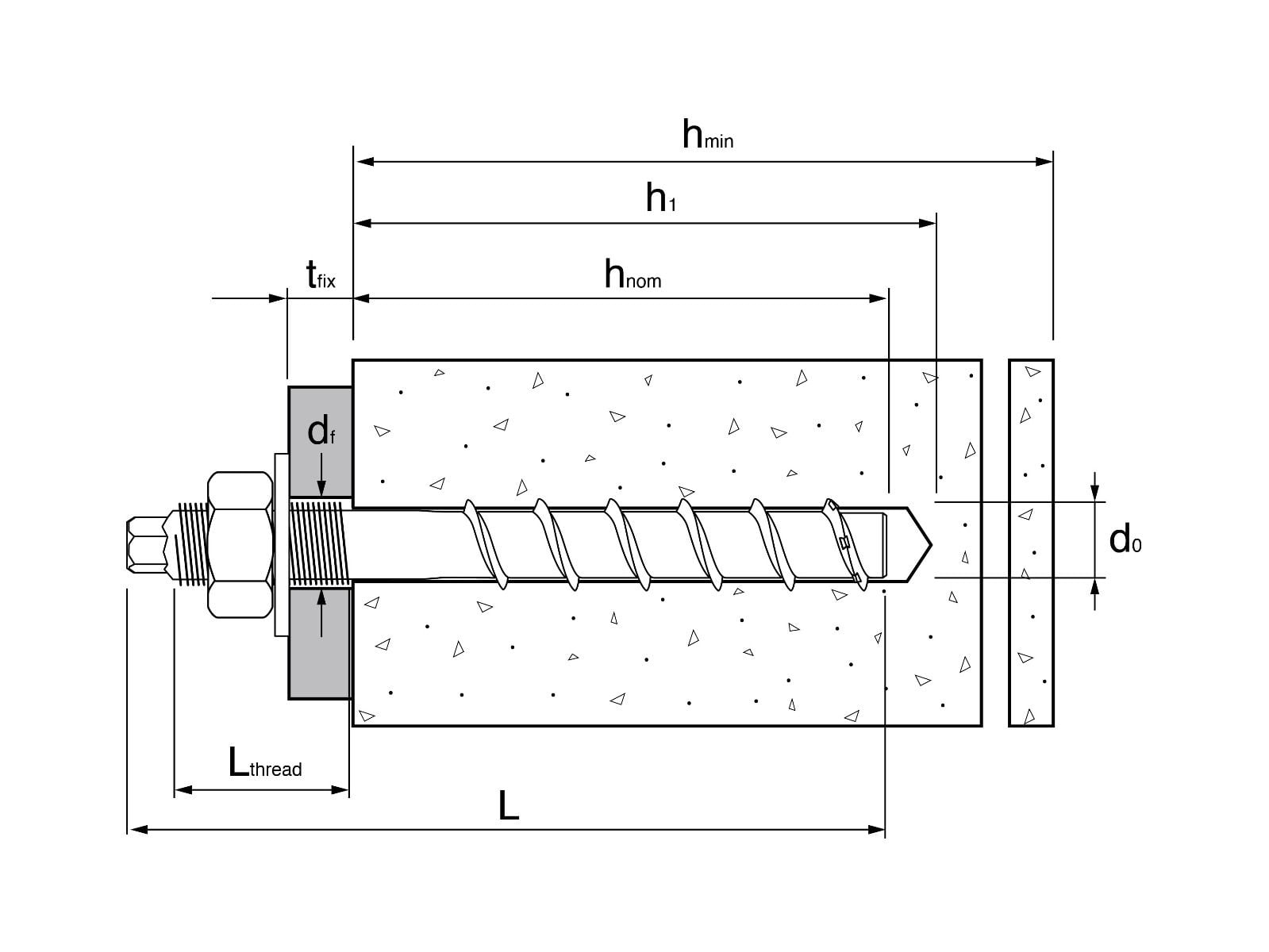

Technical Information
| SKU | Item | Connection | Connection Thread | Drv | Item |
|---|---|---|---|---|---|
| 1078.0080105 | 8 x 105mm XSAM-S | M10 x 30mm | M10 x 30mm | 7mm | 8 x 105mm XSAM-S |
| 1078.0100140 | 10 x 145mm XSAM-S | M12 x 35mm | M12 x 35mm | 9mm | 10 x 145mm XSAM-S |
