XSAH-Z Concrete Screw-Anchor Hex Zinc Seismic C1 & C2
XSAH-Z Concrete Screw-Anchor Hex Zinc Seismic C1 & C2
X-SERIES High Performance ● ● ● ● ●

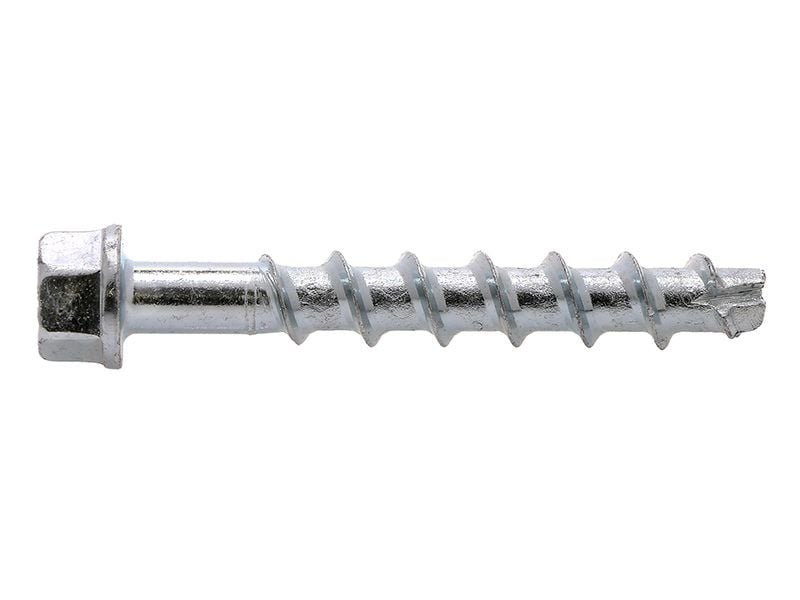

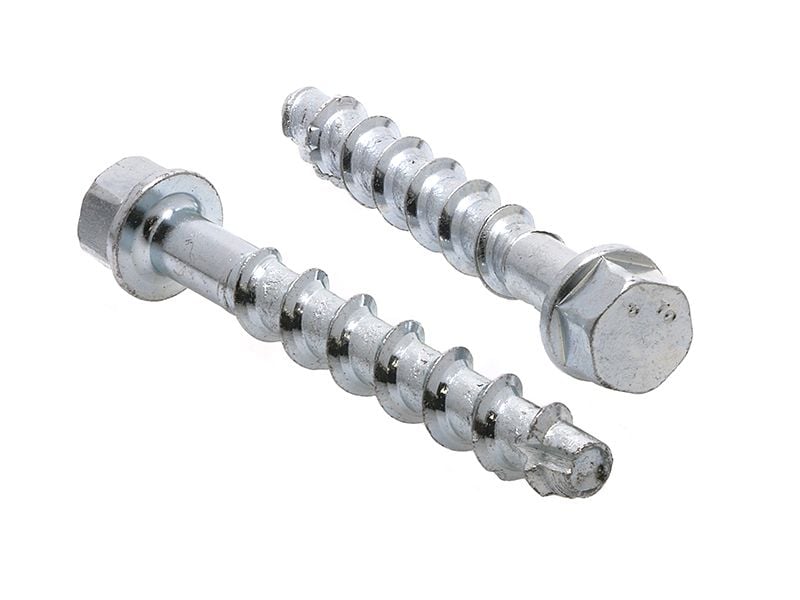

XSAH-Z screw-anchors are a versatile, high-performance concrete anchor with 3-depths of acceptable embedment. Screw-anchors cut a positive thread in the concrete when installed and enable attachment to be made to close to edge as a non-expanding anchors. The approved embedments enables subsequent alignment to compensate for unevenness.
XSAH-Z are ideal for temporary fixings as they are fully removable, installation can be with the use of a impact screwdriver.
The advantage of the ETA assessment allows for use in cracked concrete and under C1 & C2 seismic conditions* in some application.
Availability:
Require a Quote?
Instant quotes online are available to all our trade customers using Trade Portal.
Login and simply add items into your cart. View and edit your cart before pressing Submit Quote. Quotes will be available instantly online.
Description
Application
- Anchor moderate to heavy loads in cracked and non-cracked concrete
- Railings and handrails, shelves, wooden beams, supports and braces, brackets, pipeline and cable routes, suspended ceilings and more
- Without assessment can be used in compression-resistant natural stone and solid brick
Advantages
- European Technical Assessment (ETA) for anchoring in cracked and non-cracked concrete (Option 1) for concrete screws in sizes ø 6, 8, 10, 12 and 14
- With up to 3 embedment depths, it is versatile for high loads or low levels of drilling and installation effort
- Approved for use under seismic* conditions of category C1 & C2 (ø8 to ø14 for embedment depth hnom3)
- Approved for use under fi re exposure
- Small drill hole diameter, small edge and axial gap
- No curing times – can be loaded immediately
- Adjustable to compensate for unevenness (Ø8 to Ø14 mm)
- Can be fully removed
*For approved anchors in seismic conditions please see technical data sheet
Product List
| SKU | Description | Availability | List Price | Pack |
|---|---|---|---|---|
| Pack: |
More Information
| Material Grade | Carbon Steel |
|---|---|
| Head Type | Hex Washer |
| Driver Type | Hex Sockets |
| For use with | Concrete (cracked), Concrete (un-cracked), Hollow Core Concrete, Masonry Solid Block |
| Setting Conditions | Hammer Drilling, Close to Edge, Overhead, Removable |
| Approvals & Documents | ETA Certification, Fire Resistance |
| Compliance | AS 5216:2021, Cyclic Loads, Seismic C1 & C2 |
| Software | AFOS® Anchor Design Software |

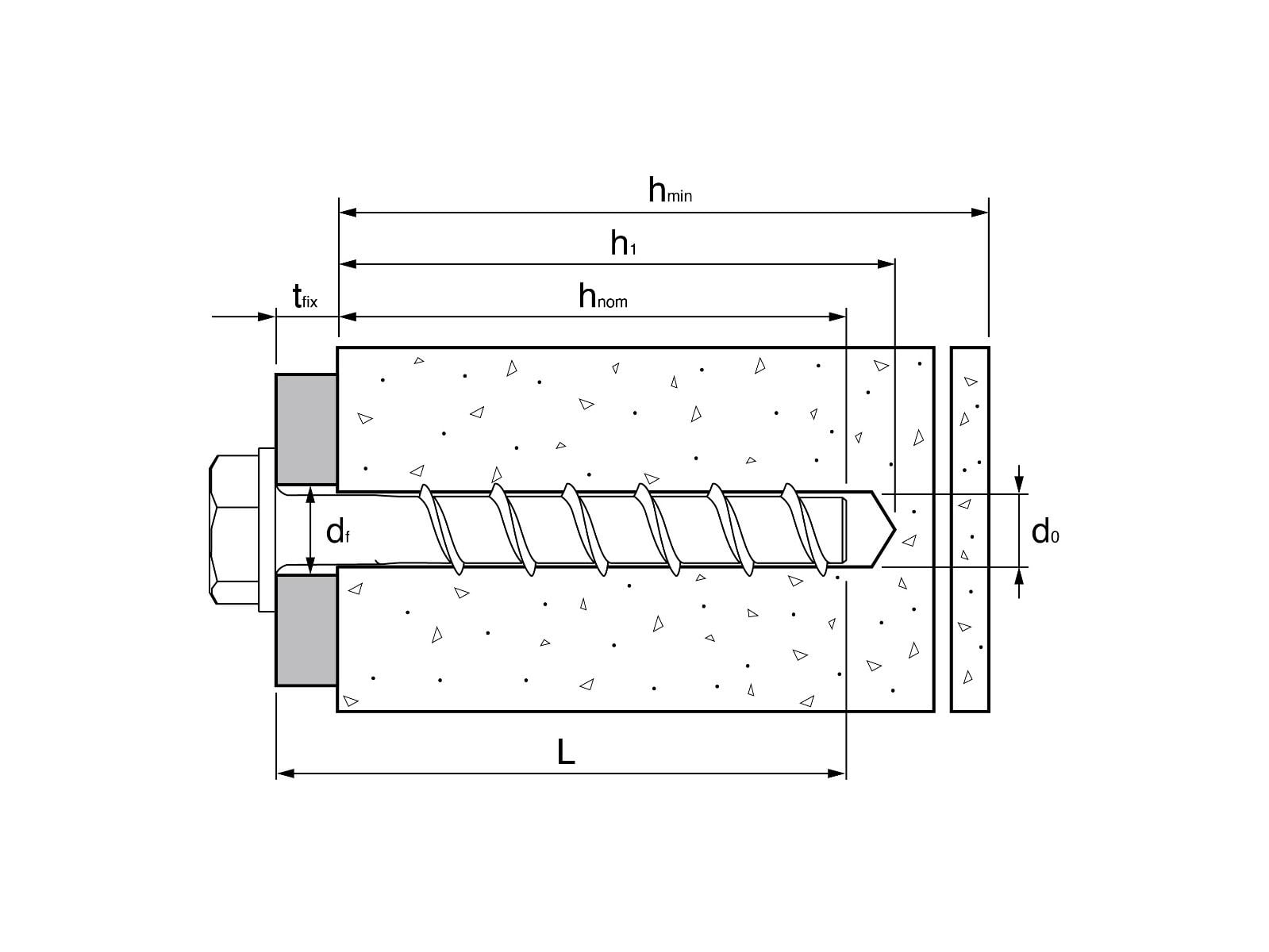

Technical Information
| SKU | Dia. x Length | Rec Fix, hnom1 | Driver | Seismic, C1 / C2 |
|---|---|---|---|---|
| 1076.0060040 | 6 x 40mm XSAH-Z | 5mm | 13mm | - / - |
| 1076.0060050 | 6 x 50mm XSAH-Z | 10mm | 13mm | ✓ / - |
| 1076.0060060 | 6 x 60mm XSAH-Z | 20mm | 13mm | ✓ / - |
| 1076.0060080 | 6 x 80mm XSAH-Z | 40mm | 13mm | ✓ / - |
| 1076.0080060 | 8 x 60mm XSAH-Z | 13mm | ||
| 1076.0080070 | 8 x 70mm XSAH-Z | 25mm | 13mm | |
| 1076.0080100 | 8 x 100mm XSAH-Z | 55mm | 13mm | |
| 1076.0100060 | 10 x 60mm XSAH-Z | 15mm | ||
| 1076.0100070 | 10 x 70mm XSAH-Z | 15mm | ||
| 1076.0100090 | 10 x 90mm XSAH-Z | 35mm | 15mm | |
| 1076.0100120 | 10 x 120mm XSAH-Z | 65mm | 15mm | |
| 1076.0100160 | 10 x 160mm XSAH-Z | 105mm | 15mm | |
| 1076.0100200 | 10 x 200mm XSAH-Z | 141mm | 15mm | |
| 1076.0100240 | 10 x 240mm XSAH-Z | 181mm | 15mm | |
| 1076.0100280 | 10 x 280mm XSAH-Z | 221mm | 15mm | |
| 1076.0100320 | 10 x 320mm XSAH-Z | 261mm | 15mm | |
| 1076.0120110 | 12 x 110mm XSAH-Z | 45mm | 17mm | |
| 1076.0120150 | 12 x 150mm XSAH-Z | 85mm | 17mm | |
| 1076.0140130 | 14 x 130mm XSAH-Z | 55mm | 21mm | |
| 1076.0140150 | 14 x 150mm XSAH-Z | 75mm | 21mm |
