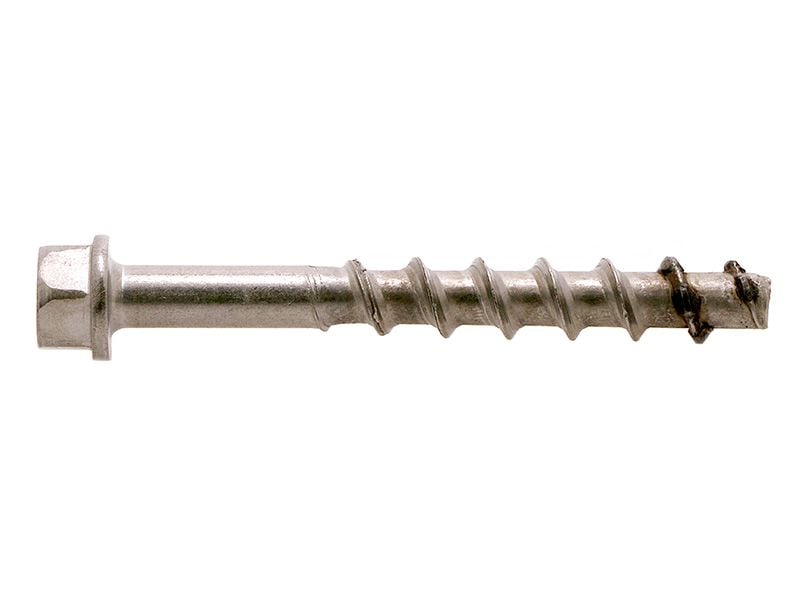

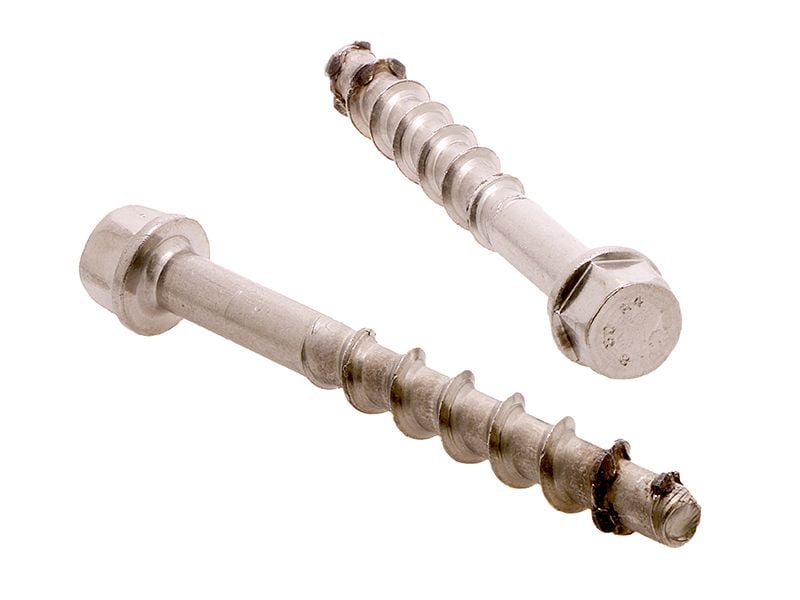

XSAH-S Concrete Screw-Anchor Hex 316 Stainless Seismic C1

XSAH-S Concrete Screw-Anchor Hex 316 Stainless Seismic C1

High Performance  ● ● ● ● ●

Stainless XSAH-S screw-anchors are made from 316 (A4) stainless steel. Providing a corrosion resistant, versatile, high-performance concrete anchor with 3-depths of acceptable embedment. The XSAH-S screw-anchor can cut a positive thread in the concrete when installed and enable fixings to be made to close to edge as a non-expanding anchor. The approved embedments enables subsequent alignment to compensate for unevenness.

Installation can be completed with the use of a impact screwdriver, XSAH-S can be a permanent or temporary fixings.

The advantage of the ETA assessment allows for use in cracked concrete and under seismic* C1 conditions in some application.

TIERED PRICING
AS 5216
ETA ASSEMENT
$581.80
  • Buy 5 for $523.60 each and save 11%
  • Buy 10 for $476.00 each and save 19%
$390.90
  • Buy 10 for $351.83 each and save 10%
  • Buy 20 for $319.83 each and save 19%
$563.30
  • Buy 10 for $507.00 each and save 10%
  • Buy 20 for $460.93 each and save 19%
$626.00
  • Buy 6 for $563.40 each and save 11%
  • Buy 10 for $470.30 each and save 25%
Order Here
Item Unit(s) EX.GST QTY
Item Pack Qty.- $ Ex. GST -
BoxVOLUME DISCOUNT:
Close
Qty.
Add line
Product List
SKU Item Rec Max Fix Socket Bx. Qty. Crt. Qty.
SKU 1XSAHS06060 Item 6 x 60mm XSAH-S Rec Max Fix 20mm Socket 13mm Bx. Qty. 100 Crt. Qty.
SKU 1XSAHS08080 Item 8 x 80mm XSAH-S Rec Max Fix 35mm Socket 13mm Bx. Qty. 50 Crt. Qty.
SKU 1XSAHS10090 Item 10 x 90mm XSAH-S Rec Max Fix 35mm Socket 15mm Bx. Qty. 50 Crt. Qty.
SKU 1XSAHS10120 Item 10 x 120mm XSAH-S Rec Max Fix 65mm Socket 15mm Bx. Qty. 50 Crt. Qty.
Downloads

Application

  • Anchor moderate to heavy loads in cracked and non-cracked concrete
  • Railings and handrails, shelves, wooden beams, supports and braces, brackets, pipeline and cable routes, suspended ceilings and more
  • Without assessment can be used in compression-resistant natural stone and solid brick

Advantages

  • European Technical Assessment (ETA) for anchoring in cracked and non-cracked concrete (Option 1) for concrete screws in sizes ø 6, 8, and 10
  • With up to 3 embedment depths, it is versatile for high loads or low levels of drilling and installation effort
  • Approved for use under seismic* conditions of category C1 (ø6 to ø10 for embedment depth hnom3)
  • Approved for use under fire exposure
  • Small drill hole diameter, small edge and axial gap
  • No curing times – can be loaded immediately
  • Adjustable to compensate for unevenness (Ø8 - Ø10 mm)
  • Can be fully removed

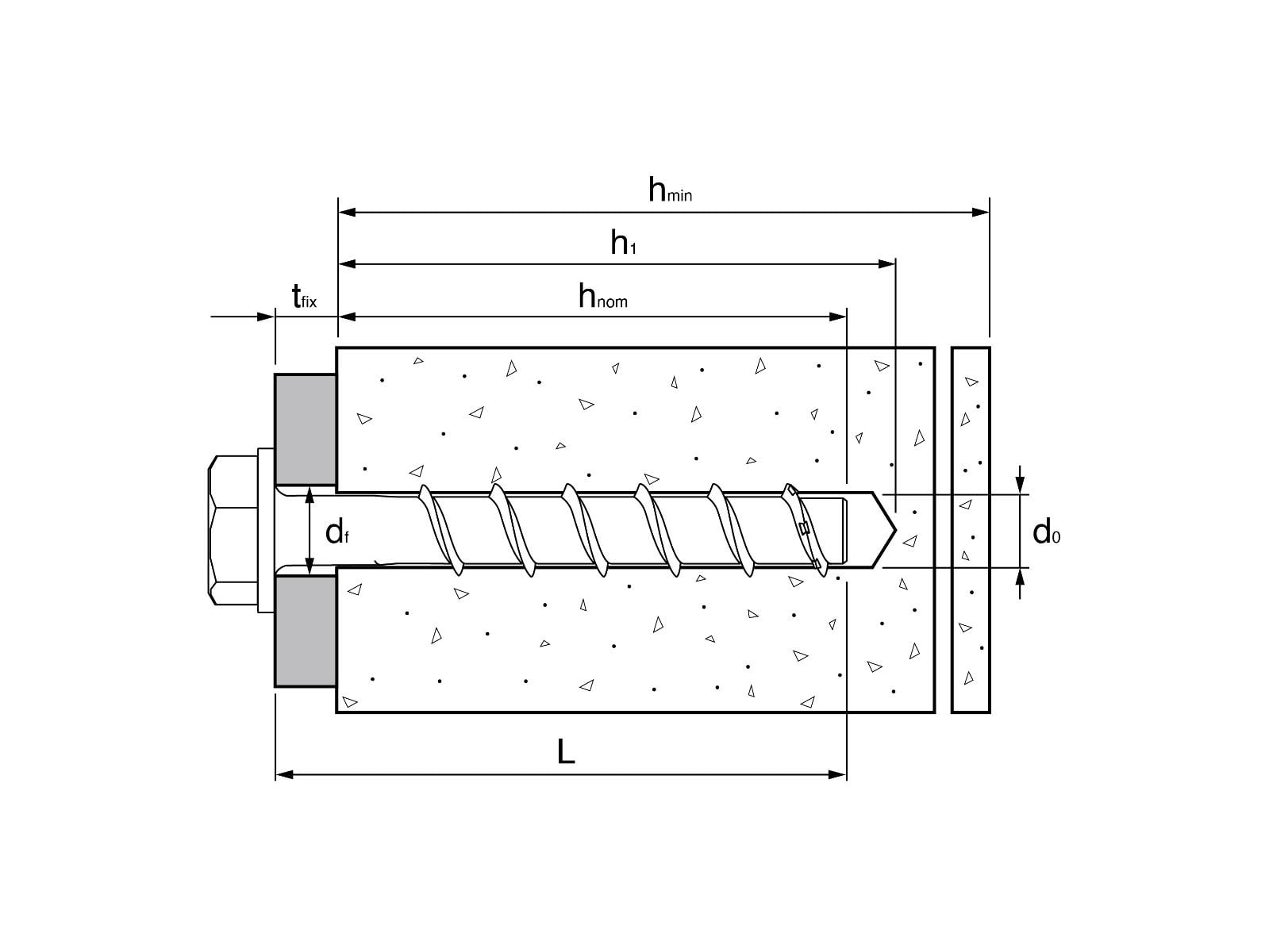

Installation

Embedment Depth 1 (hnom1): low level of drilling and installation effort / large fixture thickness / reduced loads

Embedment Depth 2 (hnom2): medium level of drilling and installation effort / medium fixture thickness / moderate load

Embedment Depth 3 (hnom3): higher level of drilling and installation effort / small fixture thickness / heavy loads


AFOS Free Download

AFOS: Need assistance when designing with NCC compliant anchors?  Get the latest software developed for engineers – specify the correct anchors to AS 5216.  Click here to find out more.

*For approved anchors in seismic conditions please see technical data sheet
