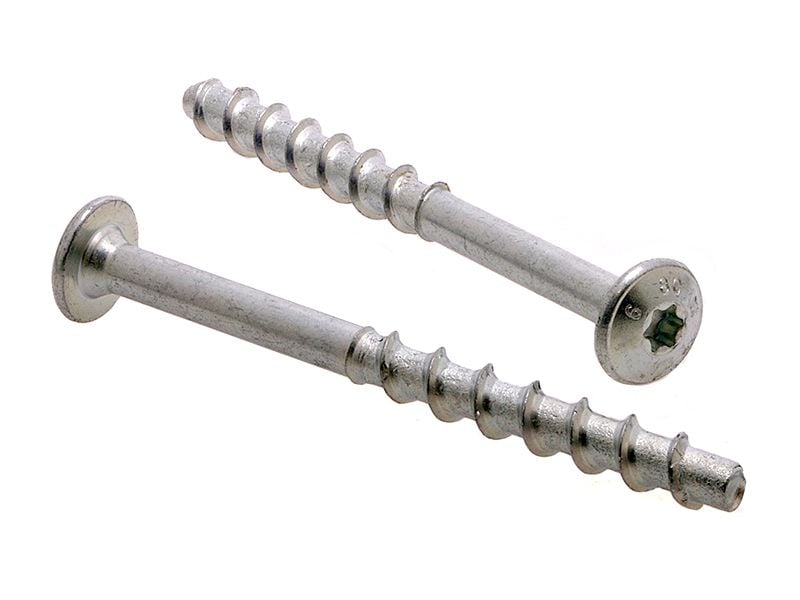

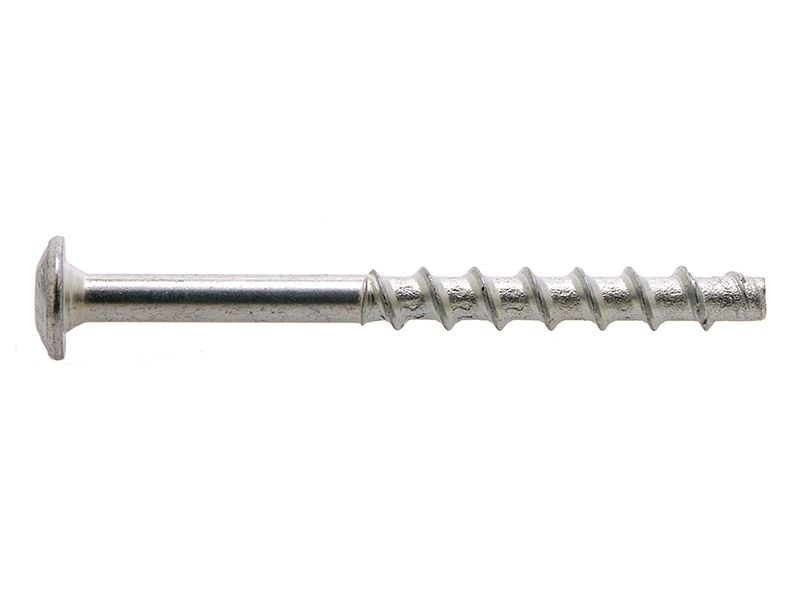

XSAB-Z Concrete Screw-Anchor Torx Button Zinc Seismic C1

XSAB-Z Concrete Screw-Anchor Torx Button Zinc Seismic C1

High Performance  ● ● ● ● ●

XSAB-Z screw-anchors are suited to flat fixing with a high-quality look. The torx drive pan head anchor provides reliable installation and maximum clamping force from the large under head surface. These high-performance concrete anchors have a range of acceptable embedment depths and are seismic* rated. The approved range of embedments enables subsequent alignment of fixture.

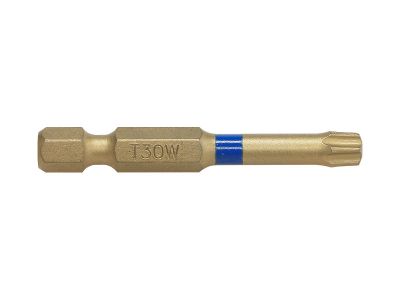

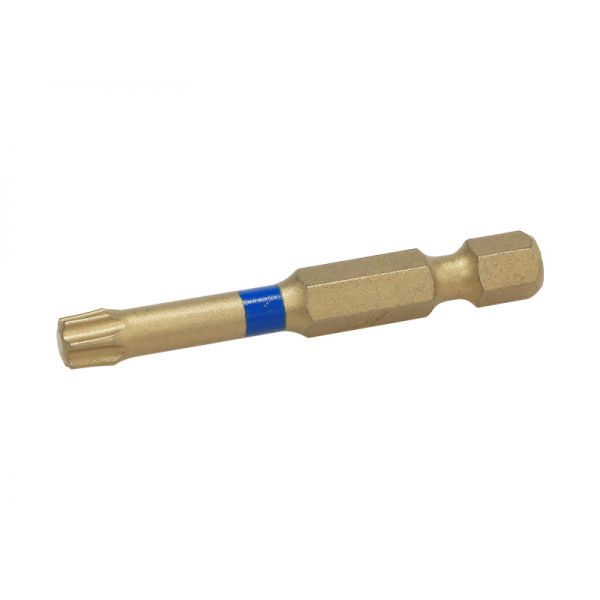

Screw-anchors cut a positive thread in the concrete when installed. XSAB-Z are ideal for permanent fixings however they are fully removable, installation can be with the use of a impact screwdriver using a T30 bit.

The advantage of the ETA assessment allows for use in critical application under guidance of the NCC.

TIERED PRICING
AS 5216
ETA ASSEMENT
$88.55
  • Buy 5 for $73.80 each and save 17%
  • Buy 10 for $63.25 each and save 29%
$111.40
  • Buy 5 for $99.00 each and save 12%
  • Buy 10 for $89.10 each and save 21%
Order Here
Item Unit(s) EX.GST QTY
Item Pack Qty.- $ Ex. GST -
BoxVOLUME DISCOUNT:
Close
Qty.
Add line
Product List
SKU Item Rec Max Fix Drv Bx. Qty. Crt. Qty.
SKU 1XSABZ06050 Item 6 x 50mm XSAB-Z Rec Max Fix 10mm Drv T30 Bx. Qty. 100 Crt. Qty.
SKU 1XSABZ06080 Item 6 x 80mm XSAB-Z Rec Max Fix 40mm Drv T30 Bx. Qty. 100 Crt. Qty.
Downloads

Application

  • Anchor moderate to heavy loads in cracked and non-cracked concrete
  • Railings and handrails, shelves, wooden beams, supports and braces, brackets, pipeline and cable routes, suspended ceilings and more
  • Without assessment can be used in compression-resistant natural stone and solid brick

Advantages

  • European Technical Assessment (ETA) for anchoring in cracked and non-cracked concrete (Option 1)
  • With up to variable embedment depths, it is versatile for high loads or low levels of drilling and installation effort
  • Approved for use under seismic* conditions of category C1 for embedment depth hnom3
  • Approved for use under fire exposure
  • Small drill hole diameter, small edge and axial gap
  • No curing times – can be loaded immediately
  • Can be fully removed

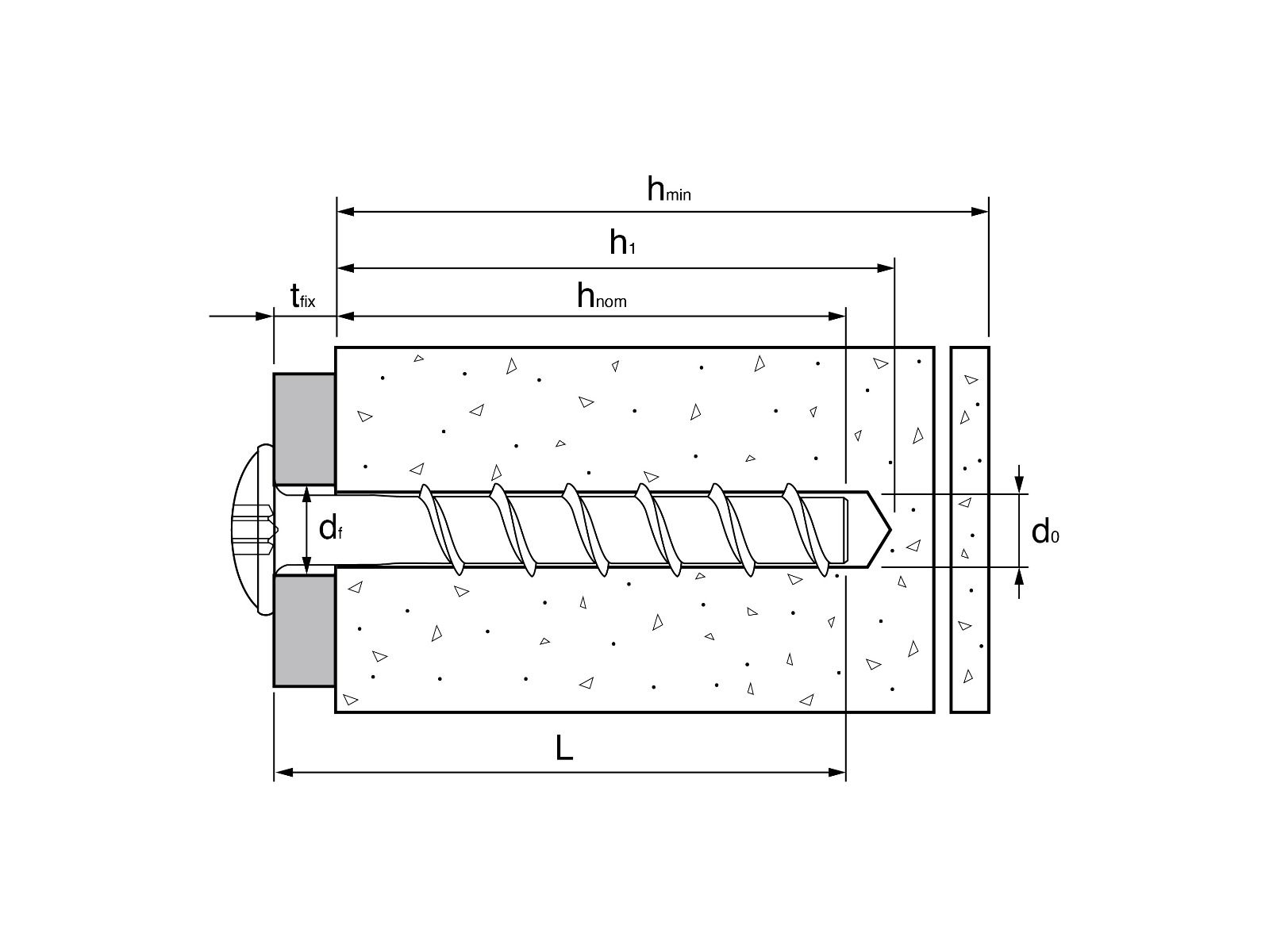

Installation

Embedment Depth 1 (hnom1): low level of drilling and installation effort / large fixture thickness / reduced loads

Embedment Depth 2 (hnom2): medium level of drilling and installation effort / medium fixture thickness / moderate load

Embedment Depth 3 (hnom3): higher level of drilling and installation effort / small fixture thickness / heavy loads


AFOS Free Download

AFOS: Need assistance when designing with NCC compliant anchors?  Get the latest software developed for engineers – specify the correct anchors to AS 5216.  Click here to find out more.

*For approved anchors in seismic conditions please see technical data sheet
