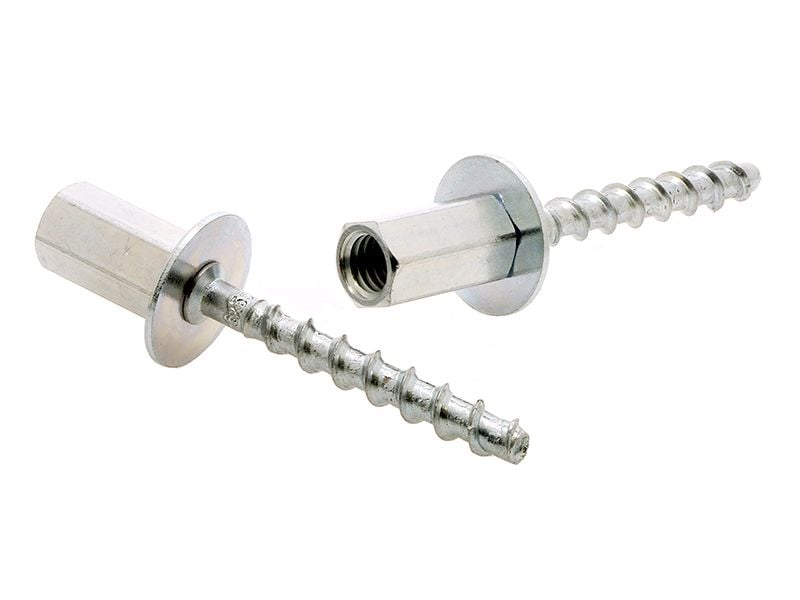

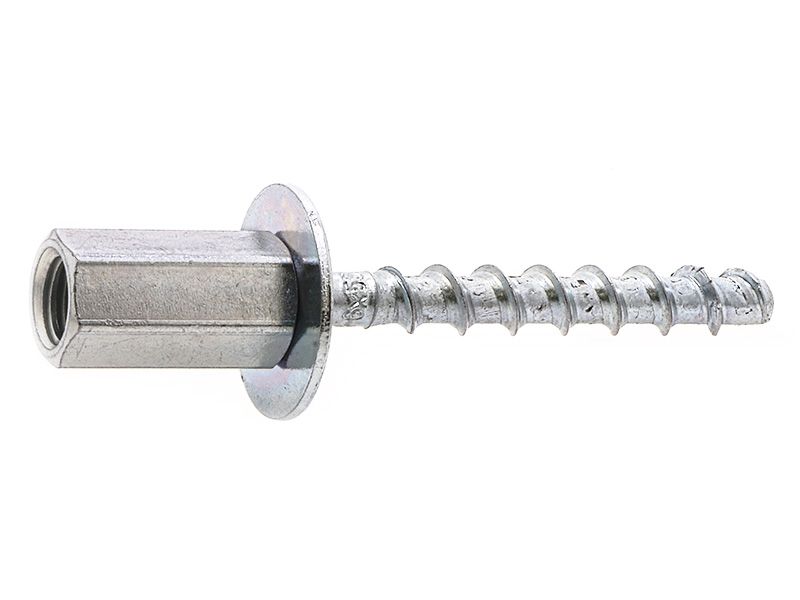

XSAI-Z Rod Hanger Screw-Anchor Zinc Seismic C1
XSAI-Z Rod Hanger Screw-Anchor Zinc Seismic C1
X-SERIES High Performance ● ● ● ● ●
For the direct attachment of threaded rod, either for suspended ceilings, and services including electrical, piping and HVAC systems. With the unique hex coupler a connecting thread can be made with either M8 and or M10 thread.
A small non-expanding anchor with high performance values and seismically* rated to C1 conditions. At the smallest drill depth possible of 40mm to the maximum load bearing depth of 60mm.
Availability:
Require a Quote?
Instant quotes online are available to all our trade customers using Trade Portal.
Login and simply add items into your cart. View and edit your cart before pressing Submit Quote. Quotes will be available instantly online.
Description
Application
- Anchor moderate to heavy loads in cracked and non-cracked concrete
- Railings and handrails, shelves, wooden beams, supports and braces, brackets, pipeline and cable routes, suspended ceilings and more
- Without assessment can be used in compression-resistant natural stone and solid brick
Advantages
- European Technical Assessment (ETA) for anchoring in cracked and non-cracked concrete (Option 1)
- Approved for use under seismic* conditions of category C1 for embedment depth hnom3
- Approved for use under fi re exposure
- Small drill hole diameter, small edge and axial gap
- No curing times – can be loaded immediately
- Can be fully removed
*For approved anchors in seismic conditions please see technical data sheet
Product List
| SKU | Description | Availability | List Price | Pack |
|---|---|---|---|---|
| Pack: |
More Information
| Material Grade | Carbon Steel |
|---|---|
| Coating & Plating | Zinc Clear |
| Head Type | Internally Threaded |
| Driver Type | Hex Sockets |
| For use with | Concrete (cracked), Concrete (un-cracked), Hollow Core Concrete, Masonry Solid Block |
| Setting Conditions | Hammer Drilling, Close to Edge, Overhead, Removable |
| Approvals & Documents | ETA Certification, Fire Resistance |
| Compliance | AS 5216:2021, Cyclic Loads, Seismic C1 |
| Software | AFOS® Anchor Design Software |

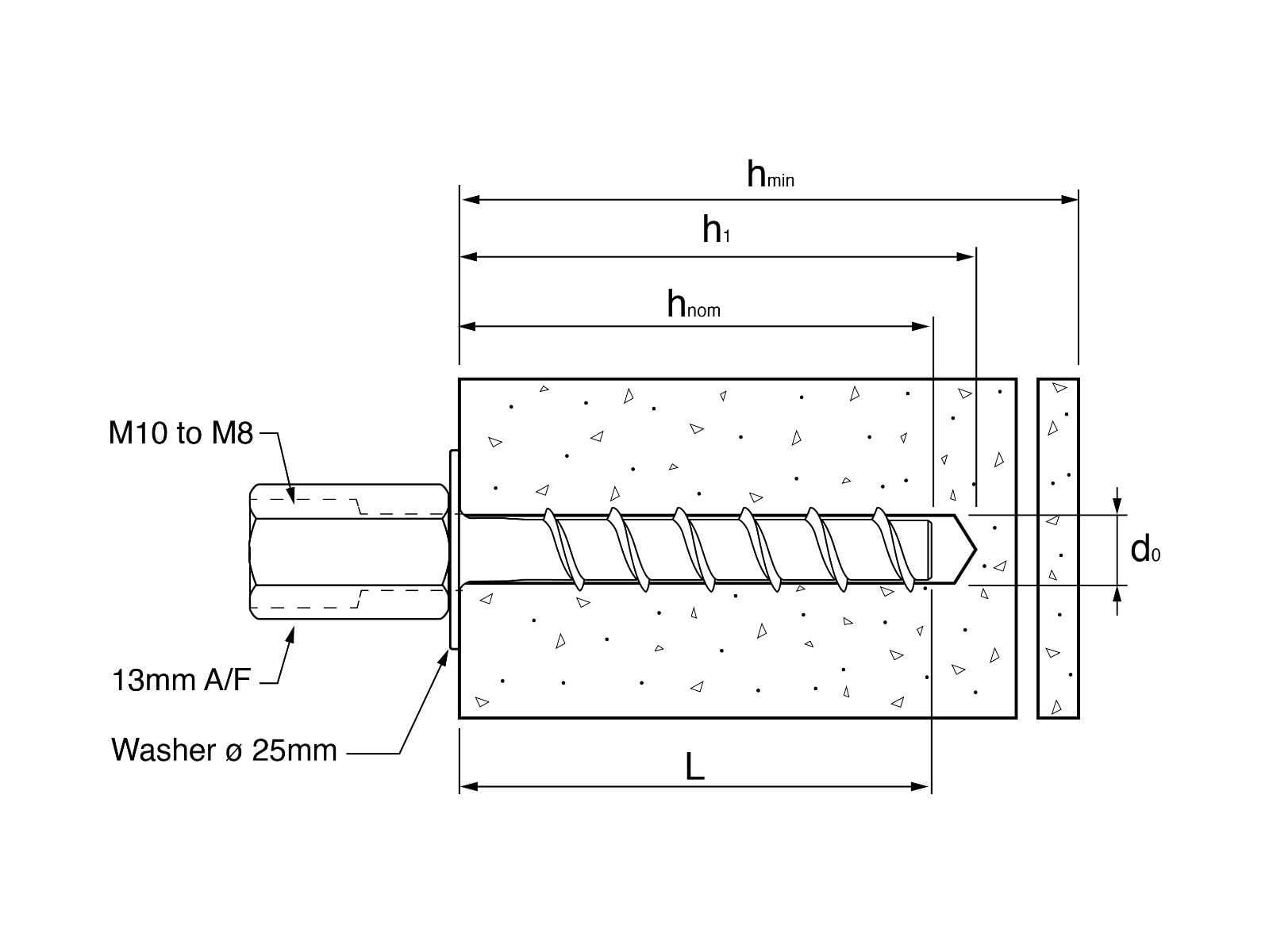

Technical Information
| SKU | Item | Make Thread | Male Thread | Socket | Item |
|---|---|---|---|---|---|
| 1077.0060035 | 6 x 35mm XSAI-Z | M8/M10 | M8/M10 | 13mm | 6 x 35mm XSAI-Z Dual-Fit |
| 1077.0060055 | 6 x 55mm XSAI-Z | M8/M10 | M8/M10 | 13mm | 6 x 55mm XSAI-Z Dual-Fit |
