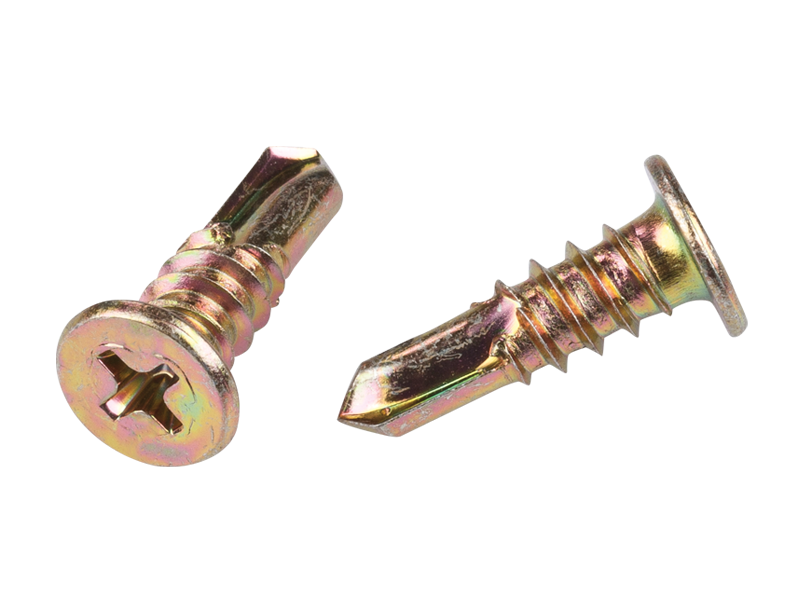

Flat Top Self Drilling Screw Zinc
Flat Top Self Drilling Screw Zinc
These flat top head screws are designed to eliminate bulging underneath your plasterboard. Suitable for light gauge steel connections with the self-drilling screw point. They will provide the best possible clamping of material up to 3mm thick.
Availability:
Require a Quote?
Instant quotes online are available to all our trade customers using Trade Portal.
Login and simply add items into your cart. View and edit your cart before pressing Submit Quote. Quotes will be available instantly online.
Description
INSTALLATION
- Drill Capacity: 1.5-3mm of Steel
- Driver Type: Philips P2
- Installation Speed: 2300-2500 RPM Max Drill Speed

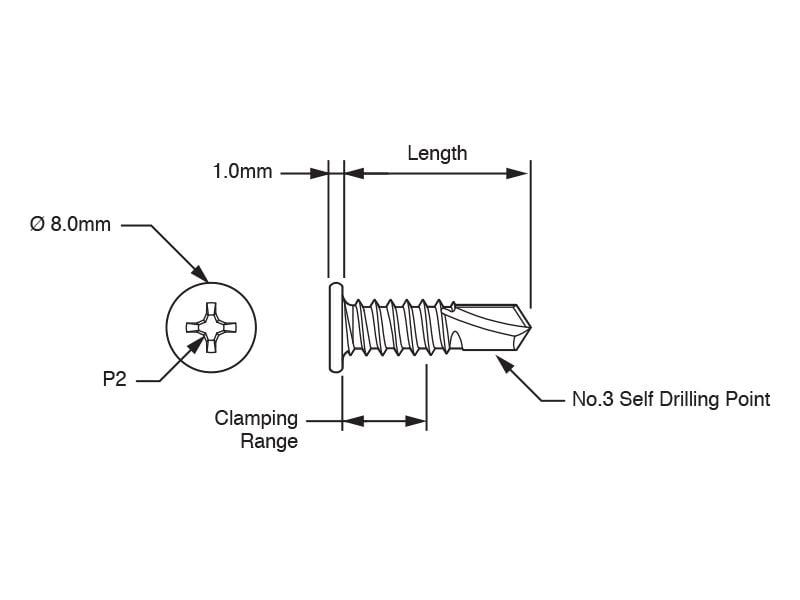

PHYSICAL CHARACTERISTICS
- Head Type: Flat
- Point Type: Self Drilling Point
- Material: Carbon Steel
- Finish: Zinc Yellow
- Head Dia: 8mm
- Head Height: 1mm
Product List
| SKU | Description | Availability | List Price | Pack |
|---|---|---|---|---|
| Pack: |
More Information
| Delivery | SHIPS IN 1 - 2 DAYS |
|---|---|
| Coating & Plating | Zinc Yellow |
| Material Grade | Carbon Steel |
| Head Type | Flat Top |
| Driver Type | Philips Bit |
| Diameter / Gauge | 10g |
| Point Type | Drill Point No.3 |
| Thread Type | Coarse |
| Application | Steel-to-Steel Self Drilling |
Technical Information
| SKU | Gauge x Length | Coating | Driver Bit | Drill Range | Gauge x Length |
|---|---|---|---|---|---|
| 1098.0100016 | 10-16 x 16mm | Zinc Yellow | Ph2 | 1.50 - 3.00 | 10-16 x 16mm |
