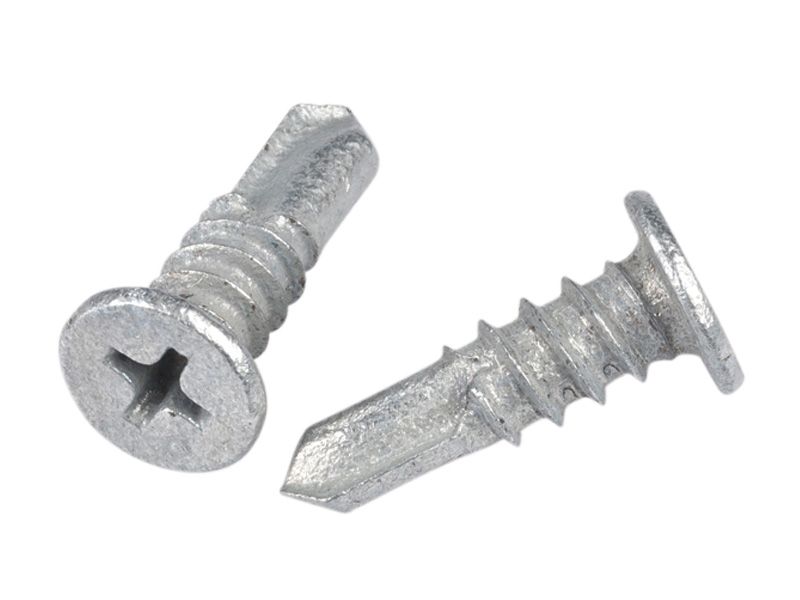

Flat Top Self Drilling Screw Class 3

Flat Top Self Drilling Screw Class 3

These flush top head screws are designed to eliminate bulging underneath your plasterboard. Suitable for light gauge steel connections with the self-drilling screw point. They will provide the best possible clamping of material up to 3mm thick.

SKU 3B.061
Availability:
Pack:
Sub-total: / ex. gst.
Description

INSTALLATION

  • Drill Capacity: 1.5-3mm
  • Driver Type: Philips P2
  • Installation Speed: 2300-2500 RPM Max Drill Speed

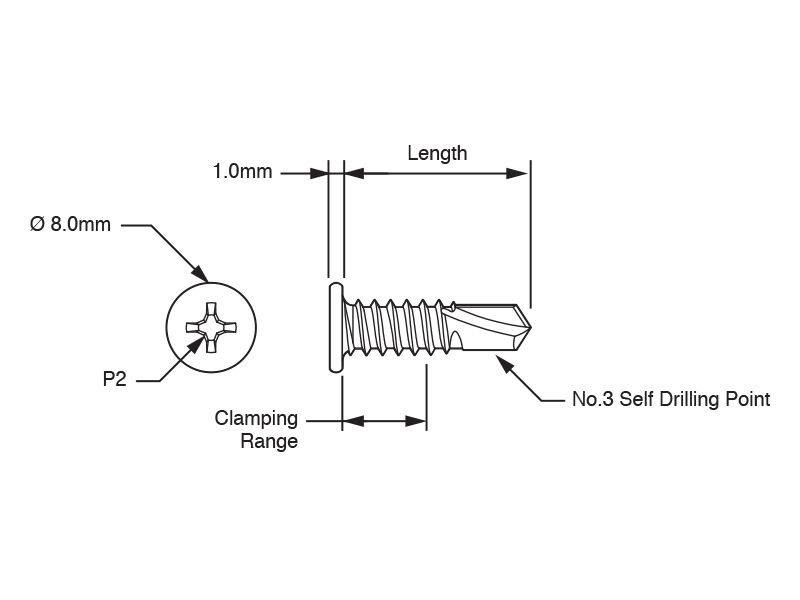

PHYSICAL CHARACTERISTICS

  • Head Type: Flat Top
  • Point Type: Self Drilling point
  • Material: Carbon Steel
  • Finish: Class 3 Mechanical Galvanised
  • Head Dia: 8mm
  • Head Height: 1mm
Product List
SKU Description Availability List Price Pack
Pack:
More Information
More Information
Delivery SHIPS IN 1 - 2 DAYS
Coating & Plating Class 3 (Mech. Gal)
Material Grade Carbon Steel
Head Type Flat Top
Driver Type Philips
Diameter / Gauge 10g
Point Type Drill Point No.3
Thread Type Coarse
Application Steel-to-Steel Self Drilling
Technical Information
SKU Gauge x Length Coating Driver Bit Drill Range Gauge x Length
3DACC310016 10-16 x 16mm Class 3 Ph2 1.50 - 3.00 10-16 x 16mm
3DACC310030 10-16 x 30mm Class 3 Ph2 1.50 - 3.00 10-16 x 30mm
3DACC312025 12-14 x 25mm Class 3 Ph2 1.50 - 3.00 12-14 x 25mm
