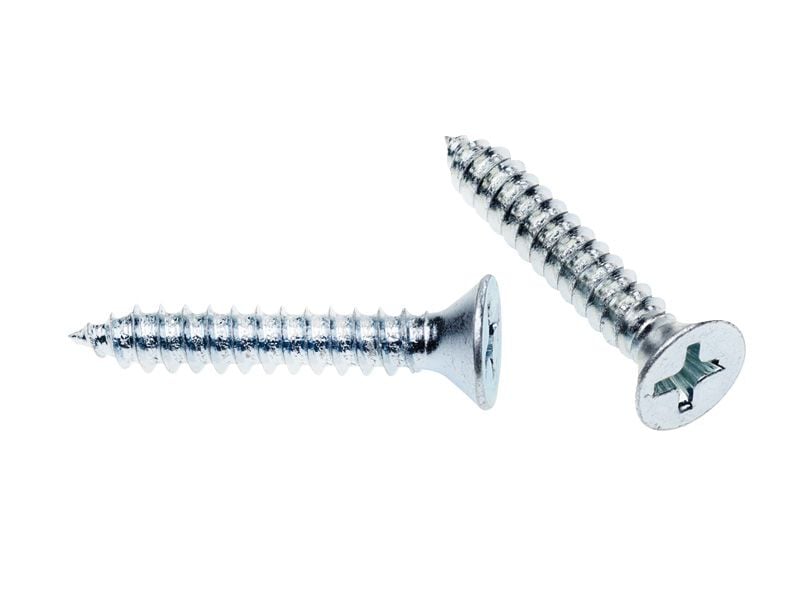

Countersunk Phillips Self Tapping Screws Zinc
Countersunk Phillips Self Tapping Screws Zinc
Large range available and in stock. We carry all common self tapping screws for cabinetry, joinery and other timber manufacturing.
Ideal for all laminate types, ply board, MDF and veneers, for the ultimate finish we recommend installation in a pre countersunk hole.
Screws are zinc plated and should be used for closed or internal dry conditions for wets area or exposure the elements please see our stainless steel range.
Install with a quality Phillips drill bit and drill driver.
Availability:
Require a Quote?
Instant quotes online are available to all our trade customers using Trade Portal.
Login and simply add items into your cart. View and edit your cart before pressing Submit Quote. Quotes will be available instantly online.
Description
INSTALLATION
- Drill Capacity: Soft timber, plywood, laminates, some plastics. Best for use in pre-drilled or punched holes in thin sheet metal.
- Driver Type: 4g (Philips P1), 6-10g (Philips P2), 12g (Philips P3)
- Installation Speed: N/A

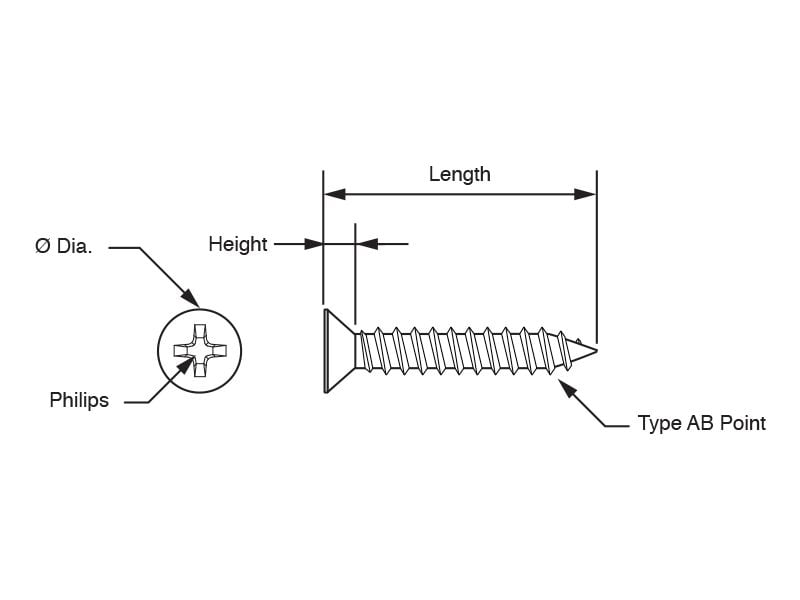

PHYSICAL CHARACTERISTICS
- Head Type: Countersunk Head
- Point Type: AB
- Material: Carbon Steel
- Finish: Zinc Plated
- Head Dia: 4g (5.8mm), 6g (6.6mm), 8g (7.9mm), 10g (8.9mm), 12g (10.7mm)
- Head Height: 4g (2.5mm), 6g (2.8mm), 8g (3.2mm), 10g (3.8mm), 12g (4.6mm)
Product List
| SKU | Description | Availability | List Price | Pack |
|---|---|---|---|---|
| Pack: |
More Information
| Delivery | SHIPS IN 1 - 2 DAYS |
|---|---|
| Coating & Plating | Zinc Clear |
| Material Grade | Carbon Steel |
| Head Type | Countersunk |
| Driver Type | Philips Bit |
| Diameter / Gauge | 4g, 6g, 8g, 10g, 12g |
| Point Type | Type AB (Gimlet Point) |
| Thread Type | Self Tapping |
Technical Information
| SKU | Gauge x Length | Finish | Driver Bit |
|---|---|---|---|
| 1178.0040006 | 4 x 1/4” | Zinc Plated | Ph1 |
| 1178.0040010 | 4 x 3/8” | Zinc Plated | Ph1 |
| 1178.0040012 | 4 x 1/2” | Zinc Plated | Ph1 |
| 1178.0040016 | 4 x 5/8” | Zinc Plated | Ph1 |
| 1178.0040020 | 4 x 3/4” | Zinc Plated | Ph1 |
| 1178.0060010 | 6 x 3/8” | Zinc Plated | Ph2 |
| 1178.0060012 | 6 x 1/2” | Zinc Plated | Ph2 |
| 1178.0060016 | 6 x 5/8” | Zinc Plated | Ph2 |
| 1178.0060020 | 6 x 3/4” | Zinc Plated | Ph2 |
| 1178.0060025 | 6 x 1” | Zinc Plated | Ph2 |
| 1178.0060032 | 6 x 1-1/4” | Zinc Plated | Ph2 |
| 1178.0060038 | 6 x 1-1/2” | Zinc Plated | Ph2 |
| 1178.0060050 | 6 x 2” | Zinc Plated | Ph2 |
| 1178.0080010 | 8 x 3/8” | Zinc Plated | Ph2 |
| 1178.0080012 | 8 x 1/2” | Zinc Plated | Ph2 |
| 1178.0080016 | 8 x 5/8” | Zinc Plated | Ph2 |
| 1178.0080020 | 8 x 3/4” | Zinc Plated | Ph2 |
| 1178.0080025 | 8 x 1” | Zinc Plated | Ph2 |
| 1178.0080032 | 8 x 1-1/4” | Zinc Plated | Ph2 |
| 1178.0080038 | 8 x 1-1/2” | Zinc Plated | Ph2 |
| 1178.0080045 | 8 x 1-3/4” | Zinc Plated | Ph2 |
| 1178.0080050 | 8 x 2” | Zinc Plated | Ph2 |
| 1178.0080065 | 8 x 2-1/2” | Zinc Plated | Ph2 |
| 1178.0100012 | 10 x 1/2” | Zinc Plated | Ph2 |
| 1178.0100016 | 10 x 5/8” | Zinc Plated | Ph2 |
| 1178.0100020 | 10 x 3/4” | Zinc Plated | Ph2 |
| 1178.0100025 | 10 x 1” | Zinc Plated | Ph2 |
| 1178.0100032 | 10 x 1-1/4” | Zinc Plated | Ph2 |
| 1178.0100038 | 10 x 1-1/2” | Zinc Plated | Ph2 |
| 1178.0100045 | 10 x 1-3/4” | Zinc Plated | Ph2 |
| 1178.0100050 | 10 x 2” | Zinc Plated | Ph2 |
| 1178.0100065 | 10 x 2-1/2” | Zinc Plated | Ph2 |
| 1178.0100075 | 10 x 3” | Zinc Plated | Ph2 |
| 1178.0120016 | 12 x 5/8” | Zinc Plated | Ph3 |
| 1178.0120020 | 12 x 3/4” | Zinc Plated | Ph3 |
| 1178.0120025 | 12 x 1” | Zinc Plated | Ph3 |
| 1178.0120032 | 12 x 1-1/4” | Zinc Plated | Ph3 |
| 1178.0120038 | 12 x 1-1/2” | Zinc Plated | Ph3 |
