Self Tapping 304 Stainless Steel Screws

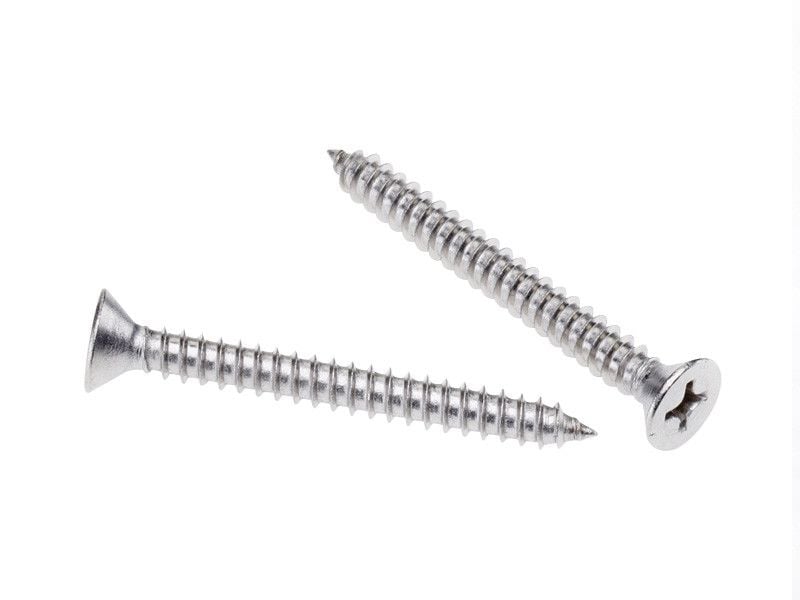

Stainless Steel Countersunk Phillips Self Tapping Screws

SKU 3SCUS
Availability:
Pack:
Sub-total: / ex. gst.
Description

INSTALLATION

  • Drill Capacity: Soft timber, plywood, laminates, some plastics. Best for use in pre-drilled or punched holes in thin sheet metal.
  • Driver Type: 6-10g (Philips P2), 12-14g (Philips P3)
  • Installation Speed: N/A

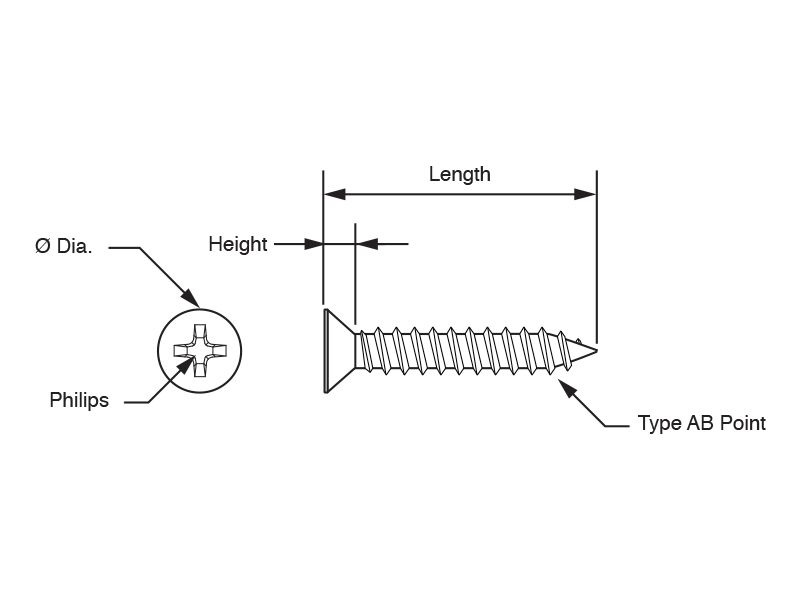

PHYSICAL CHARACTERISTICS

  • Head Type: Countersunk Head
  • Point Type: AB
  • Material: 304 Stainless Steel
  • Finish: N/A
  • Head Dia: 6g (7.1mm), 8g (8.4mm), 10g (9.7mm), 12g (11.1mm), 14g (12.8mm)
  • Head Height: 6g (2.1mm), 8g (2.5mm), 10g (3mm), 12g (3.95mm), 14g (4.55mm)
Product List
SKU Description Availability List Price Pack
Pack:
More Information
More Information
Delivery SHIPS IN 1 - 2 DAYS
Material Grade 304 Stainless Steel
Head Type Countersunk
Driver Type Philips Bit
Diameter / Gauge 6g, 8g, 10g, 12g, 14g
Point Type Type AB (Gimlet Point)
Thread Type Self Tapping
Technical Information
SKU Gauge x Length Material Driver Bit Gauge x Length
1176.0060010 6 x 3/8” Gr304 Ph2 6 x 3/8”
1176.0060012 6 x 1/2” Gr304 Ph2 6 x 1/2”
1176.0060016 6 x 5/8” Gr304 Ph2 6 x 5/8”
1176.0060020 6 x 3/4” Gr304 Ph2 6 x 3/4”
1176.0060025 6 x 1” Gr304 Ph2 6 x 1”
1176.0060032 6 x 1-1/4” Gr304 Ph2 6 x 1-1/4”
1176.0060038 6 x 1-1/2” Gr304 Ph2 6 x 1-1/2”
1176.0080012 8 x 1/2” Gr304 Ph2 8 x 1/2”
1176.0080016 8 x 5/8” Gr304 Ph2 8 x 5/8”
1176.0080020 8 x 3/4” Gr304 Ph2 8 x 3/4”
1176.0080025 8 x 1” Gr304 Ph2 8 x 1”
1176.0080032 8 x 1-1/4” Gr304 Ph2 8 x 1-1/4”
1176.0080038 8 x 1-1/2” Gr304 Ph2 8 x 1-1/2”
1176.0080045 8 x 1-3/4” Gr304 Ph2 8 x 1-3/4”
1176.0080050 8 x 2” Gr304 Ph2 8 x 2”
1176.0100012 10 x 1/2” Gr304 Ph2 10 x 1/2”
1176.0100016 10 x 5/8” Gr304 Ph2 10 x 5/8”
1176.0100020 10 x 3/4” Gr304 Ph2 10 x 3/4”
1176.0100025 10 x 1” Gr304 Ph2 10 x 1”
1176.0100032 10 x 1-1/4” Gr304 Ph2 10 x 1-1/4”
1176.0100038 10 x 1-1/2” Gr304 Ph2 10 x 1-1/2”
1176.0100045 10 x 1-3/4” Gr304 Ph2 10 x 1-3/4”
1176.0100050 10 x 2” Gr304 Ph2 10 x 2”
1176.0100065 10 x 2-1/2” Gr304 Ph2 10 x 2-1/2”
1176.0100075 10 x 3” Gr304 Ph2 10 x 3”
1176.0120016 12 x 5/8” Gr304 Ph3 12 x 5/8”
1176.0120020 12 x 3/4” Gr304 Ph3 12 x 3/4”
1176.0120025 12 x 1” Gr304 Ph3 12 x 1”
1176.0120032 12 x 1-1/4” Gr304 Ph3 12 x 1-1/4”
1176.0120038 12 x 1-1/2” Gr304 Ph3 12 x 1-1/2”
1176.0120050 12 x 2” Gr304 Ph3 12 x 2”
1176.0140020 14 x 3/4” Gr304 Ph3 14 x 3/4”
1176.0140025 14 x 1” Gr304 Ph3 14 x 1”
1176.0140032 14 x 1-1/4” Gr304 Ph3 14 x 1-1/4”
1176.0140038 14 x 1-1/2” Gr304 Ph3 14 x 1-1/2”
1176.0140050 14 x 2” Gr304 Ph3 14 x 2”
1176.0140075 14 x 3” Gr304 Ph3 14 x 3”
