Cage Splicing U-Bolts with Keeper Plates
Cage Splicing U-Bolts with Keeper Plates

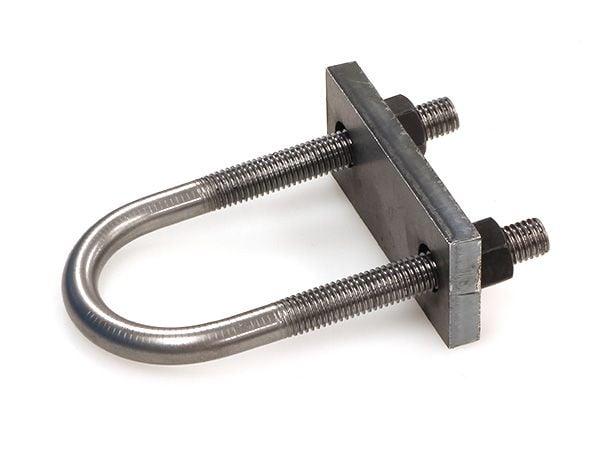

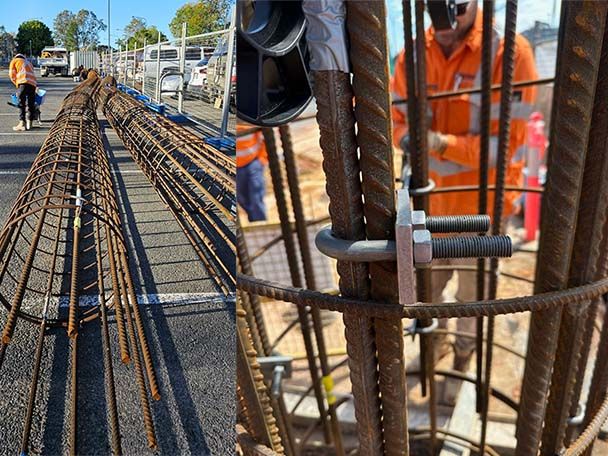

Manufactured U-bolt assembly with keeper plates and CL8 hex nuts for rebar cage lapping and splicing. Common applications include bored pile cage lapping.
U-bolts are made to specific internal dimensions to allow correct splicing of matching or differing rebar sizes. Refer to the technical data sheet to select the correct u-bolt and plate size.
- Available in M12 and M16
- U-bolts: Plain Gr4.6 Mild-steel,
- Keeper Plates: 10mm Gr250 steel
- Hex Nuts: AS1112 / Class 8 Plain
Availability:
Require a Quote?
Instant quotes online are available to all our trade customers using Trade Portal.
Login and simply add items into your cart. View and edit your cart before pressing Submit Quote. Quotes will be available instantly online.
Description
Rebar Size
AF1 Set Lapping Rebar:
N40 - N40 / N40 - N36 / N40 - N32 / N40 - N28 / N40 - N24 / N36 - N32 / N36 - N24
AF2 Set Lapping Rebar:
N24 - N28 / N24 - N24
Product List
| SKU | Description | Availability | List Price | Pack |
|---|---|---|---|---|
| Pack: |
More Information
| Material Grade | 4.6 Mild Steel |
|---|---|
| Coating & Plating | Plain / Unplated |
| Nut Type | Hex Nuts |
| Diameter / Gauge | M12, M16 |
| Thread Type | Metric |
| Use for | Formwork, Foundation |
Technical Information

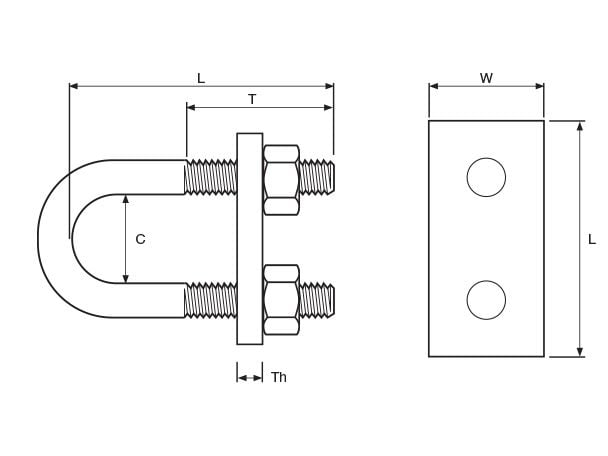

| SKU | Item | Plate |
|---|---|---|
| 1479.1204512 | M12 - 45 x 123mm AF1 | 42 x 98 x 10mm |
| 1479.1203309 | M12 - 33 x 95mm AF2 | 42 x 86 x 10mm |
| 1479.1604512 | M16 - 45 x 123mm AF1 | 54 x 114 x 10mm |
| 1479.1603309 | M16 - 33 x 95mm AF2 | 54 x 102 x 10mm |
