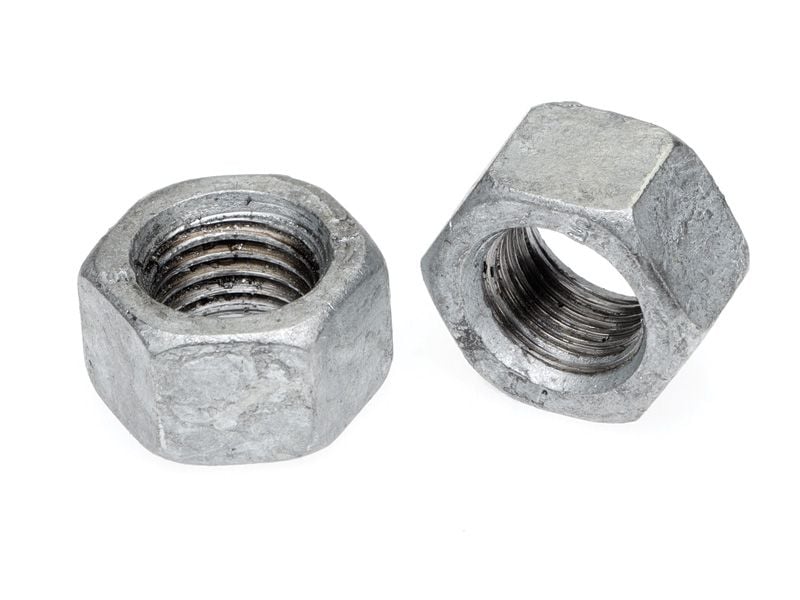

Hex Nut Gal Metric Class 8 ISO4032/AS1112.1
Hex Nut Gal Metric Class 8 ISO4032/AS1112.1
- Hexagonal nut metric
- Class 8 | ISO 4032 / AS 1112.1
- Galvanised
Availability:
Require a Quote?
Instant quotes online are available to all our trade customers using Trade Portal.
Login and simply add items into your cart. View and edit your cart before pressing Submit Quote. Quotes will be available instantly online.
Product List
| SKU | Description | Availability | List Price | Pack |
|---|---|---|---|---|
| Pack: |
More Information
| Delivery | SHIPS IN 1 - 2 DAYS |
|---|---|
| Material Grade | Carbon Steel |
| Coating & Plating | Galvanised |
| Driver Type | Hex Sockets |
| Nut Type | Hex Nuts |
| Diameter / Gauge | M6, M8, M10, M12, M16, M20, M24, M30, M33, M36, M42, M48, M56, M64 |
| Thread Type | Metric |
Technical Information

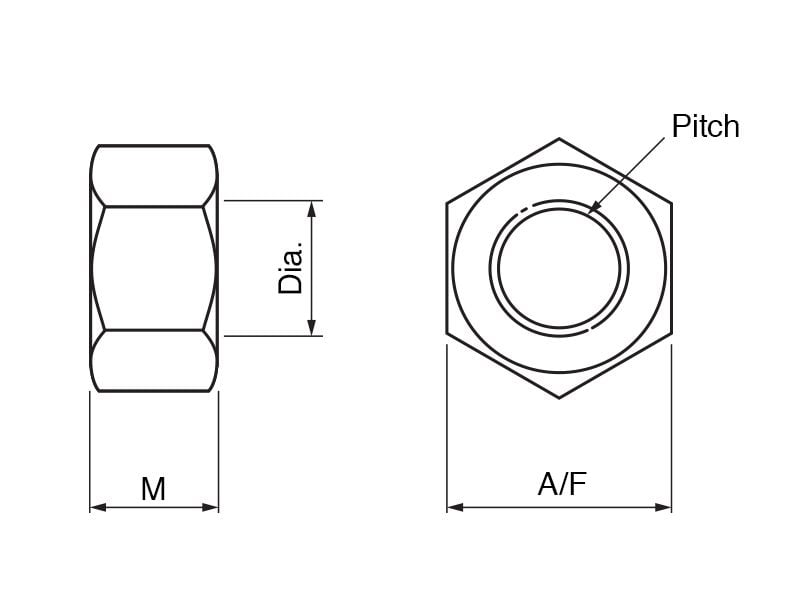

| SKU | Size-Pitch | M (mm) | A/F (mm) |
|---|---|---|---|
| 1492.0060000 | M6-1 | 5.2mm | 10mm |
| 1492.0080000 | M8-1.25 | 6.80mm | 13mm |
| 1492.0100000 | M10-1.5 | 8.40mm | 17mm |
| 1492.0120000 | M12-1.75 | 10.8mm | 19mm |
| 1492.0160000 | M16-2 | 14.80mm | 24mm |
| 1492.0200000 | M20-2.5 | 18.0mm | 30mm |
| 1492.0240000 | M24-3 | 21.50mm | 36mm |
| 1492.0300000 | M30-3.5 | 25.60mm | 46mm |
| 1492.0330000 | M33-3.5 | 28mm | 50mm |
| 1492.0360000 | M36-4 | 31.0mm | 55mm |
| 1492.0420000 | M42-4.5 | 34.0mm | 65mm |
| 1492.0480000 | M48-5 | 38.0mm | 75mm |
| 1492.0560000 | M56-5.5 | 44mm | 85mm |
| 1492.0640000 | M64-6.0 | 50mm | 95mm |
