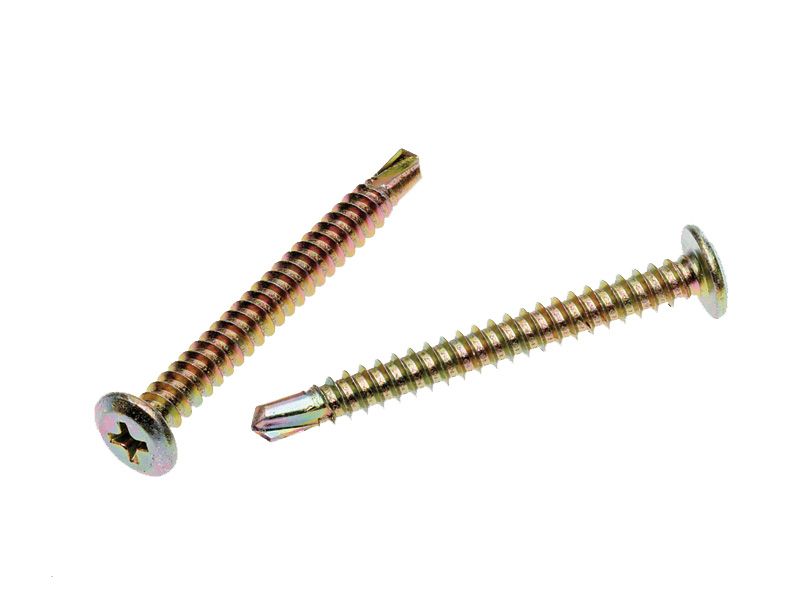

Wafer Hd Zinc Yellow Self Drilling Screw
Wafer Hd Zinc Yellow Self Drilling Screw
Availability:
Require a Quote?
Instant quotes online are available to all our trade customers using Trade Portal.
Login and simply add items into your cart. View and edit your cart before pressing Submit Quote. Quotes will be available instantly online.
Description
INSTALLATION
- Drill Capacity: Corse Thread (0.75-3.5mm of Steel), Fine Thread (1-5mm of Steel)
- Driver Type: Philips P2
- Installation Speed: 2300-2500 RPM Max Drill Speed

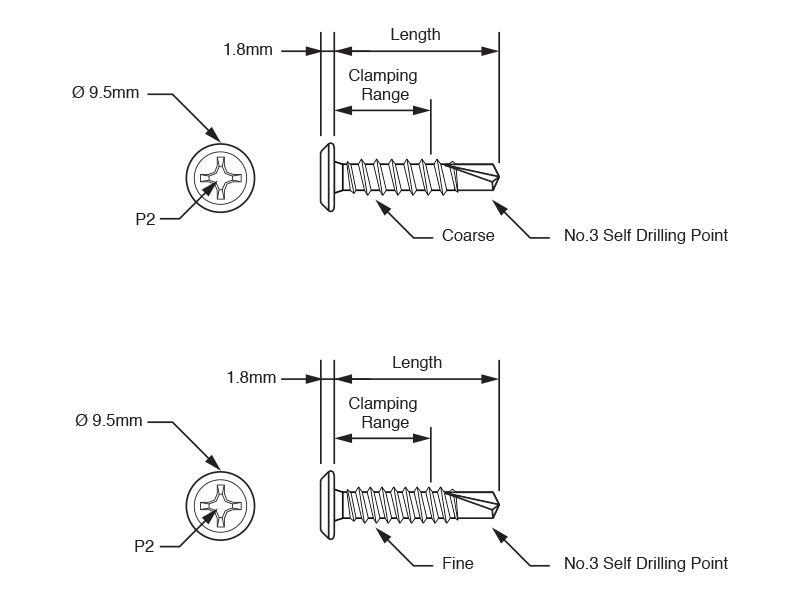

PHYSICAL CHARACTERISTICS
- Head Type: Wafer
- Point Type: Self Drilling Point
- Material: Carbon Steel
- Finish: Zinc Yellow
- Head Dia: 9.5mm
- Head Height: 1.8mm
Product List
| SKU | Description | Availability | List Price | Pack |
|---|---|---|---|---|
| Pack: |
More Information
| Delivery | SHIPS IN 1 - 2 DAYS |
|---|---|
| Coating & Plating | Zinc Yellow |
| Material Grade | Carbon Steel |
| Head Type | Wafer |
| Driver Type | Philips |
| Diameter / Gauge | 10g |
| Point Type | Drill Point No.3 |
| Application | Steel-to-Steel Self Drilling |
Technical Information
| SKU | Gauge x Length | Thread Type | Driver Bit | Thread Type | Gauge x Length |
|---|---|---|---|---|---|
| 3DWCY10016 | 10-16 x 16mm | Coarse Thread | Ph2 | Coarse | 10-16 x 16mm |
| 3DWCY10022 | 10-16 x 22mm | Coarse Thread | Ph2 | Coarse | 10-16 x 22mm |
| 3DWFY10022 | 10-24 x 22mm | Fine Thread | Ph2 | Fine | 10-24 x 22mm |
| 3DWCY10030 | 10-16 x 30mm | Coarse Thread | Ph2 | Coarse | 10-16 x 30mm |
| 3DWFY10030 | 10-24 x 30mm | Fine Thread | Ph2 | Fine | 10-24 x 30mm |
| 3DWCY10040 | 10-16 x 40mm | Coarse Thread | Ph2 | Coarse | 10-16 x 40mm |
| 3DWFY10040 | 10-24 x 40mm | Fine Thread | Ph2 | Fine | 10-24 x 40mm |
