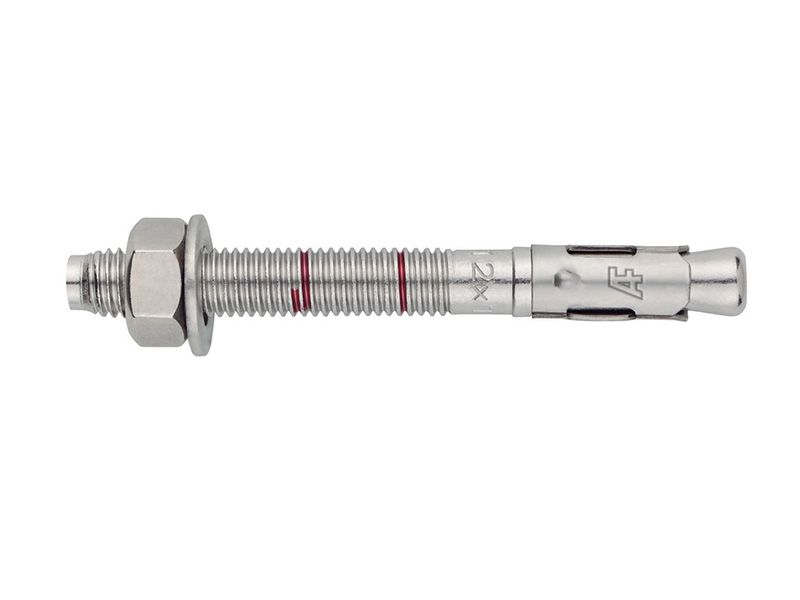

WA-S7 Wedge Anchor 316 (A4) Stainless Steel
WA-S7 Wedge Anchor 316 (A4) Stainless Steel
CLEARANCE ITEM | LIMITED STOCK
WA-S7 anchors are made from marine grade 316 (A4) stainless steel – ideal for internal or external use and exposure to industrial or coastal environments. Expansion anchors are east to install and can fix high load installed under controlled conditions.
- ETA assessed option 7 anchor
- 316 (A4) stainless steel, with 316 (A4) stainless steel expansion clip
Availability:
Require a Quote?
Instant quotes online are available to all our trade customers using Trade Portal.
Login and simply add items into your cart. View and edit your cart before pressing Submit Quote. Quotes will be available instantly online.
Description
CHARACTERISTICS AND BENEFITS
- Easy installation.
- Use in un-cracked concrete.
- Use for medium-heavy duty loads.
- Pre-install in concrete or through fixture.
- Variety of lengths and diameters: flexibility in assembly.
- For static and quasi-static loads.
- Two installation depths in M8, M10 and M12 allowing the use with thick anchor plates.
APPLICATIONS
- Coastal areas.
- Industrial areas.
- Food industries.
- Curtain walls.
- Fixings in tunnels.
- Pipe supports.
- Rehabilitation of facades.
- For outdoor use in general.
Product List
| SKU | Description | Availability | List Price | Pack |
|---|---|---|---|---|
| Pack: |
More Information
| Delivery | SHIPS IN 1 - 2 DAYS |
|---|---|
| Material Grade | 316 Stainless Steel |
| Coating & Plating | Plain / Unplated |
| Driver Type | Hex Sockets |
| Thread Type | Metric |
| For use with | Concrete (un-cracked) |
| Setting Conditions | Dustless Drilling, Hammer Drilling, Overhead, Removable, Through Fixture |
| Approvals & Documents | ETA Certification, Fire Resistance |
| Compliance | AS 5216:2021, Cyclic Loads, VicRoads BTN 008 |
| Software | AFOS® Anchor Design Software |
Technical Information
| SKU | Dia. x Length | Fixture Max. | Embed Min. |
|---|---|---|---|
| 1012.0080065 | M8 x 65mm WA-S7 | 7 | 47mm |
| 1012.0100115 | M8 x 115mm WA-S7 | 44 | 60 |
| 1012.0100090 | M10 x 90mm WA-S7 | 10 | 67 |
| 1012.0120120 | M10 x 120mm WA-S7 | 40 | 67 |
| 1012.0120100 | M12 x 100mm WA-S7 | 6 | 77 |
| 1012.0120140 | M12 x 140mm WA-S7 | 46 | 77 |
