WA2-S1 Seismic C1 Wedge Anchors

Skip to the beginning of the images gallery

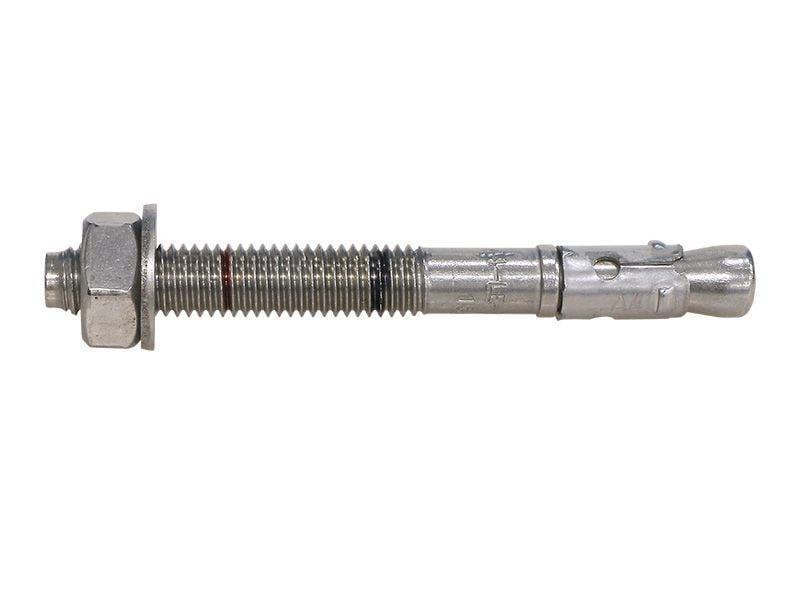

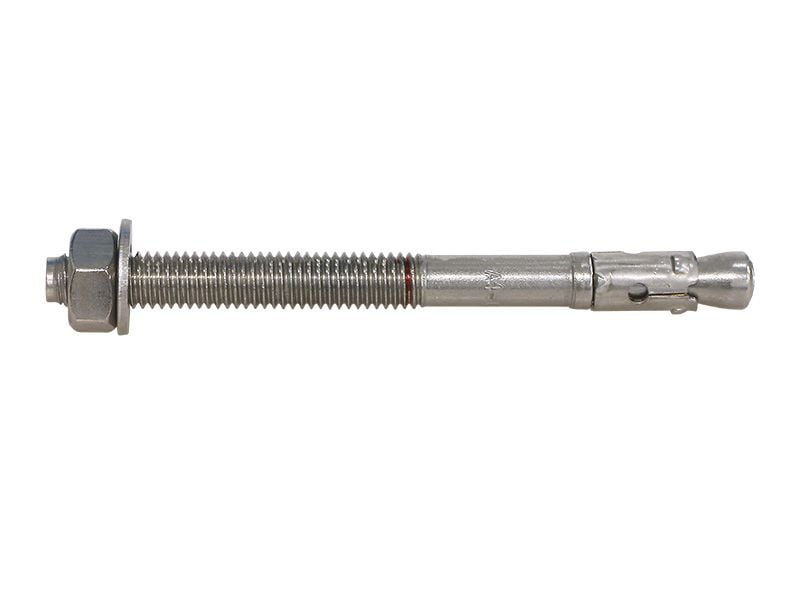

WA2-S1 Wedge Anchor 316 (A4) Stainless Steel

The new WA2-S1 provides an economical advantage over its other 316 stainless steel options. A well-performing, highly flixible anchor for the smaller of applications. Wedge anchors provide a great through-bolt solution for anchoring, with ease of installation.

On longer anchors a reduced drill depth will remain compliant – this allows the installer greater felxbility when accounting for change in levels. This range is indicated by the 2 coloured bands.

High Performance
Approved for cracked and un-cracked concrete
C1 seismic rated at the standard drill depth (red marker)
Reduced drill depths when reuired
R30 - R120 fire rated, tunnel specific fire testing reports available
Supported by AFOS® anchor design software

SKU 1071.0

Availability:

Pack:

Buy

Sub-total: / ex. gst.

Grouped product items
Product Name	Qty
M8 x 60mm WA2-S1 C1 Seismic Rated Wedge Anchor S/S 316 From $110.55
M8 x 95mm WA2-S1 C1 Seismic Rated Wedge Anchor S/S 316 From $132.90
M8 x 115mm WA2-S1 C1 Seismic Rated Wedge Anchor S/S 316 From $90.83
M10 x 95mm WA2-S1 C1 Seismic Rated Wedge Anchor S/S 316 From $90.10
M10 x 115mm WA2-S1 C1 Seismic Rated Wedge Anchor S/S 316 From $91.86
M12 x 105mm WA2-S1 C1 Seismic Rated Wedge Anchor S/S 316 From $134.94
M12 x 125mm WA2-S1 C1 Seismic Rated Wedge Anchor S/S 316 From $146.50
M12 x 145mm WA2-S1 C1 Seismic Rated Wedge Anchor S/S 316` From $153.11

Build A Quote?

Store Item

SKU:

Description

Benefits

Fast and easy installation
The highest performance parameters
Resistance under fire exposure R30 - R120
New improved flexible edge and spacing values

Application

Installation of façade steel substructures in urban and industrial.
Machine and device installation, which are subject to permanently damp internal conditions.
Installation of railings, handrails, balustrades in both interior and exterior.
Anchoring of base plates, consoles, cantilevers in both internal and external conditions.
Fixings of steel construction to concrete structural components inside and also outside of buildings.

Product List

SKU	Description	Availability	List Price	Pack
				Pack:

More Information

More Information
Material Grade	316 Stainless Steel
Coating & Plating	Plain / Unplated
Diameter / Gauge	M8, M10, M12
For use with	Concrete (cracked), Concrete (un-cracked)
Setting Conditions	Dustless Drilling, Hammer Drilling, Close to Edge, Overhead, Through Fixture
Approvals & Documents	ETA Certification, Fire Resistance
Compliance	AS 5216:2021, Cyclic Loads, Seismic C1, Swiss Shock Load Approval, VicRoads BTN 008
Software	AFOS® Anchor Design Software
Use for	Facade & Cladding, Handrails & Balustrade, HVAC, Machinery Assembly, Marine & Pool Areas, Outdoor Structure, Suspension & Gantry

Technical Information

SKU	Item	Fix. Min / Max [mm]	Standard Drill Depth	Reduced Drill Depth
1071.0080060	M8 x 60mm WA2-S1	5mm / -	52mm	-
1071.0080095	M8 x 95mm WA2-S1	40mm / -	52mm	-
1071.0080115	M8 x 115mm WA2-S1	60mm / -	52mm	-
1071.0100095	M10 x 95mm WA2-S1	15mm / 35mm	74mm	54mm
1071.0100115	M10 x 115mm WA2-S1	35mm / 55mm	74mm	54mm
1071.0120105	M12 x 105mm WA2-S1	5mm / 25mm	88mm	68mm
1071.0120125	M12 x 125mm WA2-S1	25mm / 45mm	88mm	68mm
1071.0120145	M12 x 145mm WA2-S1	45mm / 65mm	88mm	68mm
