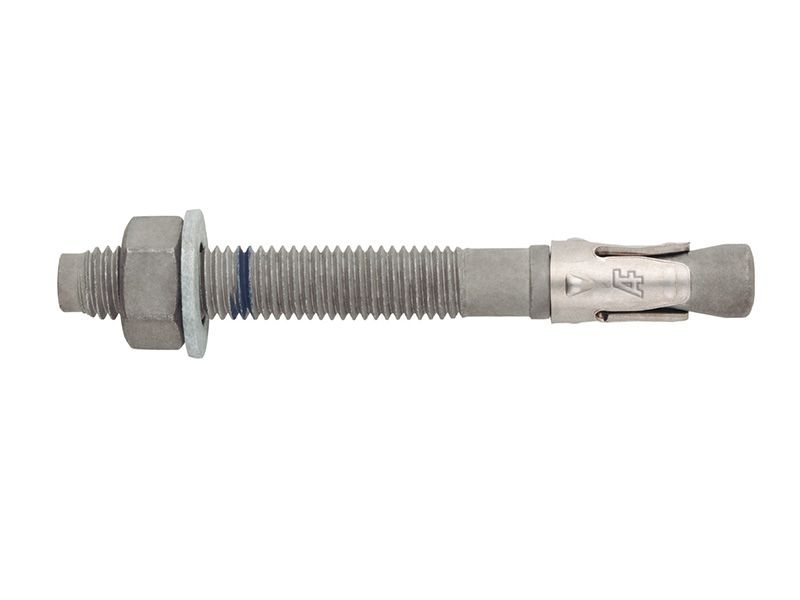

WA-G1 Wedge Anchor

WA-G1 Wedge Anchor

 WA-G1 galvanised anchors are commonly specified for ease of installation whilst also achieving strong loads in critical settings.

For quality assurance and superior fastening, these through-bolt expansion type mechanical anchors shall be installed to the correct depth and tension.

  • For use in cracked and non cracked concrete
  • ETA assessed option 1 anchor
  • Galvanised carbon steel, with 316 (A4) stainless steel expansion clip
TIERED PRICING
AS 5216:2018
SHIPS IN 1 - 2 DAYS
ETA 17/0486
$34.65
  • Buy 10 for $29.80 each and save 14%
  • Buy 20 for $26.55 each and save 24%
$37.40
  • Buy 10 for $32.18 each and save 14%
  • Buy 20 for $28.63 each and save 24%
$43.25
  • Buy 10 for $37.23 each and save 14%
  • Buy 20 for $33.08 each and save 24%
$21.60
  • Buy 20 for $18.33 each and save 16%
  • Buy 40 for $17.40 each and save 20%
$25.20
  • Buy 20 for $21.43 each and save 15%
  • Buy 40 for $20.33 each and save 20%
$28.98
  • Buy 20 for $24.60 each and save 16%
  • Buy 40 for $23.34 each and save 20%
$36.04
  • Buy 20 for $30.61 each and save 16%
  • Buy 40 for $29.04 each and save 20%
$37.59
  • Buy 20 for $31.93 each and save 16%
  • Buy 40 for $30.29 each and save 20%
$52.21
  • Buy 20 for $44.33 each and save 16%
  • Buy 40 for $42.06 each and save 20%
$75.68
  • Buy 20 for $64.29 each and save 16%
  • Buy 40 for $61.00 each and save 20%
$80.45
  • Buy 20 for $68.31 each and save 16%
  • Buy 40 for $64.85 each and save 20%
$85.08
  • Buy 20 for $72.26 each and save 16%
  • Buy 40 for $68.56 each and save 20%
$112.43
  • Buy 20 for $105.75 each and save 6%
  • Buy 40 for $95.65 each and save 15%
Order Here
Size Finish Unit(s) EX.GST QTY
Size Finish GAL Pack Qty.- $ Ex. GST -
BoxVOLUME DISCOUNT:
Close
Qty.
Add line
Product List

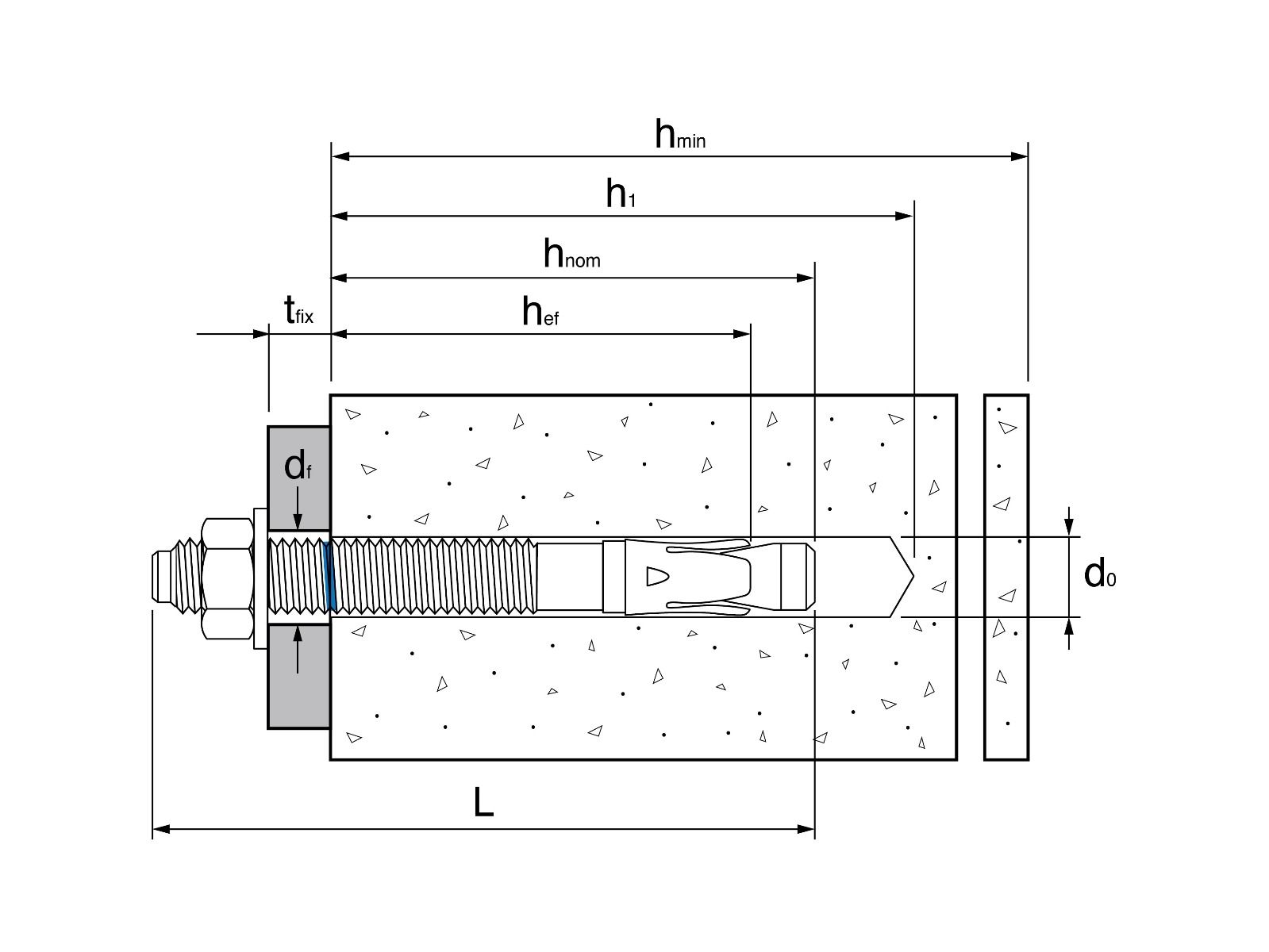

SKU Item Embed Min. Fixture Max. Bx. Qty. Crt. Qty.
SKU 1ETBG08080 Item M8 x 80mm WA-G1 Embed Min. 55 Fixture Max. 14 Bx. Qty. 50 Crt. Qty. 500
SKU 1ETBG08100 Item M8 x 100mm WA-G1 Embed Min. 55 Fixture Max. 34 Bx. Qty. 50 Crt. Qty. 500
SKU 1ETBG08120 Item M8 x 120mm WA-G1 Embed Min. 55 Fixture Max. 54 Bx. Qty. 50 Crt. Qty. 500
SKU 1ETBG10065 Item M10 x 65mm WA-G1 Embed Min. 48 Fixture Max. 5 Bx. Qty. 25 Crt. Qty. 250
SKU 1ETBG10090 Item M10 x 90mm WA-G1 Embed Min. 68 Fixture Max. 10 Bx. Qty. 25 Crt. Qty. 250
SKU 1ETBG10120 Item M10 x 120mm WA-G1 Embed Min. 68 Fixture Max. 40 Bx. Qty. 25 Crt. Qty. 250
SKU 1ETBG12080 Item M12 x 80mm WA-G1 Embed Min. 59 Fixture Max. 5 Bx. Qty. 25 Crt. Qty. 250
SKU 1ETBG12100 Item M12 x 100mm WA-G1 Embed Min. 80 Fixture Max. 4 Bx. Qty. 25 Crt. Qty. 150
SKU 1ETBG12140 Item M12 x 140mm WA-G1 Embed Min. 80 Fixture Max. 44 Bx. Qty. 25 Crt. Qty. 150
SKU 1ETBG16105 Item M16 x 105mm WA-G1 Embed Min. 80 Fixture Max. 5 Bx. Qty. 25 Crt. Qty. 100
SKU 1ETBG16125 Item M16 x 125mm WA-G1 Embed Min. 97 Fixture Max. 8 Bx. Qty. 25 Crt. Qty. 100
SKU 1ETBG16140 Item M16 x 140mm WA-G1 Embed Min. 97 Fixture Max. 23 Bx. Qty. 25 Crt. Qty. 100
SKU 1ETBG16190 Item M16 x 190mm WA-G1 Embed Min. 97 Fixture Max. 73 Bx. Qty. 25 Crt. Qty. 50
Downloads
SHARE Share
SHARE Share

CHARACTERISTICS AND BENEFITS

  • Easy installation.
  • Use in cracked and un-cracked concrete.
  • Use for medium-heavy duty loads.
  • Pre-installation or through the drill-hole of the fixture.
  • For static and quasi-static loads

APPLICATIONS

  • Anchor plates.
  • Metallic structures.
  • Bridges.
  • Urban fitments.
  • Protective fences.
  • Catenaries.
  • Elevators.
  • Pipe supports.
  • Structural fixing in cracked concrete in indoor applications.
  • Safety fences.
  • Sprinklers installation.
  • Fixings of steel beams, channels, machinery, boilers, signals, etc.
  • Fixings of wood structures to concrete.

BASE MATERIAL

  • Concrete class: C20/25 to C50/60 cracked and un-cracked.
  • Reinforced concrete
  • Stone

NCC Compliant AS 5216:2018

The ETA document meets anchor testing and reporting requirements of AS 5216:2018, essential for compliance with the NCC.
