WA-S1 Seismic C1 & C2 Wedge Anchor 316 Stainless

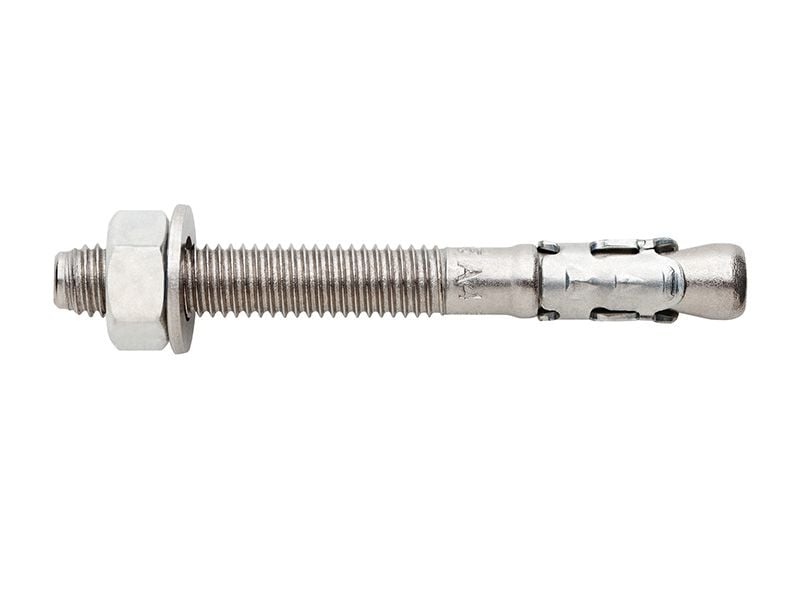

WA-S1 Wedge Anchor 316 (A4) Seismic C1 & C2
WA-S1 anchors can be specified when strong loads in critical settings are required. Made from 316 (A4) stainless steel, characteristically suited for external conditions in coastal or industrial environments.
These wedge anchors are manufactured in Europe, independently assessed and bare the marks of the ETA and CE for quality assurance and superior fastening. Through-bolt expansion type mechanical anchors such as these shall be installed to the correct depth and tension.
- ETA assessed option 1 anchor : seismic C1 & C2, cracked concrete
- 316 (A4) stainless steel, with 316 (A4) stainless steel expansion clip
Availability:
Require a Quote?
Instant quotes online are available to all our trade customers using Trade Portal.
Login and simply add items into your cart. View and edit your cart before pressing Submit Quote. Quotes will be available instantly online.
Description
CHARACTERISTICS AND BENEFITS
- Easy installation – installation by controlled torque.
- Assessed for use in areas of seismic activity.
- Use in cracked and un-cracked concrete.
- Use for medium loads.
- Pre-install in concrete or through fixture.
- Variety of lengths and diameters.
- For static and quasi-static loads.
- Assessed for fire resistance RF30 to RF120.
APPLICATIONS
- Structural fixings in cracked and non cracked concrete, including industrial and marine environments
- Safety barriers.
- Fixings of steel beams, perforated bracket guides, machinery, boilers, signage, stadium seating, facade substructures.
- Food industries.
- Fixing of wood structures to concrete
*Non-seismic rated anchor
**Recommended maximum fixture thickness is a general guide to make a robust structural connection for each length. However fixture thickness can be increased in many applications. For NCC engineered capacities please refer to technical documentation.
Product List
| SKU | Description | Availability | List Price | Pack |
|---|---|---|---|---|
| Pack: |
More Information
| Delivery | SHIPS IN 1 - 2 DAYS |
|---|---|
| Material Grade | 316 Stainless Steel |
| Coating & Plating | Plain / Unplated |
| Driver Type | Hex Sockets |
| Thread Type | Metric |
| For use with | Concrete (cracked), Concrete (un-cracked) |
| Setting Conditions | Hammer Drilling, Overhead, Through Fixture |
| Approvals & Documents | ETA Certification, Fire Resistance |
| Compliance | AS 5216:2021, Cyclic Loads, Seismic C1 & C2, Swiss Shock Load Approval, VicRoads BTN 008 |
| Software | AFOS® Anchor Design Software |
Technical Information
| SKU | Dia. x Length | Rec Max Fix** | Drill Depth | Seismic C1 / C2 |
|---|---|---|---|---|
| 1068.0080065 | M8 x 65mm WA-S1* | 11mm | 49mm | - |
| 1068.0080095 | M8 x 95mm WA-S1 | 30mm | 60mm | ✓ / ✓ |
| 1068.0080115 | M8 x 115mm WA-S1 | 50mm | 60mm | ✓ / ✓ |
| 1068.0100090 | M10 x 90mm WA-S1 | 10mm | 75mm | ✓ / ✓ |
| 1068.0100110 | M10 x 110mm WA-S1 | 30mm | 75mm | ✓ / ✓ |
| 1068.0100130 | M10 x 130mm WA-S1 | 50mm | 75mm | ✓ / ✓ |
| 1068.0100155 | M10 x 155mm WA-S1 | 75mm | 75mm | ✓ / ✓ |
| 1068.0120125 | M12 x 125mm WA-S1 | 30mm | 90mm | ✓ / ✓ |
| 1068.0120145 | M12 x 145mm WA-S1 | 50mm | 90mm | ✓ / ✓ |
| 1068.0120180 | M12 x 180mm WA-S1 | 85mm | 90mm | ✓ / ✓ |
| 1068.0120200 | M12 x 200mm WA-S1 | 105mm | 90mm | ✓ / ✓ |
| 1068.0160135 | M16 x 135mm WA-S1 | 15mm | 110mm | ✓ / ✓ |
| 1068.0160145 | M16 x 145mm WA-S1 | 25mm | 110mm | ✓ / ✓ |
| 1068.0160170 | M16 x 170mm WA-S1* | 50mm | 110mm | - |
| 1068.0160200 | M16 x 200mm WA-S1 | 80mm | 110mm | ✓ / ✓ |
| 1068.0200165 | M20 X 165mm WA-S1 | 30mm | 125mm | ✓ / ✓ |
| 1068.0200195 | M20 X 195mm WA-S1 | 60mm | 125mm | ✓ / ✓ |
| 1068.0200235 | M20 X 235mm WA-S1* | 100mm | 125mm | - |
| 1068.0200265 | M20 X 265mm WA-S1* | 130mm | 125mm | - |
| 1068.0200285 | M20 X 285mm WA-S1* | 150mm | 125mm | - |
| 1068.0240200 | M24 X 200mm WA-S1* | 30mm | 155mm | - |
| 1068.0240230 | M24 X 230mm WA-S1* | 60mm | 155mm | - |
| 1068.0240245 | M24 X 245mm WA-S1* | 75mm | 155mm | - |
