U-Bolts Round CL4.8 HDG

U-Bolts Round CL4.8 HDG

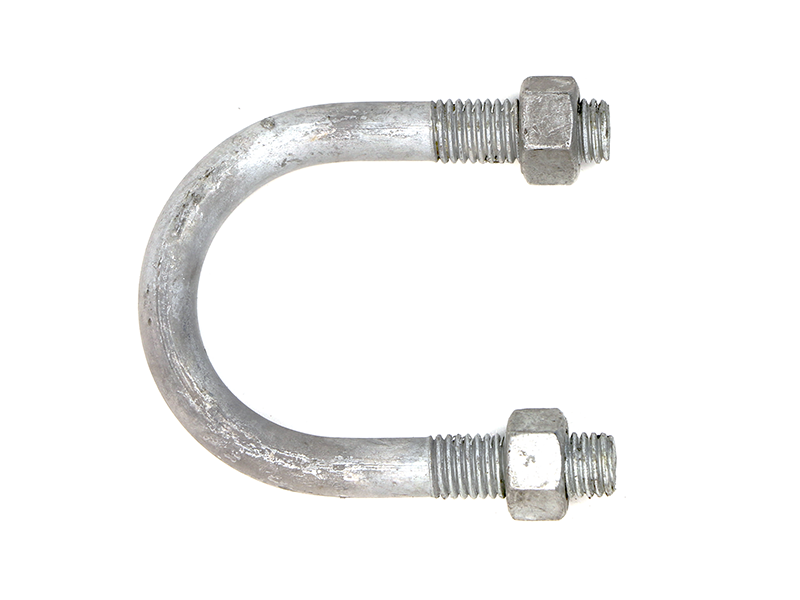

Metric round u-bolt kits in mild-steel 4.8 steel to fit high and low pressure piping. Finished in hot dipped galvanised and supplied with two hex nuts.

SKU 6M-UBG
Availability:
Pack:
Sub-total: / ex. gst.
Product List
SKU Description Availability List Price Pack
Pack:
More Information
More Information
Material Grade 4.6 Mild Steel
Coating & Plating Hot Dipped Galvanised (HDG)
Nut Type Hex Nuts
Diameter / Gauge M10, M12, M16, M20, M24
Thread Type Metric
Technical Information

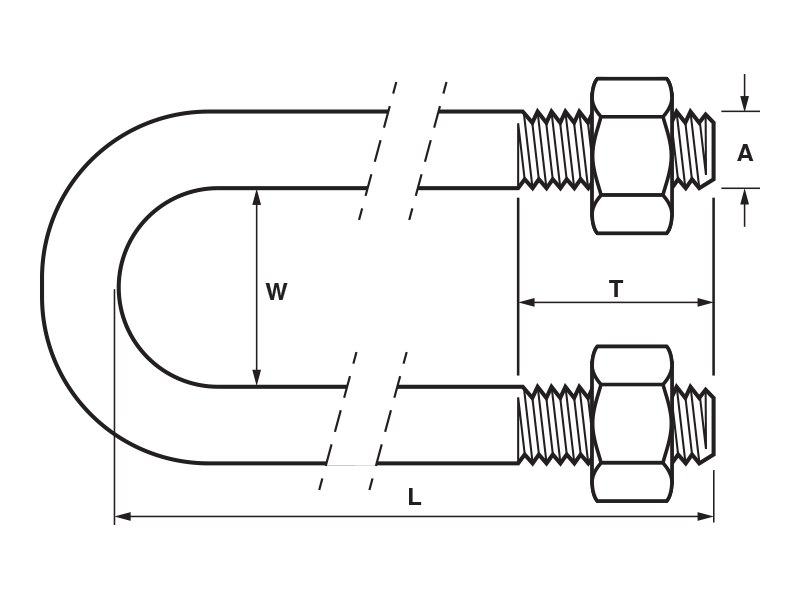

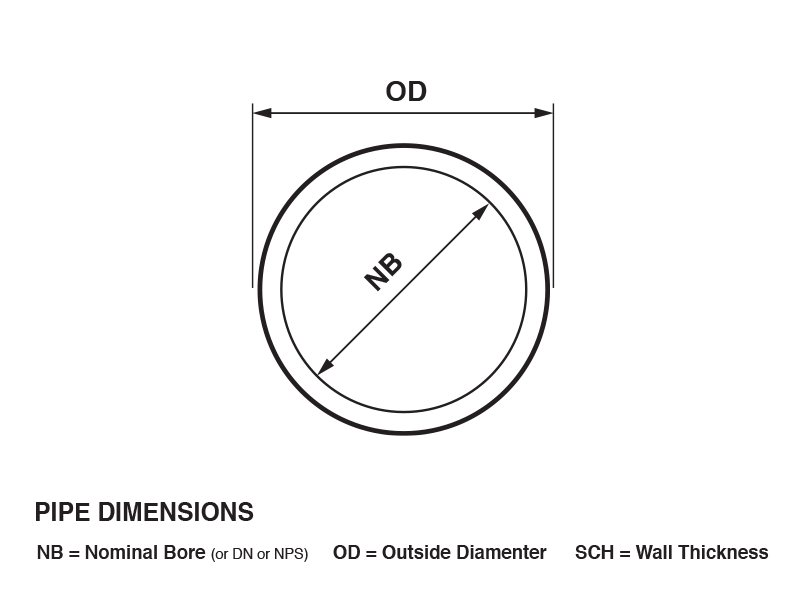

SKU A - W x L Nominal Bore Pipe OD Thread Portion T
6M-UBG10021 M10 - 21 x 65mm 15NB 21mm 40mm
6M-UBG10027 M10 - 27 x 77mm 20NB 27mm 50mm
6M-UBG10034 M10 - 34 x 85mm 25NB 34mm 50mm
6M-UBG10043 M10 - 43 x 93mm 32NB 43mm 50mm
6M-UBG10048 M10 - 48 x 100mm 40NB 48mm 50mm
6M-UBG10051 M10 - 51 x 103mm 40NB 51mm 50mm
6M-UBG10060 M10 - 60 x 110mm 50NB 60mm 50mm
6M-UBG12076 M12 - 76 x 127mm 65NB 76mm 50mm
6M-UBG12089 M12 - 89 x 140mm 80NB 89mm 50mm
6M-UBG12102 M12 - 102 x 152mm 90NB 102mm 50mm
6M-UBG12114 M12 - 114 x 165mm 100NB 114mm 50mm
6M-UBG12140 M12 - 140 x 190mm 125NB 140mm 50mm
6M-UBG12165 M12 - 165 x 215mm 150NB 165mm 50mm
6M-UBG12168 M12 - 168 x 220mm 150NB 168mm 50mm
6M-UBG16219 M16 - 219 x 295mm 200NB 219mm 75mm
6M-UBG20273 M20 - 273 x 370mm 250NB 273mm 100mm
6M-UBG20324 M20 - 324 x 420mm 300NB 324mm 100mm
6M-UBG20356 M20 - 356 x 455mm 350NB 356mm 100mm
6M-UBG20406 M20 - 406 x 505mm 400NB 406mm 100mm
6M-UBG24457 M24 - 457 x 555mm 450NB 457mm 100mm
6M-UBG24508 M24 - 508 x 605mm 500NB 508mm 100mm
6M-UBG24610 M24 - 610 x 710mm 600NB 610mm 100mm
