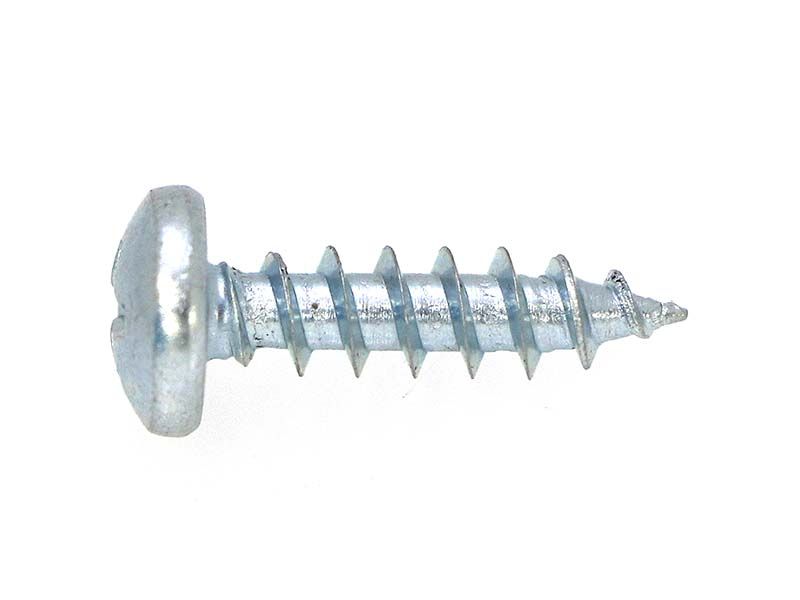

Particle Board Pan Head Screws Zinc

Particle Board Pan Head Screws Zinc

Particle board screws are a full length thread screw. The longer thread achieves greater engagement and higher pull out strength. Designed for composite timbers such as laminated particle board, craftwood or MDF.

Used by cabinet makers in domestic and commercial joinery

  • Requires drilled countersunk holes for correct installation
  • Phillips drive / countersunk
  • Zinc plated for internal use
SKU 3PPUZ
Availability:IN STOCK
Pack:
Sub-total: / ex. gst.
Description

TECHNICAL INFO:

INSTALLATION

  • Drill Capacity: For composite timbers such as laminated particle board, craftwood or MDF.
  • Driver Type: 4g (Philips P1), 5g,6g,8g,10g (Philips P2)
  • Installation Speed: 2300-2500 RPM Max Drill Speed

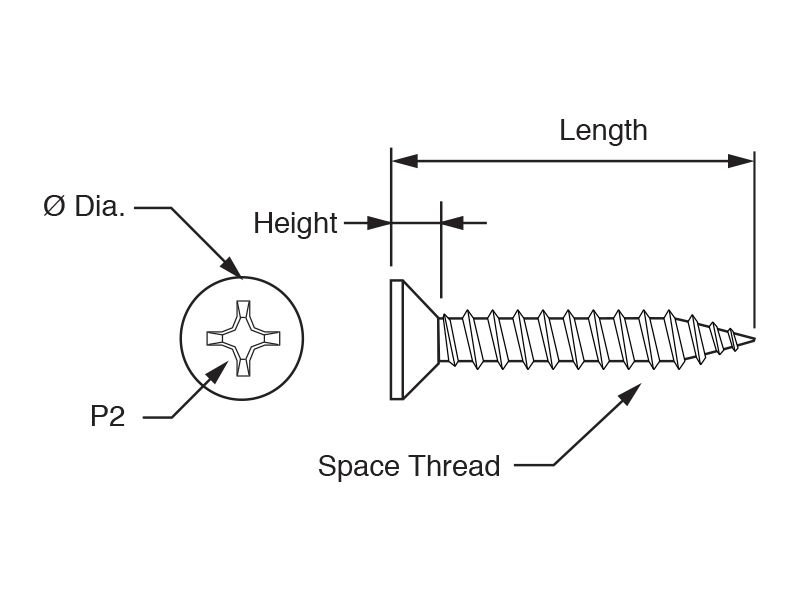

PHYSICAL CHARACTERISTICS

  • Head Type: Countersunk
  • Point Type: Needle
  • Material: Carbon steel
  • Finish: Zinc - yellow
  • Head Dia: 4g (4.9mm), 5g (6.3mm), 6g (6.9mm), 8g (7.8mm), 10g (9.9mm)
  • Head Height: 4g (2.5mm), 5g (3mm), 6g (3mm), 8g (4mm), 10g (5mm)
Product List
SKU Description Availability List Price Pack
Pack:
More Information
More Information
Delivery SHIPS IN 1 - 2 DAYS
Technical Information
SKU Gauge x Length Coating Driver Bit Gauge x Length
