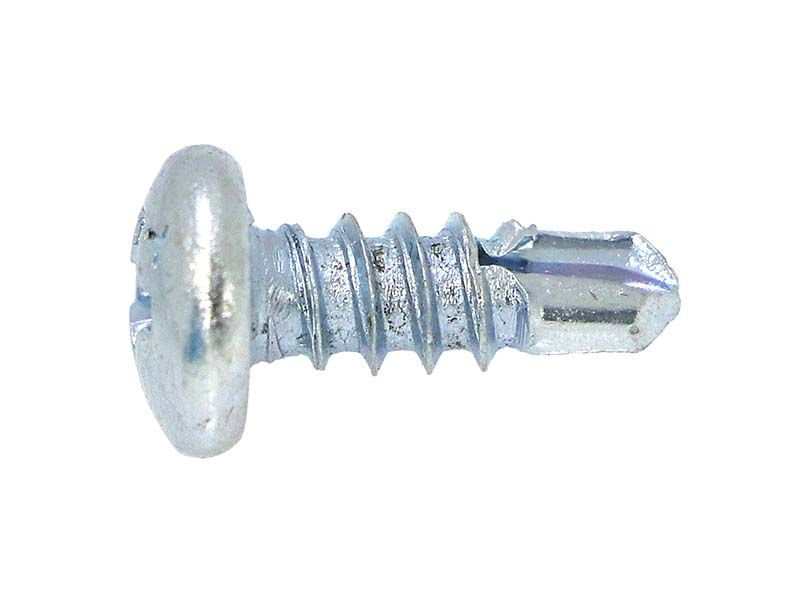

Pan Hd Zinc Clear Self Drilling Screws
Pan Hd Zinc Clear Self Drilling Screws
Availability:
Require a Quote?
Instant quotes online are available to all our trade customers using Trade Portal.
Login and simply add items into your cart. View and edit your cart before pressing Submit Quote. Quotes will be available instantly online.
Description
INSTALLATION
- Drill Capacity: 6g (1-2.3mm of Steel), 8g (0.75-2.5mm of Steel)
- Driver Type: Philips P2
- Installation Speed: 2300-2500 RPM Max Drill Speed
PHYSICAL CHARACTERISTICS
- Head Type: Pan
- Point Type: Self Drilling Point
- Material: Carbon Steel
- Finish: Zinc Clear
- Head Dia: 6g (6.8mm), 8g (8.2mm)
- Head Height: 6g (2.3mm), 8g (2.5mm)
Product List
| SKU | Description | Availability | List Price | Pack |
|---|---|---|---|---|
| Pack: |
More Information
| Delivery | SHIPS IN 1 - 2 DAYS |
|---|---|
| Coating & Plating | Zinc Clear |
| Material Grade | Carbon Steel |
| Head Type | Pan |
| Driver Type | Philips Bit |
| Diameter / Gauge | 8g |
| Point Type | Drill Point No.3 |
| Thread Type | Fine |
| Application | Steel-to-Steel Self Drilling |
Technical Information
| SKU | Gauge x Length | Coating | Driver Bit | Gauge x Length |
|---|---|---|---|---|
| 1126.0080012 | 8-18 x 12mm | Zinc Plated | Ph2 | 8-18 x 12mm |
| 1126.0080016 | 8-18 x 16mm | Zinc Plated | Ph2 | 8-18 x 16mm |
| 1126.0080022 | 8-18 x 22mm | Zinc Plated | Ph2 | 8-18 x 22mm |
