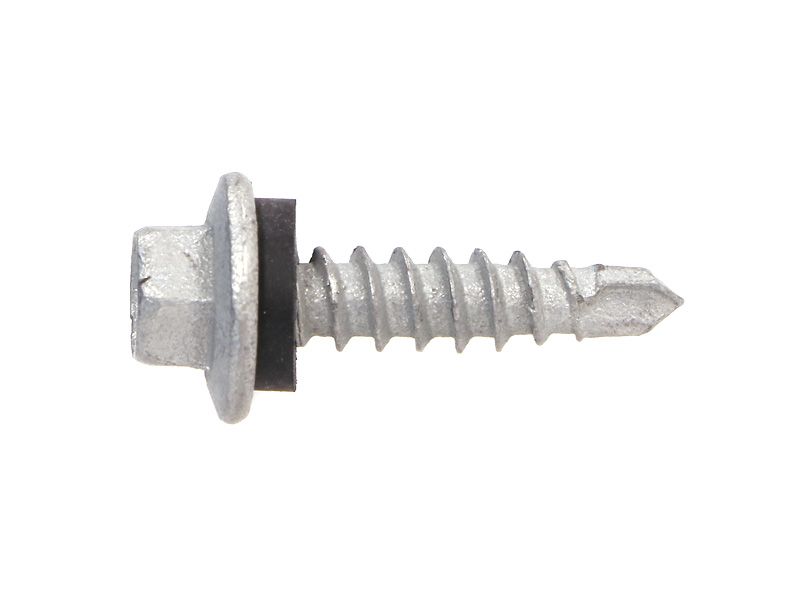

M6-13 x 25mm Zip-It SD Roofing Screws CL4 Sealing Washer

M6-13 x 25mm Zip-It SD Roofing Screws CL4 Sealing Washer

M6-13 x 25mm Zip-It SD Roofing Screws CL4 Sealing Washer

Zip-It batten and cladding screws suitable for roofing applications. Self drilling screws fix down roof sheeting to steel or timber without the need for pre-drilling.

  • Class 4 mechanically galvanised as per AS3566.2
  • Excellent corrosion resistance.
  • Assembled with neoprene sealing washer.
  • Complete compatibility with zinc and Colorbond® coated sheets
  • 5/16" hex head
  • 20mm min. embedment
  • 0.55 - 1.9mm drill range (metal)
SKU 3ZHC9C4NM-PLA
Availability:
Pack:
Sub-total: / ex. gst.
Description

INSTALLATION

  • Drill Capacity: 0.55-1.9mm of steel, Timbers including treated pine
  • Driver Type: 5/16 Hex Socket
  • Installation Speed: 2300-2500 RPM Max Drill Speed



PHYSICAL CHARACTERISTICS

  • Head Type: Hex
  • Point Type: Self Drilling (ZIP point for timber and steel)
  • Material: Carbon Steel
  • Finish: Class 4 Mechanical Galvanised
  • Head Dia: 14.6mm
  • Head Height: 7mm
Product List
SKU Description Availability List Price Pack
Pack:
More Information
More Information
Delivery SHIPS IN 1 - 2 DAYS
Coating & Plating Galvanised
Material Grade Carbon Steel
Head Type Hex Sealing Washer
Driver Type Hex Socket
Diameter / Gauge M6
Point Type Drill Point No.3
Thread Type Coarse
Technical Information
SKU Item Washer Description
3ZHC9C4NM6025 M6-11 x 25mm Sealing Washer M6-11 x 25mm Zip-It SD Screws
