Designed for valley fixing roof sheets and side cladding to top hat and timber battens.
M6-11 x 25mm RoofZips® Cladding Screws Hex Head
CLEARANCE ITEM | LIMITED STOCK
M6 -11 x 25mm Roof Zips® are a valley fixing screws designed to secure metal roofing to light metal battens from 0.42mm ~ 1.5mm thick and soft timber battens. Can be used in both roofing and side cladding applications, fix thin metal top hat to metal battens, pine or hardwood battens and steel or timber trusses.
Features & Benefits
- High pull-out strength
- Climaseal® 4 corrosion protection
- Under-roof Corrosion Protection with Shankguard® feature which prevents the scratching and scouring of the fastener shank that can happen during installation
- Painted heads Colourmatch® to Colorbond® colours available, select below.
- Manufactured in Australia
Availability:
Require a Quote?
Instant quotes online are available to all our trade customers using Trade Portal.
Login and simply add items into your cart. View and edit your cart before pressing Submit Quote. Quotes will be available instantly online.
Description
INSTALLATION
- Drill Capacity: 0.42–1.50mm of metal
- Driver Type: 5/16 Hex Socket
- Installation Speed: mains powered or cordless screw driver with a drive speed of 3,000 RPM
- Timber Embedment: 23.0mm minimum

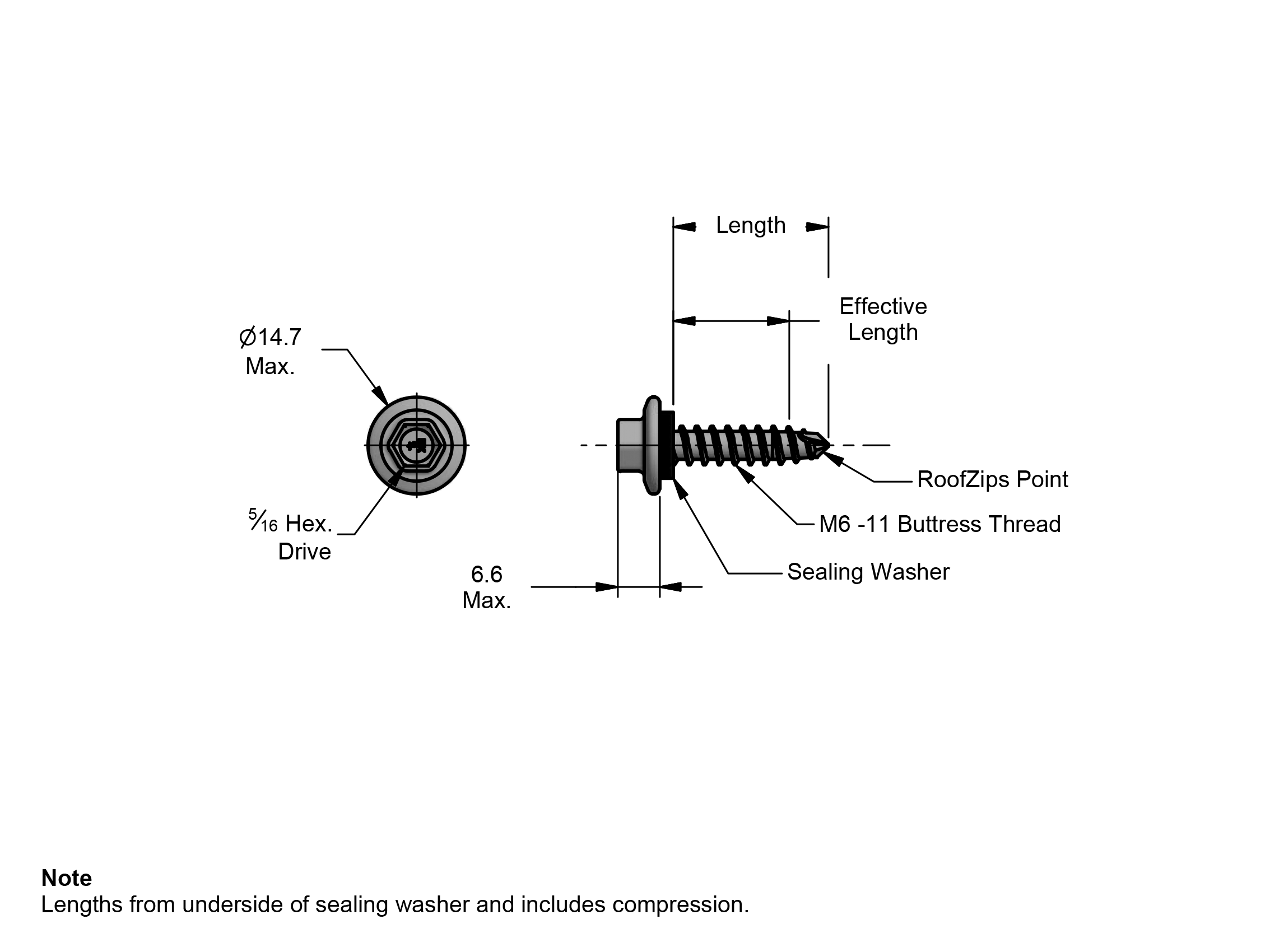

PHYSICAL CHARACTERISTICS
- Head Type: Hex Head
- Point Type: Self-Drilling No 3 RoofZip® Point
- Material: Carbon Steel SAE 1022
- Finish: Climaseal4® Mechanical Galvanised
- Washer Dia: 14.7mm
- Head Height: 6.6mm
Product List
| SKU | Description | Availability | List Price | Pack |
|---|---|---|---|---|
| Pack: |
More Information
| Delivery | SHIPS IN 1 - 2 DAYS |
|---|---|
| Coating & Plating | Galvanised |
| Material Grade | Carbon Steel |
| Head Type | Hex Sealing Washer |
| Driver Type | Hex Sockets |
| Diameter / Gauge | M6 |
| Point Type | Drill Point No.3 |
| Thread Type | Coarse |
Technical Information
| SKU | Select | Grip Range | Item |
|---|---|---|---|
| 1225.6112502 | M6-11 x 25mm Classic Cream | M6-11 x 25mm Zip-It SD Screws, Classic Cream | |
| 1225.6112505 | M6-11 x 25mm Deep Ocean | M6-11 x 25mm Zip-It SD Screws, Deep Ocean | |
| 1225.6112507 | M6-11 x 25mm Ironstone | M6-11 x 25mm Zip-It SD Screws, Ironstone | |
| 1225.6112509 | M6-11 x 25mm Monument | M6-11 x 25mm Zip-It SD Screws, Monument | |
| 1225.6112514 | M6-11 x 25mm Surfmist | M6-11 x 25mm Zip-It SD Screws, Surfmist | |
| 1225.6112518 | M6-11 x 25mm Windspray | M6-11 x 25mm Zip-It SD Screws, Windspray |
