M24 Hold Down Bolt Kit for Bridge Parapets
M24 Precast Barrier HDB & Leveling Kit Gr4.6 HDG

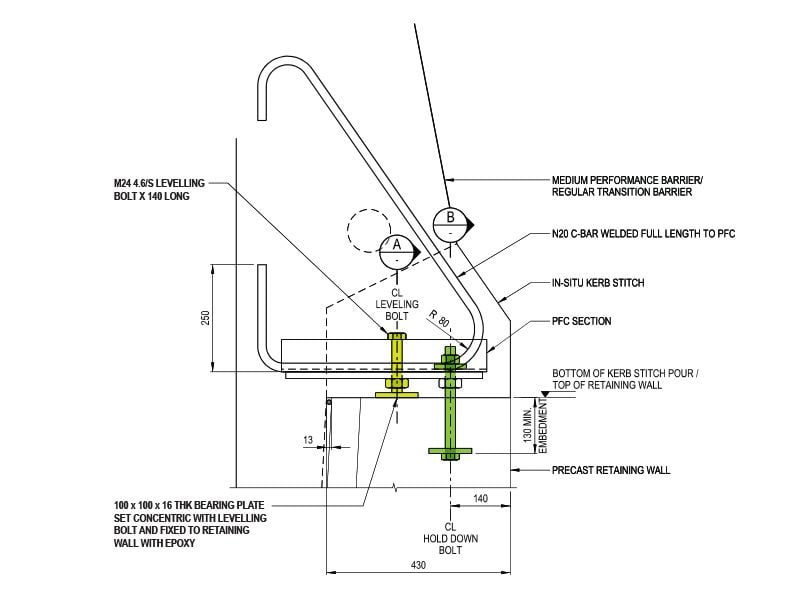

Hold down bolt assembly kit designed for precast concrete barriers and specifically for the anchoring of precast bridge parapets. Consisting of an M24 x 300mm long anchor bolt and shorter leveling bolt positioning and securing precast barriers can be completed quickly and safely.
Concrete barriers can be used alongside roads, or center medium strips and along the edge of bridges.
All components are mild-steel 4.6 and provided hot dipped galvanized coating.
Availability:
Require a Quote?
Instant quotes online are available to all our trade customers using Trade Portal.
Login and simply add items into your cart. View and edit your cart before pressing Submit Quote. Quotes will be available instantly online.
Description
Kit Components:

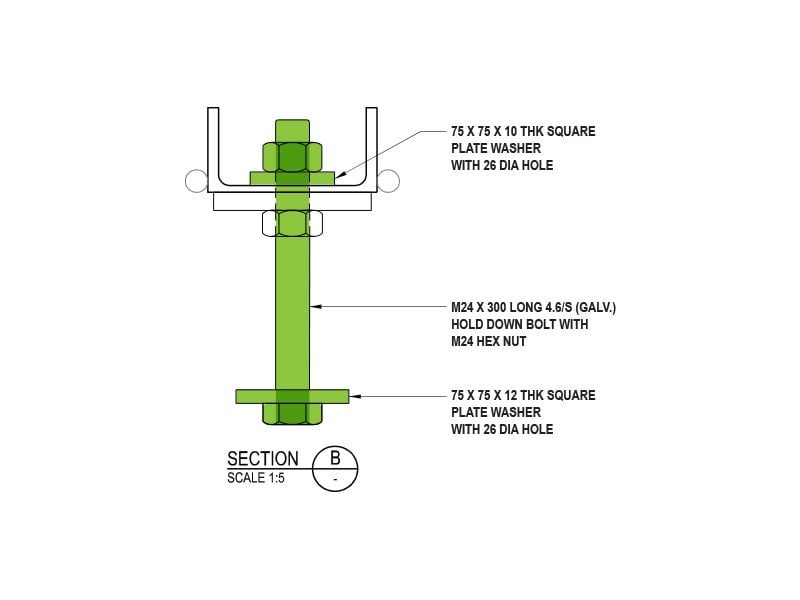

- Hold down bolt: M24 x 300mm Hex Bolt & Nut GR4.6 HDG (150mm thread portion)

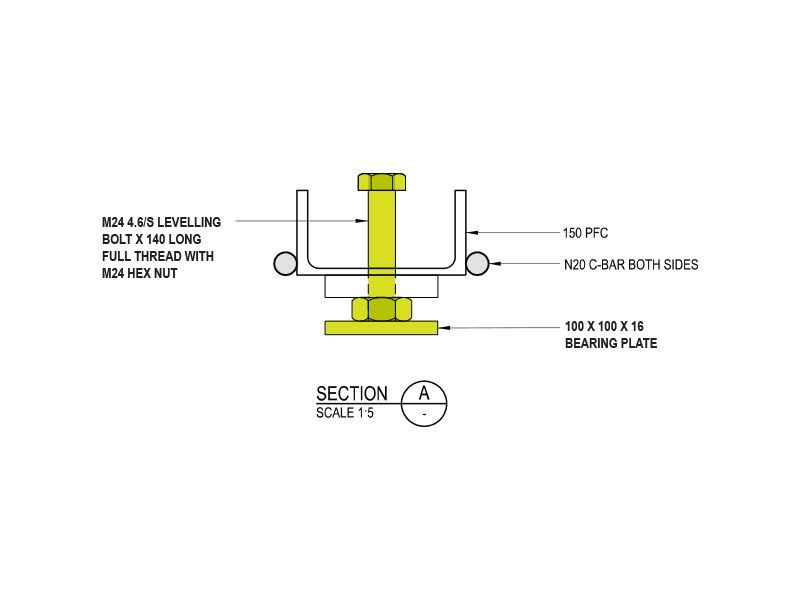

- Leveling bolt: M24 x 140 Hex Head Set Screw & Nut GR4.6 HDG (full threaded)
- Washer Plates: M24 - 75 x 75mm x 12mm Square Washer HDG
- Washer Plates: M24 - 75 x 75mm x 10mm Square Washer HDG
- Bearing Plate: 100 x 100 x 16mm Plate HDG
Product List
| SKU | Description | Availability | List Price | Pack |
|---|---|---|---|---|
| Pack: |
More Information
| Material Grade | 4.6 Mild Steel |
|---|---|
| Coating & Plating | Hot Dipped Galvanised (HDG) |
| Head Type | Hexagonal |
| Diameter / Gauge | M24 |
| Thread Type | Metric |
| Use for | Critical Anchoring, Outdoor Structure, Road & Pavement, Site Setup |
Technical Information
| SKU | Kit Size | Plate Size | Bolts | Nuts | Square Washers |
|---|---|---|---|---|---|
| 1473.0240300 | M24 Precast Barrier HDB Kit 4.6 | 16mm Bearing Plate | 2 | 2 | 2 |
