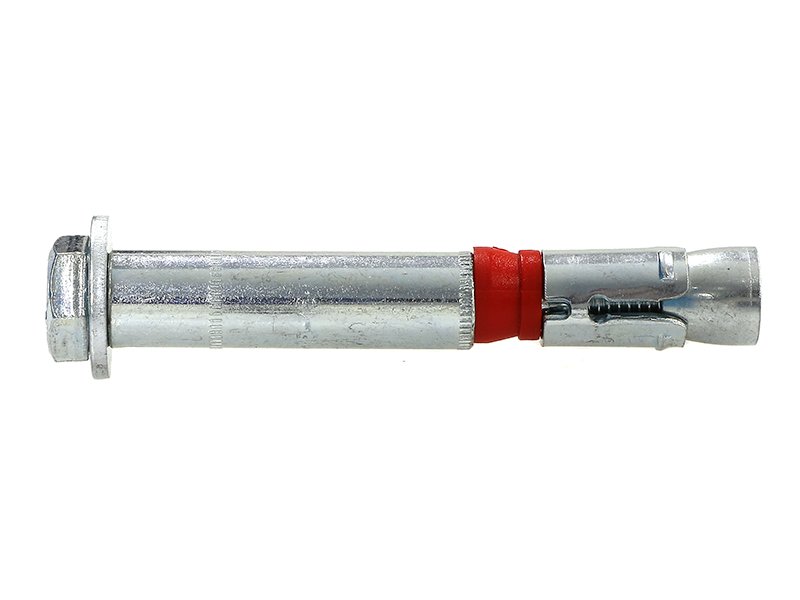

HLA-Z1 High Load Structural Expansion Anchor

HLA-Z1 High Load Structural Expansion Anchor

GRADE 8.8 / ZINC PLATED

High-loading expansion anchors are simple to install through fixing or prior to placement of fixing. HLA-Z1 can be disassembled leaving the surface clear as the expander and cone remain in the hole. For the preferred method with precast concrete panels the HLA-Z1 anchors can be used to secure brace-it prop support temporarily.

Other applications include fixing pillars and beams, machinery, shelves and scaffolding. And also where fire or seismic effects must be considered factors.

TIERED PRICING
AS 5216:2018
$124.80
  • Buy 2 for $113.45 each and save 10%
  • Buy 4 for $104.00 each and save 17%
$146.88
  • Buy 2 for $133.53 each and save 10%
  • Buy 4 for $122.40 each and save 17%
$165.18
  • Buy 2 for $146.83 each and save 12%
  • Buy 4 for $132.15 each and save 20%
$87.40
  • Buy 4 for $79.45 each and save 10%
  • Buy 8 for $72.84 each and save 17%
$111.76
  • Buy 2 for $101.60 each and save 10%
  • Buy 4 for $93.14 each and save 17%
$198.49
  • Buy 2 for $180.45 each and save 10%
  • Buy 4 for $165.41 each and save 17%
$131.51
  • Buy 3 for $119.56 each and save 10%
  • Buy 5 for $109.59 each and save 17%
$185.57
  • Buy 3 for $168.70 each and save 10%
  • Buy 5 for $154.64 each and save 17%
$142.70
  • Buy 5 for $129.72 each and save 10%
  • Buy 10 for $118.91 each and save 17%
$201.65
  • Buy 5 for $183.32 each and save 10%
  • Buy 10 for $168.04 each and save 17%
$232.95
  • Buy 5 for $207.07 each and save 12%
  • Buy 10 for $186.36 each and save 20%
$134.86
  • Buy 10 for $119.87 each and save 12%
  • Buy 20 for $107.89 each and save 21%
Order Here
Item Unit(s) EX.GST QTY
Item Pack Qty.- $ Ex. GST -
BoxVOLUME DISCOUNT:
Close
Qty.
Add line
Product List
SKU Item Drill ø Max. Fix Bx. Qty. Crt. Qty.
SKU 1HLAZ10095 Item 10-30 x 95mm HLA-Z1 Drill ø 10mm Max. Fix 30mm Bx. Qty. 50 Crt. Qty.
SKU 1HLAZ12085 Item 12-10 x 85mm HLA-Z1 Drill ø 10mm Max. Fix 85mm Bx. Qty. 50 Crt. Qty.
SKU 1HLAZ12095 Item 12-20 x 95mm HLA-Z1 Drill ø 12mm Max. Fix 20mm Bx. Qty. 50 Crt. Qty.
SKU 1HLAZ12125 Item 12-50 x 125mm HLA-Z1 Drill ø 12mm Max. Fix 50mm Bx. Qty. 25 Crt. Qty.
SKU 1HLAZ15106 Item 15-15 x 106mm HLA-Z1 Drill ø 15mm Max. Fix 15mm Bx. Qty. 25 Crt. Qty.
SKU 1HLAZ15136 Item 15-45 x 136mm HLA-Z1 Drill ø 15mm Max. Fix 45mm Bx. Qty. 25 Crt. Qty.
SKU 1HLAZ18117 Item 18-10 x 117mm HLA-Z1 Drill ø 18mm Max. Fix 10mm Bx. Qty. 20 Crt. Qty.
SKU 1HLAZ18177 Item 18-70 x 177mm HLA-Z1 Drill ø 18mm Max. Fix 70mm Bx. Qty. 20 Crt. Qty.
SKU 1HLAZ24150 Item 24-20 x 150mm HLA-Z1 Drill ø 24mm Max. Fix 20mm Bx. Qty. 10 Crt. Qty.
SKU 1HLAZ24200 Item 24-50 x 200mm HLA-Z1 Drill ø 24mm Max. Fix 50mm Bx. Qty. 10 Crt. Qty.
SKU 1HLAZ28172 Item 28-10 x 172mm HLA-Z1 Drill ø 28mm Max. Fix 10mm Bx. Qty. 10 Crt. Qty.
SKU 1HLAZ28192 Item 28-30 x 192mm HLA-Z1 Drill ø 28mm Max. Fix 30mm Bx. Qty. 5 Crt. Qty.

NCC Compliant AS 5216:2018

The ETA document meets anchor testing and reporting requirements of AS 5216:2018, essential for compliance with the NCC.

The ETA (Option 1) approved highload HLA-Z1 anchor is a high-performance through fastening anchor with plastic compression ring and with a three part expansion sleeve. This allows for smaller spacing and edge distances with high loads. Through deeper setting, the variable anchorage depth of HLA-Z1 anchors allows higher permissible shear loads in many cases, extending its range of possible uses.

Anchors M8 to M24 are also approved for use under seismic actions C1 and C2.

Advantages

  • High tension and shear loads
  • Variable anchoring depths for even higher shear loads
  • Can be dismantled flush with surface (only the cone and expansion sleeve remain in the drill-hole)
  • Smaller spacing and edge distances
  • Fire protection approved
  • Approved to use under seismic action according to the performance category C1& C2 (M8-M24)

Applications

  • Medium to highload anchoring in cracked and non-cracked concrete, e.g. trusses, railings, machines, scaffolding and consoles.
