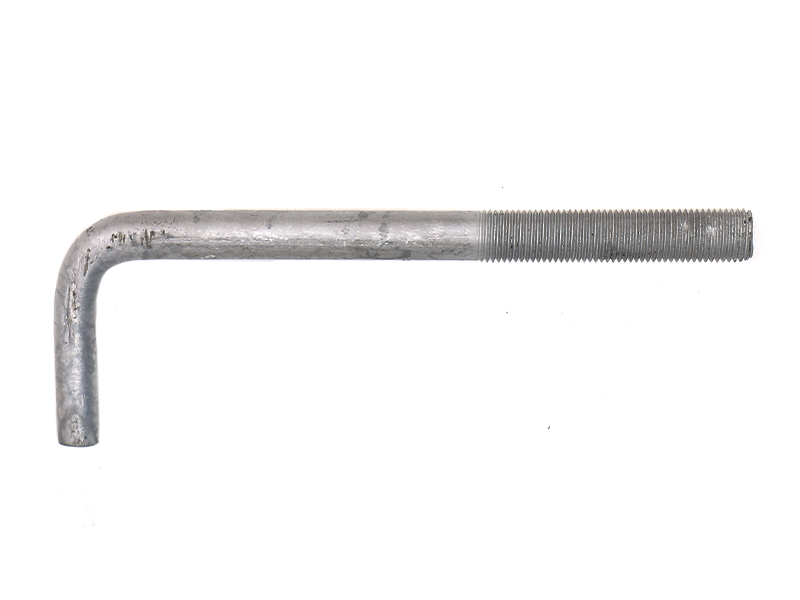

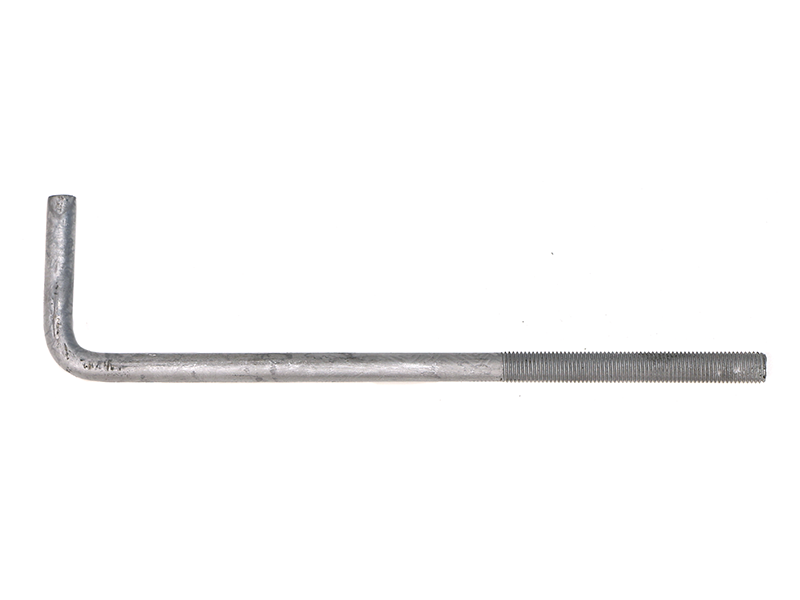

L-Bolts CL4.8 HDG
L-Bolts CL4.8 HDG
Foundation L-Bolts in mild-steel 4.8 steel to complete concrete connections or arranged in hold down bolt configurations. Finished in hot dipped galvanised.
Availability:
Require a Quote?
Instant quotes online are available to all our trade customers using Trade Portal.
Login and simply add items into your cart. View and edit your cart before pressing Submit Quote. Quotes will be available instantly online.
Product List
| SKU | Description | Availability | List Price | Pack |
|---|---|---|---|---|
| Pack: |
More Information
| Delivery | SHIPS IN 1-2 DAYS |
|---|---|
| Material Grade | 4.6 Mild Steel |
| Coating & Plating | Hot Dipped Galvanised (HDG) |
| Diameter / Gauge | M12, M16, M20, M24, M30 |
| Thread Type | Coarse |
| Use for | Formwork, Foundation, Outdoor Structure, Structural Fixing |
Technical Information

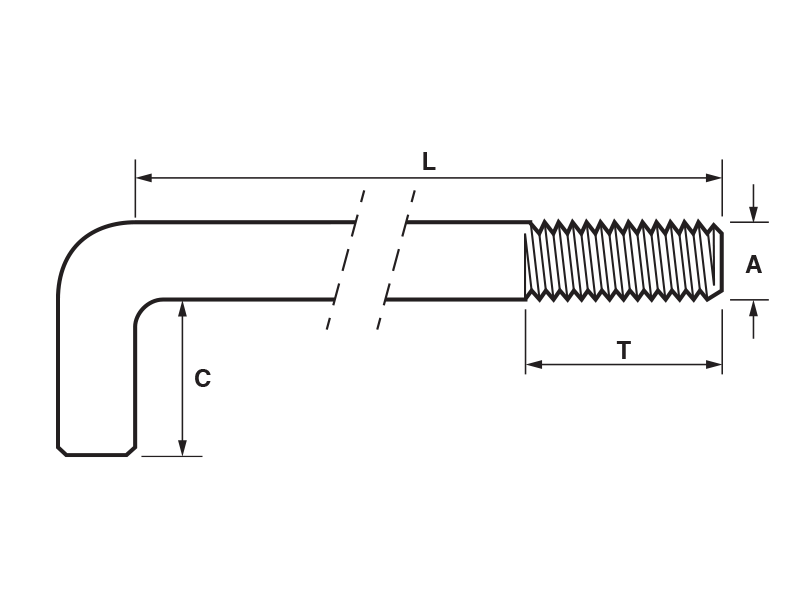

| SKU | A x L x C | T | A x L x C |
|---|---|---|---|
| 1478.1203006 | M12 x 300 x 60mm | 100mm | M12 x 300 x 60mm |
| 1478.1203506 | M12 x 350 x 60mm | 100mm | M12 x 350 x 60mm |
| 1478.1204006 | M12 x 400 x 60mm | 100mm | M12 x 400 x 60mm |
| 1478.1204506 | M12 x 450 x 60mm | 100mm | M12 x 450 x 60mm |
| 1478.1603008 | M16 x 300 x 80mm | 130mm | M16 x 300 x 80mm |
| 1478.1603508 | M16 x 350 x 80mm | 130mm | M16 x 350 x 80mm |
| 1478.1604008 | M16 x 400 x 80mm | 130mm | M16 x 400 x 80mm |
| 1478.1604508 | M16 x 450 x 80mm | 130mm | M16 x 450 x 80mm |
| 1478.1605008 | M16 x 500 x 80mm | 130mm | M16 x 500 x 80mm |
| 1478.1605508 | M16 x 550 x 80mm | 130mm | M16 x 550 x 80mm |
| 1478.1606008 | M16 x 600 x 80mm | 130mm | M16 x 600 x 80mm |
| 1478.1607008 | M16 x 700 x 80mm | 130mm | M16 x 700 x 80mm |
| 1478.2003010 | M20 x 300 x 100mm | 150mm | M20 x 300 x 100mm |
| 1478.2003510 | M20 x 350 x 100mm | 150mm | M20 x 350 x 100mm |
| 1478.2004010 | M20 x 400 x 100mm | 150mm | M20 x 400 x 100mm |
| 1478.2004510 | M20 x 450 x 100mm | 150mm | M20 x 450 x 100mm |
| 1478.2005010 | M20 x 500 x 100mm | 150mm | M20 x 500 x 100mm |
| 1478.2005510 | M20 x 550 x 100mm | 150mm | M20 x 550 x 100mm |
| 1478.2006010 | M20 x 600 x 100mm | 150mm | M20 x 600 x 100mm |
| 1478.2007010 | M20 x 700 x 100mm | 150mm | M20 x 700 x 100mm |
| 1478.2008010 | M20 x 800 x 100mm | 150mm | M20 x 800 x 100mm |
| 1478.2010010 | M20 x 1000 x 100mm | 150mm | M20 x 1000 x 100mm |
| 1478.2404012 | M24 x 400 x 120mm | 150mm | M24 x 400 x 120mm |
| 1478.2404512 | M24 x 450 x 120mm | 180mm | M24 x 450 x 120mm |
| 1478.2405012 | M24 x 500 x 120mm | 180mm | M24 x 500 x 120mm |
| 1478.2406012 | M24 x 600 x 120mm | 180mm | M24 x 600 x 120mm |
| 1478.2407012 | M24 x 700 x 120mm | 180mm | M24 x 700 x 120mm |
| 1478.2408012 | M24 x 800 x 120mm | 180mm | M24 x 800 x 120mm |
| 1478.3005015 | M30 x 500 x 150mm | 200mm | M30 x 500 x 150mm |
| 1478.3006015 | M30 x 600 x 150mm | 200mm | M30 x 600 x 150mm |
| 1478.3007015 | M30 x 700 x 150mm | 200mm | M30 x 700 x 150mm |
| 1478.3008015 | M30 x 800 x 150mm | 200mm | M30 x 800 x 150mm |
