M16 & M20 Threaded Stud Adaptor

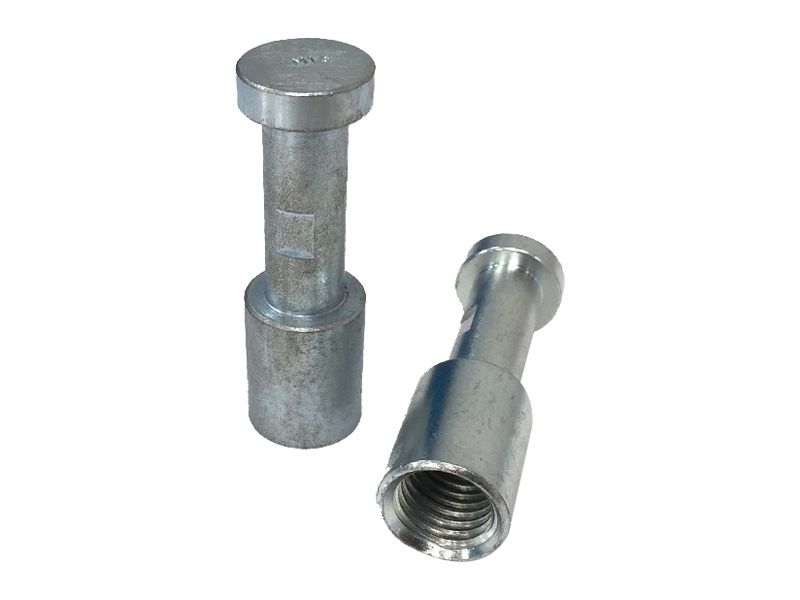

HYDRAJAWS Model 2050 Threaded Stud Adaptor

HYDRAJAWS Model 2050 Threaded Stud Adaptor

Stud adaptors are used to directly test threaded studs from M16 & M20 once installed following manufactures recommendations. Also suitable for testing sleeved anchors or anchors with an internal thread such as drop in anchors.

Compatible with 2050 load spreading bridge of the HYDRAJAWS® Model 2050 tester.

SKU 15HJTSA-2050
Availability:
Pack:
Sub-total: / ex. gst.
Description

How to use threaded stud adaptor.





  • Once the anchor has been set as per manufacturers instructions, the threaded adaptor can then be fitted. There shall be at minimum length of the studs threads exposed to secure into the adaptor. This length must be at least equal to the diameter of the anchor.
  • Remove the locking adaptor if fitted from pull tester. When the adaptor is securely fitted to the anchor thread position, place the tester over the adaptor. Passing the head through the hole in the bridge and engage it in the pulling jaw of the tester.
  • Level the load spreading bridge with the adjustable legs before commencing the application of the load.
Product List
SKU Description Availability List Price Pack
Pack:
More Information
More Information
Delivery SHIPS IN 3 - 5 DAYS
Technical Information
SKU Item Suits Suits Item
15HJTSA-M16-2050 M16 Threaded Stud Adaptor Model 2050 Model 2050 M16 Threaded Stud Adaptor
15HJTSA-M20-2050 M20 Threaded Stud Adaptor Model 2050 Model 2050 M20 Threaded Stud Adaptor
