Efficient, Lightweight Anchoring for Medium-Duty Precast and Architectural Applications

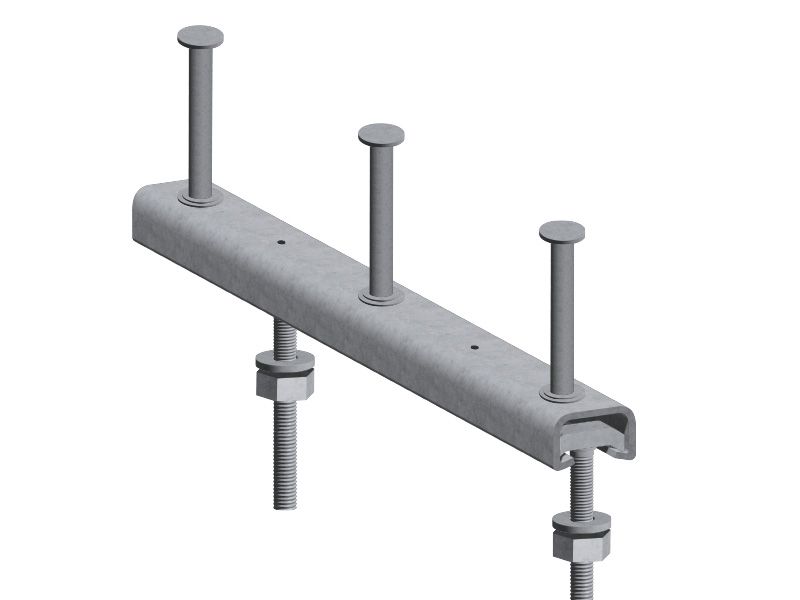

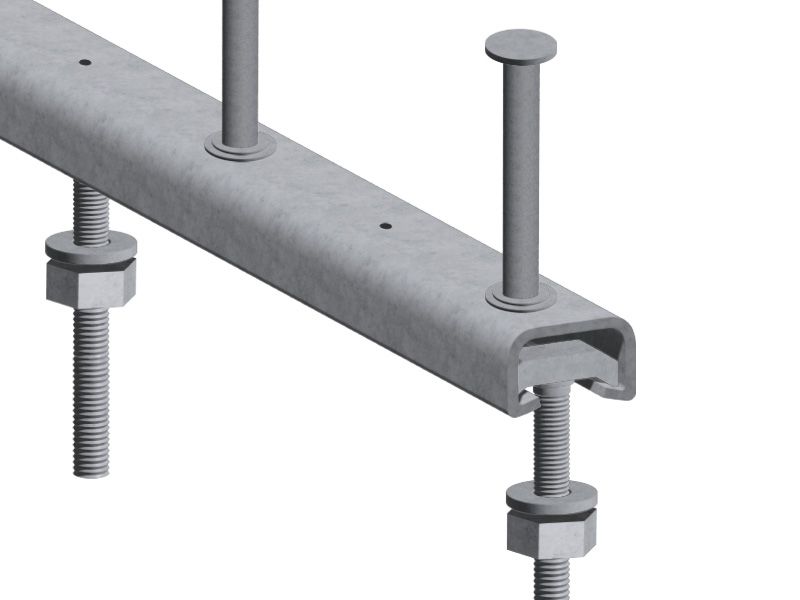

AC-G Cold-rolled HDG 8.8 Cast-In Anchor Channel
Our cold rolled cast-in anchor channels are designed for speed, flexibility, and performance in medium-load concrete fixings. Cold rolled for dimensional precision and a clean surface finish, these channels are perfect for architectural and commercial use.
Available Profiles:
- 40/26P – 40mm wide × 26mm high
- Hot dipped galvanised, 8.8 grade steel
Availability:IN STOCK
Require a Quote?
Instant quotes online are available to all our trade customers using Trade Portal.
Login and simply add items into your cart. View and edit your cart before pressing Submit Quote. Quotes will be available instantly online.
Description
Features & Benefits:
- Longer, high-strength pressed studs ensure strong, reliable concrete engagement
- Compact, lightweight profiles ideal for tight tolerances or thinner concrete elements
- Hot-dip galvanized coating on both channel and studs to ≥50 μm (EN ISO 10684)
- Available in 316 stainless steel for high-exposure and coastal environments
- Quick-fit 8.8 grade T-bolt system (M10–M16) — easy to install, remove, or reposition
- Supplied in standard lengths, or custom lengths up to 6 m
- Fully ETA-certified and aligned with AS 5216 for compliant design
- Fast, adjustable installation — no drilling or repositioning required
Key Applications:
- Façade brackets and curtain wall attachments
- Electrical and mechanical service supports
- Medium-load precast connections
- Cladding systems and sunshades
- Precast concrete elements with moderate loads
- Fixings in commercial fit-outs or architectural features
Product List
| SKU | Description | Availability | List Price | Pack |
|---|---|---|---|---|
| Pack: |
More Information
| Material Grade | Carbon Steel |
|---|---|
| Coating & Plating | Hot Dipped Galvanised (HDG) |
| Approvals & Documents | ETA Certification |
| Compliance | AS 5216:2021, Cyclic Loads, Dynamic Loads |
| Application | Cast-In Concrete |
| Use for | Elevator, Facade & Cladding, Formwork, HVAC, Mechanical Electrical Plumbing, Suspension & Gantry |
Technical Information
| SKU | Profile, With x Height [ mm ] | Length/Studs | T-Bolts | Min. Edge Dist., Cmin | Min. Concrete Thickness, hmin |
|---|
