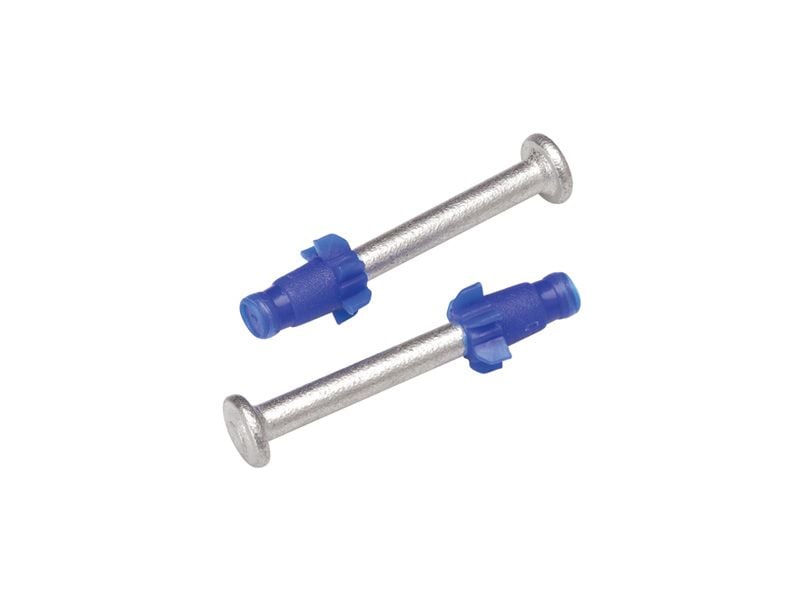

Drive Pins .300" Low Velocity
Drive Pins .300" Low Velocity
Drive pins with a .300 diameter head are designed for permanently fastening a fixture to concrete, concrete block, and structural steel. Use with compatible Strip Loads and powder actuated tools.
Tools: Hilti DX 2, DX 460F-8, Ramset Framemaster™ TS705P, SA270, TyMaster™, Formaster™, Strong-Tie PTP-27 LMAGRKT, PT-27, Powers PA3500, P35S, P2700, P2200
Availability:
Require a Quote?
Instant quotes online are available to all our trade customers using Trade Portal.
Login and simply add items into your cart. View and edit your cart before pressing Submit Quote. Quotes will be available instantly online.
Description
For applications when time consuming hole plotting is eliminated both in the fixture and the base material resulting in faster installation and reduced costs. The pins are formed with a 0.300”(7.6mm) diameter head on one end, a 0.145”(3.7mm) diameter shank in various lengths, and a specially designed point to allow proper penetration into the base material.
Product List
| SKU | Description | Availability | List Price | Pack |
|---|---|---|---|---|
| Pack: |
More Information
| Delivery | SHIPS IN 1 - 2 DAYS |
|---|
Technical Information
| SKU | Length | Shank Dia. | Shank Dia. | Description |
|---|---|---|---|---|
| 1008.0320300 | 32mm (8mm head) | 3.7mm | 3.7mm | 32mm (8mm head) |
| 1008.0380300 | 38mm (8mm head) | 3.7mm | 3.7mm | 38mm (8mm head) |
| 1008.0500300 | 50mm (8mm head) | 3.7mm | 3.7mm | 50mm (8mm head) |
| 1008.0570300 | 57mm (8mm head) | 3.7mm | 3.7mm | 57mm (8mm head) |
| 1008.0650300 | 65mm (8mm head) | 3.7mm | 3.7mm | 65mm (8mm head) |
| 1008.0750300 | 75mm (8mm head) | 3.7mm | 3.7mm | 75mm (8mm head) |
Documents
