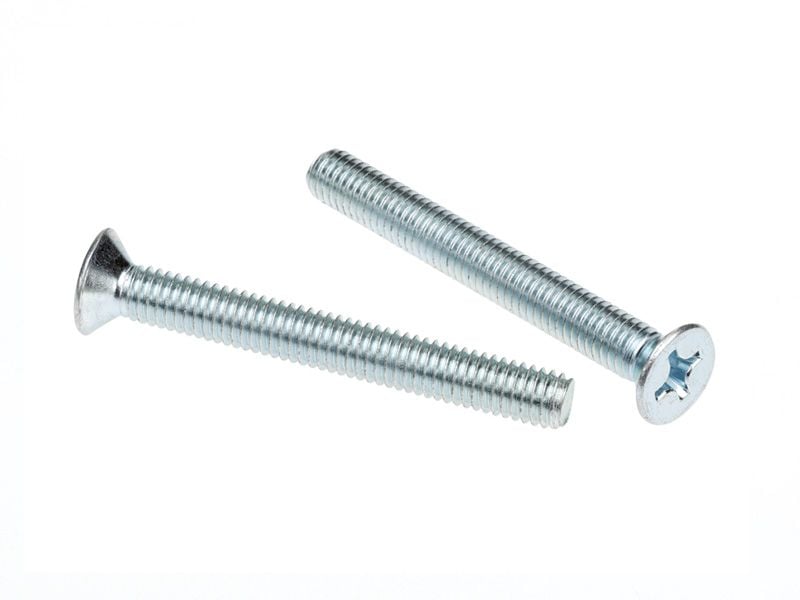

Countersunk (Flat) Philips Drive Machine Screws
Flat Head Metal Threads Zinc Plated Screws
- Countersunk machine screw thread, will sit flush into a tappered hole
- Philips drive
- Metric thread
- Zinc plated
- Length quoted is the overall size
- Stainless steel version available
Availability:
Require a Quote?
Instant quotes online are available to all our trade customers using Trade Portal.
Login and simply add items into your cart. View and edit your cart before pressing Submit Quote. Quotes will be available instantly online.
Product List
| SKU | Description | Availability | List Price | Pack |
|---|---|---|---|---|
| Pack: |
More Information
| Delivery | SHIPS IN 1 - 2 DAYS |
|---|---|
| Material Grade | Carbon Steel |
| Coating & Plating | Zinc Clear |
| Head Type | Countersunk |
| Driver Type | Philips Bit |
| Diameter / Gauge | M3, M4, M5, M6 |
| Thread Type | Metric |
| Use for | HVAC, Joinery Cabinetry, Machinery Assembly |
Technical Information
| SKU | Dia. | Length | Pitch | Driver Bit | Description |
|---|---|---|---|---|---|
| 1449.0030005 | M3 | 5mm | |||
| 1449.0030006 | M3 | 6mm | |||
| 1449.0030008 | M3 | 8mm | |||
| 1449.0030010 | M3 | 10mm | |||
| 1449.0030012 | M3 | 12mm | |||
| 1449.0030016 | M3 | 16mm | |||
| 1449.0030020 | M3 | 20mm | |||
| 1449.0030025 | M3 | 25mm | |||
| 1449.0040006 | M4 | 6mm | |||
| 1449.0040008 | M4 | 8mm | 0.7 | M4 x 8mm | |
| 1449.0040010 | M4 | 10mm | M4 x 10mm | ||
| 1449.0040012 | M4 | 12mm | M4 x 12mm | ||
| 1449.0040016 | M4 | 16mm | M4 x 16mm | ||
| 1449.0040020 | M4 | 20mm | M4 x 20mm | ||
| 1449.0040025 | M4 | 25mm | M4 x 25mm | ||
| 1449.0040030 | M4 | 30mm | M4 x 30mm | ||
| 1449.0040035 | M4 | 35mm | |||
| 1449.0040040 | M4 | 40mm | |||
| 1449.0040050 | M4 | 50mm | |||
| 1449.0050008 | M5 | 8mm | 0.8 | M5 x 8mm | |
| 1449.0050010 | M5 | 10mm | M5 x 10mm | ||
| 1449.0050012 | M5 | 12mm | M5 x 12mm | ||
| 1449.0050016 | M5 | 16mm | M5 x 16mm | ||
| 1449.0050020 | M5 | 20mm | M5 x 20mm | ||
| 1449.0050025 | M5 | 25mm | M5 x 25mm | ||
| 1449.0050030 | M5 | 30mm | M5 x 30mm | ||
| 1449.0050035 | M5 | 35mm | M5 x 35mm | ||
| 1449.0050040 | M5 | 40mm | M5 x 40mm | ||
| 1449.0050045 | M5 | 45mm | M5 x 45mm | ||
| 1449.0050050 | M5 | 50mm | M5 x 50mm | ||
| 1449.0050065 | M5 | 65mm | M5 x 65mm | ||
| 1449.0050075 | M5 | 75mm | M5 x 75mm | ||
| 1449.0060010 | M6 | 10mm | 1 | M6 x 10mm | |
| 1449.0060012 | M6 | 12mm | M6 x 12mm | ||
| 1449.0060016 | M6 | 16mm | M6 x 16mm | ||
| 1449.0060020 | M6 | 20mm | M6 x 20mm | ||
| 1449.0060025 | M6 | 25mm | M6 x 25mm | ||
| 1449.0060030 | M6 | 30mm | M6 x 30mm | ||
| 1449.0060035 | M6 | 35mm | M6 x 35mm | ||
| 1449.0060040 | M6 | 40mm | M6 x 40mm | ||
| 1449.0060045 | M6 | 45mm | M6 x 45mm | ||
| 1449.0060050 | M6 | 50mm | M6 x 50mm |
