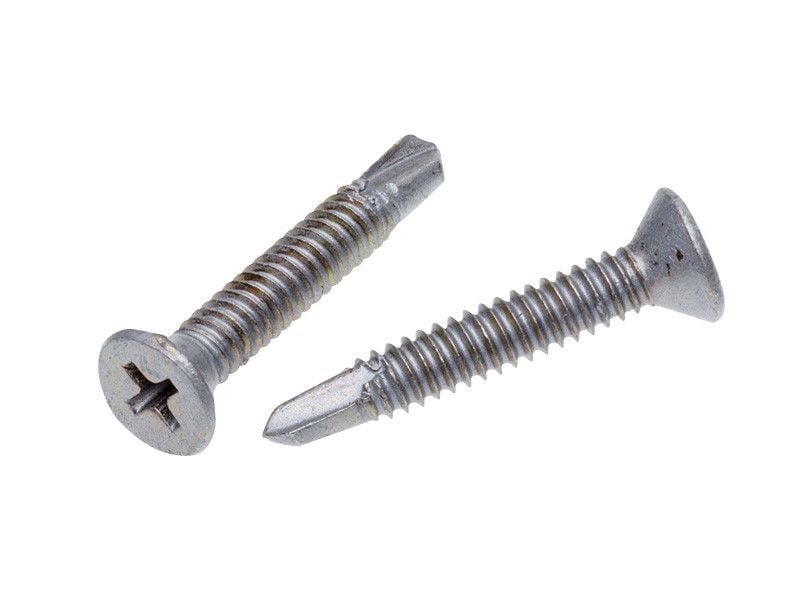

Countersunk Self Drilling Screws CL3 Fine Thread
Countersunk Self Drilling Screws CL3 Fine Thread
- 10g screws with 24 TPI coarse thread
- Class 3 galvanised for external use
- Philips drive countersunk
- Coarse thread available
Availability:
Require a Quote?
Instant quotes online are available to all our trade customers using Trade Portal.
Login and simply add items into your cart. View and edit your cart before pressing Submit Quote. Quotes will be available instantly online.
Description
INSTALLATION
- Drill Capacity: Fine Thread (1.2-5mm of Steel), Coarse Thread (0.75-3.5mm of Steel)
- Driver Type: Philips P2
- Installation Speed: 2300-2500 RPM Max Drill Speed

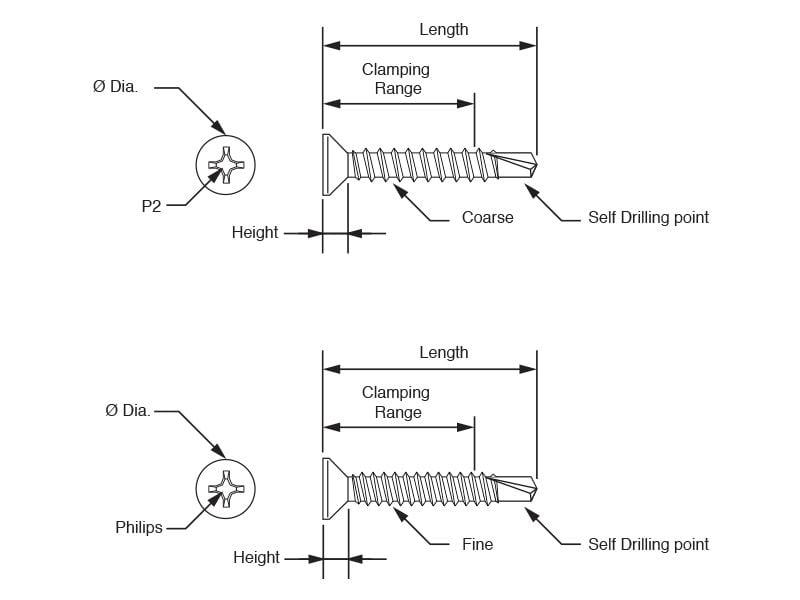

PHYSICAL CHARACTERISTICS
- Head Type: Countersunk Head
- Point Type: Self Drilling point
- Material: Carbon Steel
- Finish: Class 3 Mechanical Galvanised
- Head Dia: 9.3mm
- Head Height: 4mm
Product List
| SKU | Description | Availability | List Price | Pack |
|---|---|---|---|---|
| Pack: |
More Information
| Delivery | SHIPS IN 1 - 2 DAYS |
|---|---|
| Coating & Plating | Class 3 (Mech. Gal) |
| Material Grade | Carbon Steel |
| Head Type | Countersunk |
| Driver Type | Philips Bit |
| Diameter / Gauge | 10g |
| Point Type | Drill Point No.3 |
| Thread Type | Fine |
| For use with | Aluminium, Sheet Metal, Steel |
| Application | Self Driller, Steel-to-Steel Self Drilling |
Technical Information
| SKU | Gauge x Length | Coating | Driver Bit | Thread Type | Gauge x Length |
|---|---|---|---|---|---|
| 1105.0100030 | 10-24 x 30mm | Class 3 | Ph2 | Fine | 10-24 x 30mm |
| 1105.0100040 | 10-24 x 40mm | Class 3 | Ph2 | Fine | 10-24 x 40mm |
| 1105.0100050 | 10-24 x 50mm | Class 3 | Ph2 | Fine | 10-24 x 50mm |
| 1105.0100065 | 10-24 x 65mm | Class 3 | Ph2 | Fine | 10-24 x 65mm |
Documents
