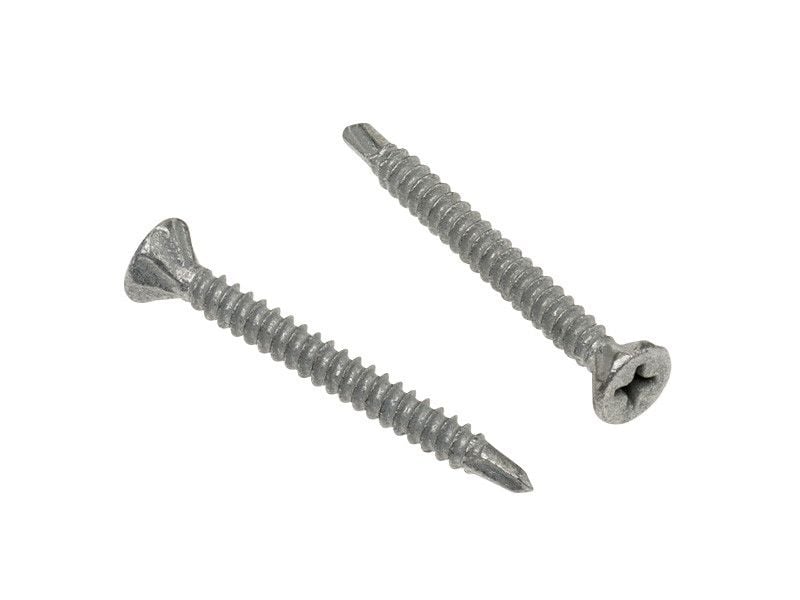

Countersunk Rib Head SD Screws CL3
Countersunk Rib Head SD Screws CL3
Availability:
Require a Quote?
Instant quotes online are available to all our trade customers using Trade Portal.
Login and simply add items into your cart. View and edit your cart before pressing Submit Quote. Quotes will be available instantly online.
Description
INSTALLATION
- Drill Capacity: 0.75-2.5mm of Steel
- Driver Type: Philips P2
- Installation Speed: 2300-2500 RPM Max Drill Speed

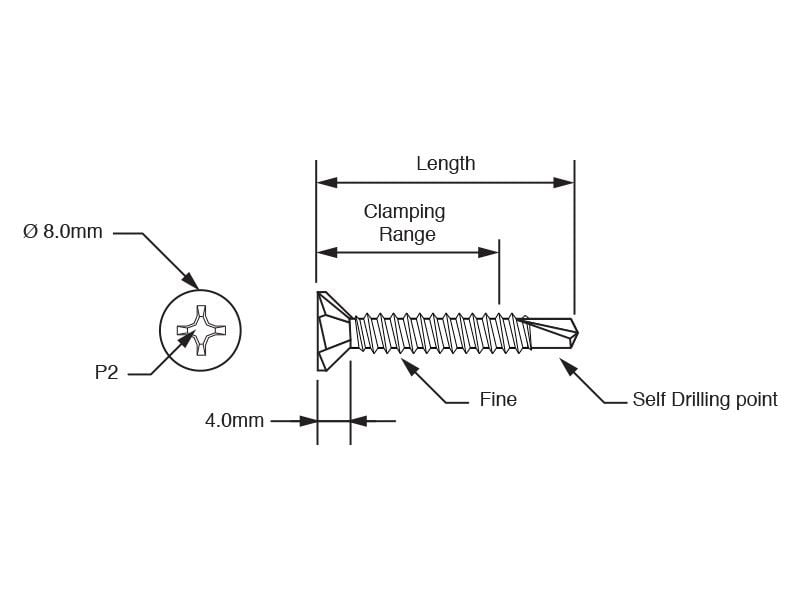

PHYSICAL CHARACTERISTICS
- Head Type: Ribbed Countersunk Head
- Point Type: Self Drilling point
- Material: Carbon Steel
- Finish: Class 3 Mechanical Galvanised
- Head Dia: 8mm
- Head Height: 4mm
Product List
| SKU | Description | Availability | List Price | Pack |
|---|---|---|---|---|
| Pack: |
More Information
| Delivery | SHIPS IN 1 - 2 DAYS |
|---|---|
| Coating & Plating | Class 3 (Mech. Gal) |
| Material Grade | Carbon Steel |
| Head Type | Countersunk Ribbed |
| Driver Type | Philips Bit |
| Diameter / Gauge | 8g |
| Point Type | Drill Point No.3 |
| Thread Type | Fine |
| For use with | Aluminium, Steel |
| Application | Steel-to-Steel Self Drilling |
Technical Information
| SKU | Gauge x Length | Coating | Driver Bit | Thread Type | Gauge x Length |
|---|---|---|---|---|---|
| 1127.0080025 | 8-18 x 25mm | Class 3 | Ph2 | Fine | 8-18 x 25mm |
| 1127.0080030 | 8-18 x 30mm | Class 3 | Ph2 | Fine | 8-18 x 30mm |
