Bent Anchor L-Bolts
Bent Anchor L-Bolts

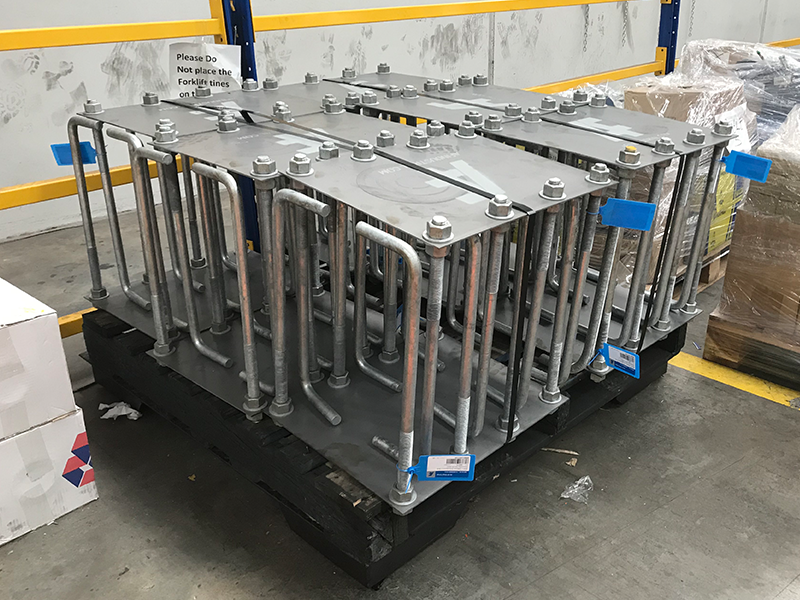

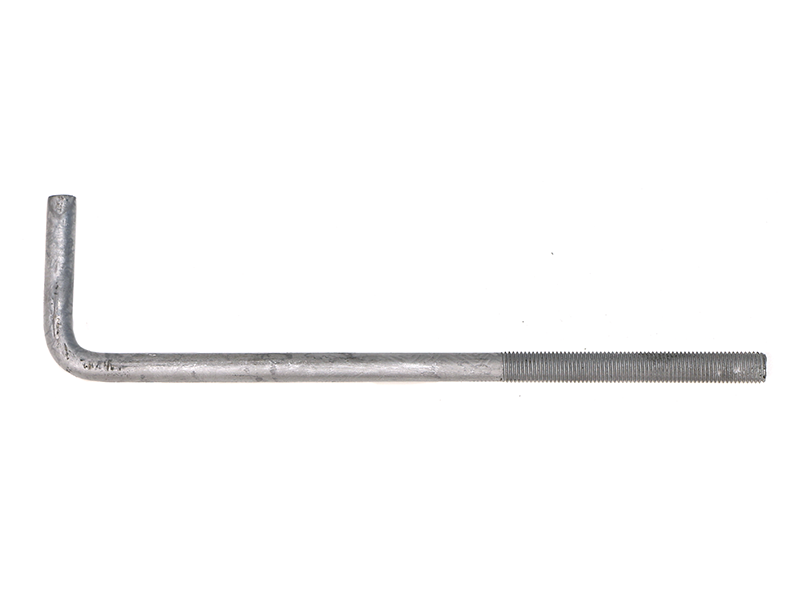

L-bolts are bent at 90º for the purpose of casting into concrete usually to supports a steel column section such as light bolts or gantry posts. The bent section provides resistance in the embedded concrete foundation when force is acted on the anchor. Can be incorporated as part of hold down bolt cage configuration.
Bent L-bolts are manufactured from M12 to M36 in diameter to any specification.
Provided usually in hot dipped galvanised finish but also can be supplied in plain steel or made from 304 and 316 stainless steel upon request.
Availability:
Require a Quote?
Instant quotes online are available to all our trade customers using Trade Portal.
Login and simply add items into your cart. View and edit your cart before pressing Submit Quote. Quotes will be available instantly online.
Description
How to enquire?
Download the RFQ spec sheet below under Documents. Fill in your requirements and email customer support.

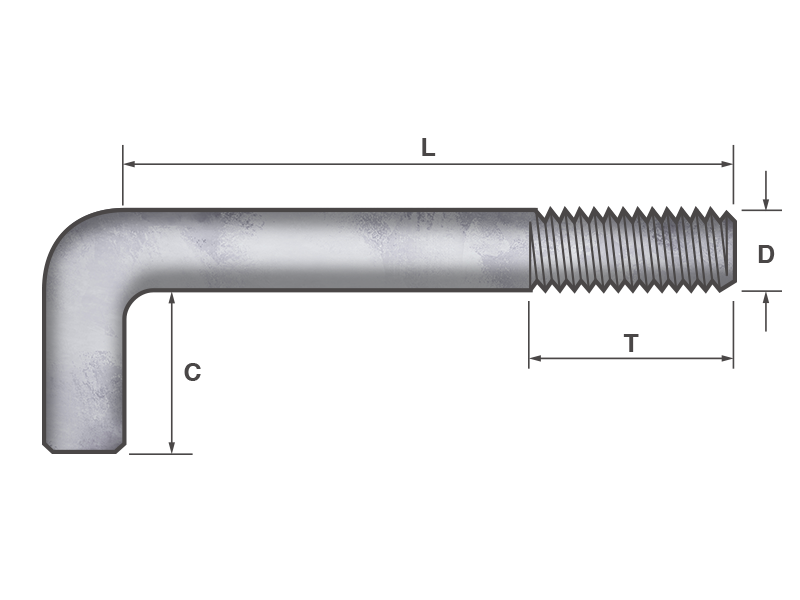

- Typical dimension: Diameter (D) x Length (L) x Leg Length (C) x Thread (T)
- Specify material grade and coating or finish.
- Compatible nuts and washers can also be specified.
- Delivery details.
- Please note there are general miniums depending on diameter and length.
Product List
| SKU | Description | Availability | List Price | Pack |
|---|---|---|---|---|
| Pack: |
More Information
| Delivery | Made to order. |
|---|---|
| Diameter / Gauge | M12, M16, M20, M24, M30, M36 |
| Thread Type | Coarse |
Technical Information
| SKU | Bar Dia. | Length | Leg Length | Thread Portion |
|---|---|---|---|---|
| 6MADE | D | L | C | T |
Documents
