AnchorFoot™ 316 Stainless Cast-In Ferrules
AnchorFoot 316 Stainless Cast-In Ferrules
AnchorFoot™ 316 Stainless Cast-In Ferrules are corrosion-resistant threaded concrete inserts engineered for demanding environments and long-term durability. Installed into formwork before pouring concrete, these cast-in ferrules provide a permanent anchor point for metric-threaded fasteners once the concrete has cured.

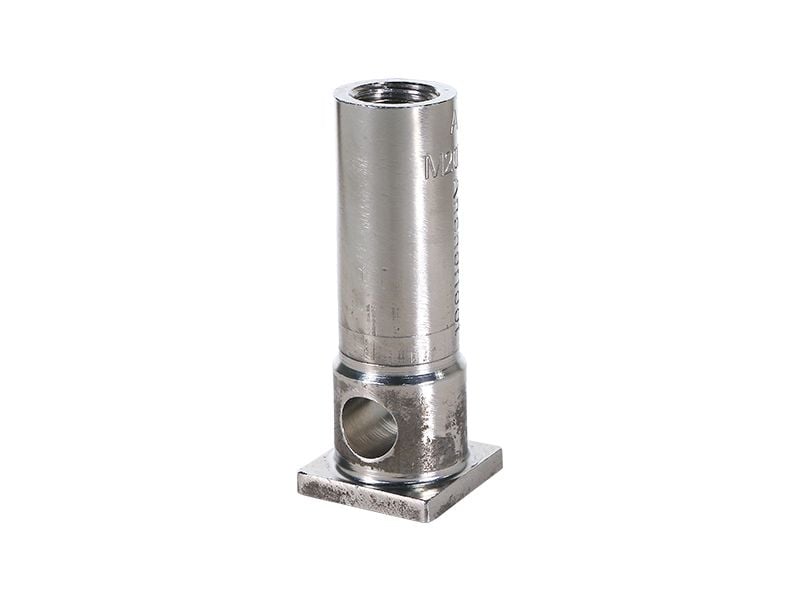

The AnchorFoot™ design incorporates a round threaded body with a large square foot base and an integrated reo bar cross hole. This configuration enhances anchorage performance by improving load distribution within the concrete and reducing the risk of rotation or pull-out. Manufactured with 316 stainless steel and supported by Australian engineering expertise, these ferrules are well-suited to precast concrete, coastal, marine, and corrosive environments where long service life is required.
Availability:
Require a Quote?
Instant quotes online are available to all our trade customers using Trade Portal.
Login and simply add items into your cart. View and edit your cart before pressing Submit Quote. Quotes will be available instantly online.
Description
Key Features
- 316 stainless steel for superior corrosion resistance
- Square foot base for improved anchorage in concrete
- Reo bar cross hole for enhanced load transfer
- Installed as a cast-in threaded insert before pouring
- Designed for precast concrete and harsh environments
- Supported by Australian engineering team
Load & Design Disclaimer
Indicative load capacities are provided as a guide only. Final anchor performance is dependent on concrete strength, embedment depth, reinforcement detailing and installation conditions. Always refer to project-specific engineering design and applicable Australian Standards.
FAQs
Q1. When should a 316 stainless cast-in ferrule be used?
316 stainless cast-in ferrules are recommended for marine, coastal or corrosive environments where long-term corrosion resistance is required.
Q2. Does stainless steel change the installation method?
No. Installation is the same as HDG ferrules, with the insert fixed in position prior to pouring concrete.
Q3. Why is a reo bar cross hole important in a cast-in ferrule?
The reo bar cross hole allows reinforcement to pass through the ferrule, improving load transfer into the surrounding concrete.
Q4. Are 316 stainless ferrules suitable for precast concrete?
Yes. They are commonly used in precast concrete elements where durability and corrosion resistance are critical.
Product List
| SKU | Description | Availability | List Price | Pack |
|---|---|---|---|---|
| Pack: |
More Information
| Material Grade | 316 Stainless Steel |
|---|---|
| Coating & Plating | Plain / Unplated |

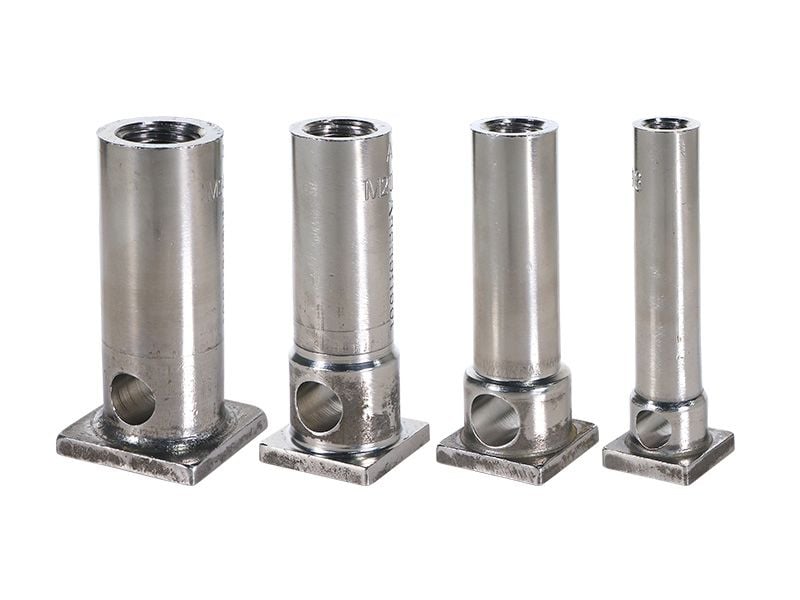

| Diameter / Gauge | M12, M16, M20, M24 |
| Thread Type | Metric |
| Use for | Formwork |
Technical Information

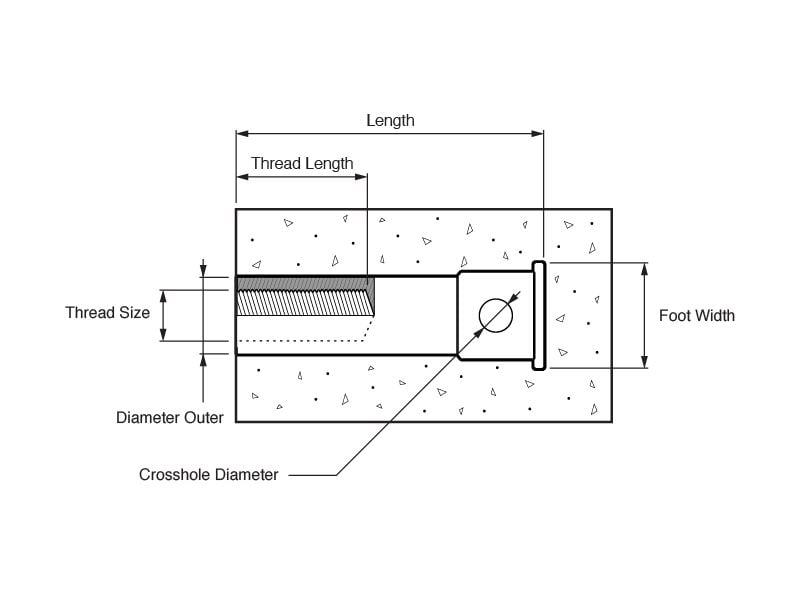

| SKU | Int. Thread x Overall Length: | Thread Insert: | Foot Shape: | Cross Hole Dia.: |
|---|---|---|---|---|
| 2832.0120096 | M12 x 96mm Cast-In Ferrule | M12 x 30mm | 28mm Square | 8mm |
| 2832.0160096 | M16 x 96mm Cast-In Ferrule | M16 x 40mm | 33mm Square | 10mm |
| 2832.0200096 | M20 x 96mm Cast-In Ferrule | M20 x 50mm | 37mm Square | 15mm |
| 2832.0240096 | M24 x 96mm Cast-In Ferrule | M24 x 50mm | 48mm Square | 18mm |
