5/8" L7 Inorganic Zinc 'Esso Spec' Stud Bolts

Skip to the beginning of the images gallery

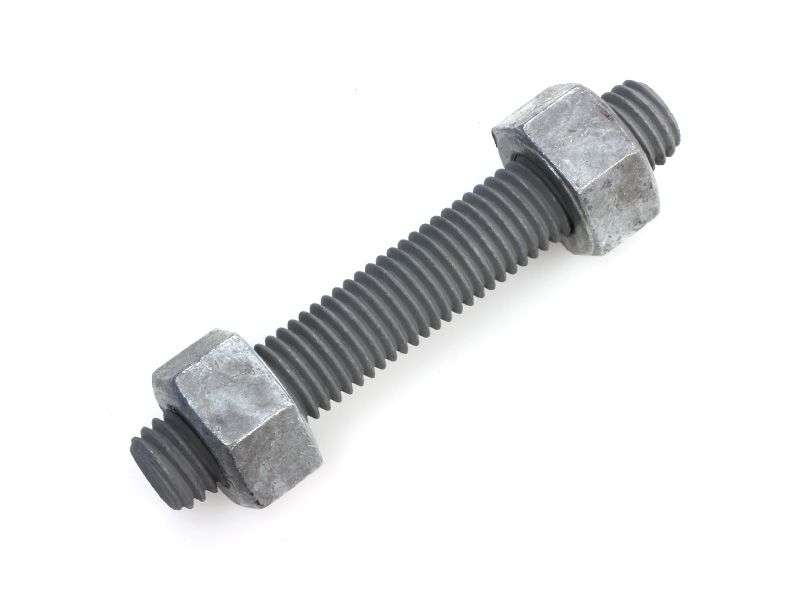

5/8" Inorganic Zinc Silicate L7 Stud Bolt Kit

Inorganic Zinc Silicate (IZS) provides excellent corrosion resistant properties providing fasteners with extended service life in harsh environments, and can be specified as a primer for a multiple finish high-build systems.

Particularly ideal for high corrosive coastal environments, IZS provides superior galvanic corrosion protection when compared with hot-dipped galvanising. Used on studbolts for off-shore platforms it is often referred to as "Esso Spec" within the fastener industry.

Stud lengths are measured first leading thread to last leading thread.
All kits are supplied with 2 heavy hex nuts.
ASTM A193/A194 stud bolts and nuts come standard with EN 3.1 certification.

Submit items for a quote by simply selecting length, and quantity and then add to cart. View Cart to submit quote (available to all account customers with Trade Portal access).

SKU 6L7SBNUIZS16

Availability:

Pack:

Buy

Sub-total: / ex. gst.

Grouped product items
Product Name	Qty
5/8” x 50 mm UNC L7 Studbolt A320, 7L A194 Nuts IZS From $7.60
5/8” x 60 mm UNC L7 Studbolt A320, 7L A194 Nuts IZS From $8.10
5/8” x 65 mm UNC L7 Studbolt A320, 7L A194 Nuts IZS From $8.30
5/8” x 70 mm UNC L7 Studbolt A320, 7L A194 Nuts IZS From $8.45
5/8” x 75 mm UNC L7 Studbolt A320, 7L A194 Nuts IZS From $8.65
5/8” x 80 mm UNC L7 Studbolt A320, 7L A194 Nuts IZS From $9.00
5/8” x 90 mm UNC L7 Studbolt A320, 7L A194 Nuts IZS From $9.40
5/8” x 95 mm UNC L7 Studbolt A320, 7L A194 Nuts IZS From $9.55
5/8” x 100 mm UNC L7 Studbolt A320, 7L A194 Nuts IZS From $9.80
5/8” x 110 mm UNC L7 Studbolt A320, 7L A194 Nuts IZS From $10.30
5/8” x 115 mm UNC L7 Studbolt A320, 7L A194 Nuts IZS From $10.45
5/8” x 120 mm UNC L7 Studbolt A320, 7L A194 Nuts IZS From $10.70
5/8” x 125 mm UNC L7 Studbolt A320, 7L A194 Nuts IZS From $10.90
5/8” x 130 mm UNC L7 Studbolt A320, 7L A194 Nuts IZS From $11.20
5/8” x 140 mm UNC L7 Studbolt A320, 7L A194 Nuts IZS From $11.55
5/8” x 145 mm UNC L7 Studbolt A320, 7L A194 Nuts IZS From $11.80
5/8” x 150 mm UNC L7 Studbolt A320, 7L A194 Nuts IZS From $12.00
5/8” x 160 mm UNC L7 Studbolt A320, 7L A194 Nuts IZS From $12.55
5/8” x 165 mm UNC L7 Studbolt A320, 7L A194 Nuts IZS From $12.70
5/8” x 170 mm UNC L7 Studbolt A320, 7L A194 Nuts IZS From $12.90
5/8” x 180 mm UNC L7 Studbolt A320, 7L A194 Nuts IZS From $13.35
5/8” x 185 mm UNC L7 Studbolt A320, 7L A194 Nuts IZS From $13.60
5/8” x 190 mm UNC L7 Studbolt A320, 7L A194 Nuts IZS From $13.80
5/8” x 195 mm UNC L7 Studbolt A320, 7L A194 Nuts IZS From $14.00
5/8” x 200 mm UNC L7 Studbolt A320, 7L A194 Nuts IZS From $14.25
5/8” x 210 mm UNC L7 Studbolt A320, 7L A194 Nuts IZS From $14.70
5/8” x 215 mm UNC L7 Studbolt A320, 7L A194 Nuts IZS From $14.90
5/8” x 220 mm UNC L7 Studbolt A320, 7L A194 Nuts IZS From $15.10
5/8” x 230 mm UNC L7 Studbolt A320, 7L A194 Nuts IZS From $15.60
5/8” x 235 mm UNC L7 Studbolt A320, 7L A194 Nuts IZS From $15.80
5/8” x 240 mm UNC L7 Studbolt A320, 7L A194 Nuts IZS From $16.00
5/8” x 250 mm UNC L7 Studbolt A320, 7L A194 Nuts IZS From $16.50
5/8” x 255 mm UNC L7 Studbolt A320, 7L A194 Nuts IZS From $0.00
5/8” x 260 mm UNC L7 Studbolt A320, 7L A194 Nuts IZS From $0.00
5/8” x 265 mm UNC L7 Studbolt A320, 7L A194 Nuts IZS From $0.00
5/8” x 275 mm UNC L7 Studbolt A320, 7L A194 Nuts IZS From $0.00
5/8” x 280 mm UNC L7 Studbolt A320, 7L A194 Nuts IZS From $0.00
5/8” x 285 mm UNC L7 Studbolt A320, 7L A194 Nuts IZS From $0.00
5/8” x 290 mm UNC L7 Studbolt A320, 7L A194 Nuts IZS From $0.00
5/8” x 300 mm UNC L7 Studbolt A320, 7L A194 Nuts IZS From $0.00
5/8” x 305 mm UNC L7 Studbolt A320, 7L A194 Nuts IZS From $0.00
5/8” x 310 mm UNC L7 Studbolt A320, 7L A194 Nuts IZS From $0.00
5/8” x 320 mm UNC L7 Studbolt A320, 7L A194 Nuts IZS From $0.00
5/8” x 325 mm UNC L7 Studbolt A320, 7L A194 Nuts IZS From $0.00
5/8” x 330 mm UNC L7 Studbolt A320, 7L A194 Nuts IZS From $0.00
5/8” x 335 mm UNC L7 Studbolt A320, 7L A194 Nuts IZS From $0.00
5/8” x 345 mm UNC L7 Studbolt A320, 7L A194 Nuts IZS From $0.00
5/8” x 350 mm UNC L7 Studbolt A320, 7L A194 Nuts IZS From $0.00

Build A Quote?

Store Item

SKU:

Product List

SKU	Description	Availability	List Price	Pack

				Pack:

More Information

More Information
Delivery	3 - 4 WEEKS. Lead times may vary depending on quantity.
Diameter / Gauge	5/8"
Thread Type	UNC
Bolt / Stud Property	ASTM A320 L7
Nut Properties	ASTM A194 Gr 7L
Material / Finish	Inorganic Zinc Silicate (IZS)
Use for	Petrochemical

Technical Information

SKU	Dia. x Length	Finish	Tensile, min [ MPa ]	Yield, min [ MPa ]
1302.0160050	5/8” x 50mm UNC	IZS	860 MPa	725 MPa
1302.0160060	5/8” x 60mm UNC	IZS	860 MPa	725 MPa
1302.0160065	5/8” x 65mm UNC	IZS	860 MPa	725 MPa
1302.0160070	5/8” x 70mm UNC	IZS	860 MPa	725 MPa
1302.0160075	5/8” x 75mm UNC	IZS	860 MPa	725 MPa
1302.0160080	5/8” x 80mm UNC	IZS	860 MPa	725 MPa
1302.0160090	5/8” x 90mm UNC	IZS	860 MPa	725 MPa
1302.0160095	5/8” x 95mm UNC	IZS	860 MPa	725 MPa
1302.0160100	5/8” x 100mm UNC	IZS	860 MPa	725 MPa
1302.0160110	5/8” x 110mm UNC	IZS	860 MPa	725 MPa
1302.0160115	5/8” x 115mm UNC	IZS	860 MPa	725 MPa
1302.0160120	5/8” x 120mm UNC	IZS	860 MPa	725 MPa
1302.0160125	5/8” x 125mm UNC	IZS	860 MPa	725 MPa
1302.0160130	5/8” x 130mm UNC	IZS	860 MPa	725 MPa
1302.0160140	5/8” x 140mm UNC	IZS	860 MPa	725 MPa
1302.0160145	5/8” x 145mm UNC	IZS	860 MPa	725 MPa
1302.0160150	5/8” x 150mm UNC	IZS	860 MPa	725 MPa
1302.0160160	5/8” x 160mm UNC	IZS	860 MPa	725 MPa
1302.0160165	5/8” x 165mm UNC	IZS	860 MPa	725 MPa
1302.0160170	5/8” x 170mm UNC	IZS	860 MPa	725 MPa
1302.0160180	5/8” x 180mm UNC	IZS	860 MPa	725 MPa
1302.0160185	5/8” x 185mm UNC	IZS	860 MPa	725 MPa
1302.0160190	5/8” x 190mm UNC	IZS	860 MPa	725 MPa
1302.0160195	5/8” x 195mm UNC	IZS	860 MPa	725 MPa
1302.0160200	5/8” x 200mm UNC	IZS	860 MPa	725 MPa
1302.0160210	5/8” x 210mm UNC	IZS	860 MPa	725 MPa
1302.0160215	5/8” x 215mm UNC	IZS	860 MPa	725 MPa
1302.0160220	5/8” x 220mm UNC	IZS	860 MPa	725 MPa
1302.0160230	5/8” x 230mm UNC	IZS	860 MPa	725 MPa
1302.0160235	5/8” x 235mm UNC	IZS	860 MPa	725 MPa
1302.0160240	5/8” x 240mm UNC	IZS	860 MPa	725 MPa
1302.0160250	5/8” x 250mm UNC	IZS	860 MPa	725 MPa
1302.0160255	5/8” x 255mm UNC	IZS	860 MPa	725 MPa
1302.0160260	5/8” x 260mm UNC	IZS	860 MPa	725 MPa
1302.0160265	5/8” x 265mm UNC	IZS	860 MPa	725 MPa
1302.0160275	5/8” x 275mm UNC	IZS	860 MPa	725 MPa
1302.0160280	5/8” x 280mm UNC	IZS	860 MPa	725 MPa
1302.0160285	5/8” x 285mm UNC	IZS	860 MPa	725 MPa
1302.0160290	5/8” x 290mm UNC	IZS	860 MPa	725 MPa
1302.0160300	5/8” x 300mm UNC	IZS	860 MPa	725 MPa
1302.0160305	5/8” x 305mm UNC	IZS	860 MPa	725 MPa
1302.0160310	5/8” x 310mm UNC	IZS	860 MPa	725 MPa
1302.0160320	5/8” x 320mm UNC	IZS	860 MPa	725 MPa
1302.0160325	5/8” x 325mm UNC	IZS	860 MPa	725 MPa
1302.0160330	5/8” x 330mm UNC	IZS	860 MPa	725 MPa
1302.0160335	5/8” x 335mm UNC	IZS	860 MPa	725 MPa
1302.0160345	5/8” x 345mm UNC	IZS	860 MPa	725 MPa
1302.0160350	5/8” x 350mm UNC	IZS	860 MPa	725 MPa

Documents

5/8" UNC IZS L7/Gr7 Stud Bolt Kit A320/A194

5/8" Inorganic Zinc Silicate L7 Stud Bolt Kit
