5/8" UNC IZS B7/2H Stud Bolt Kit A193/A194

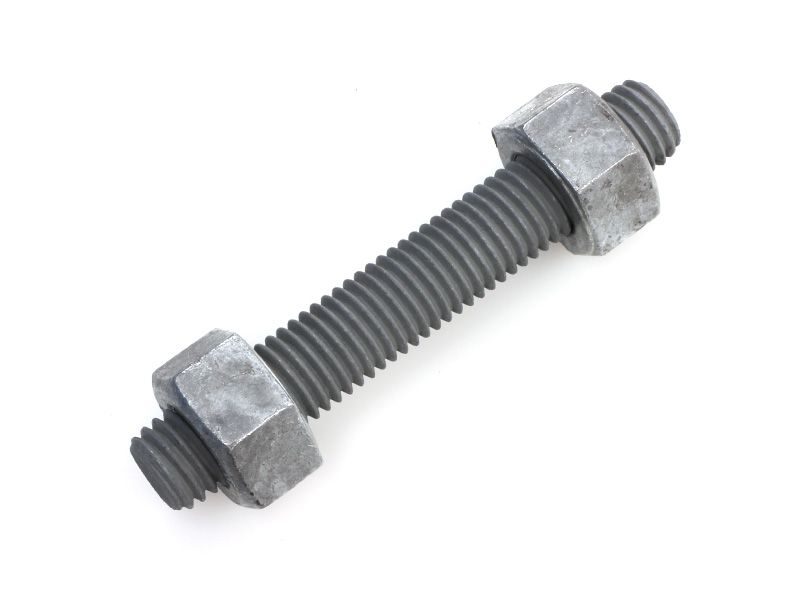

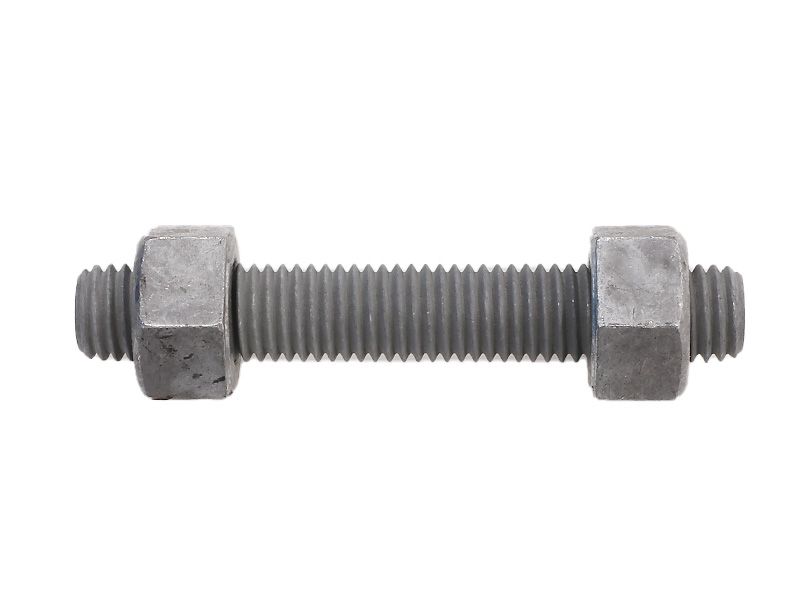

5/8" Inorganic Zinc Silicate B7, 2H Stud Bolt Kit
Inorganic Zinc Silicate (IZS) provides excellent corrosion resistant properties providing fasteners with extended service life in harsh environments, and can be specified as a primer for a multiple finish high-build systems.
Particularly ideal for high corrosive coastal environments, IZS provides superior galvanic corrosion protection when compared with hot-dipped galvanising. Used on studbolts for off-shore platforms it is often referred to as "Esso Spec" within the fastener industry.
- Stud lengths are measured first leading thread to last leading thread.
- All kits are supplied with 2 heavy hex nuts.
- ASTM A193/A194 stud bolts and nuts come standard with EN 3.1 certification.
Submit items for a quote by simply selecting length, and quantity and then add to cart. View Cart to submit quote (available to all account customers with Trade Portal access).
Availability:
Require a Quote?
Instant quotes online are available to all our trade customers using Trade Portal.
Login and simply add items into your cart. View and edit your cart before pressing Submit Quote. Quotes will be available instantly online.
Product List
| SKU | Description | Availability | List Price | Pack |
|---|---|---|---|---|
| Pack: | ||||
More Information
| Delivery | 3 - 4 WEEKS. Lead times may vary depending on quantity. |
|---|---|
| Diameter / Gauge | 5/8" |
| Thread Type | UNC |
| Bolt / Stud Property | ASTM A193 B7 |
| Nut Properties | ASTM A194 Gr 2H |
| Material / Finish | Inorganic Zinc Silicate (IZS) |
| Use for | Petrochemical |
Technical Information
| SKU | Dia. x Length | Finish | Tensile, min [ MPa ] | Yield, min [ MPa ] |
|---|---|---|---|---|
| 1282.0160050 | 5/8” x 50mm UNC | IZS | 860 MPa | 720 MPa |
| 1282.0160060 | 5/8” x 60mm UNC | IZS | 860 MPa | 720 MPa |
| 1282.0160065 | 5/8” x 65mm UNC | IZS | 860 MPa | 720 MPa |
| 1282.0160070 | 5/8” x 70mm UNC | IZS | 860 MPa | 720 MPa |
| 1282.0160075 | 5/8” x 75mm UNC | IZS | 860 MPa | 720 MPa |
| 1282.0160080 | 5/8” x 80mm UNC | IZS | 860 MPa | 720 MPa |
| 1282.0160090 | 5/8” x 90mm UNC | IZS | 860 MPa | 720 MPa |
| 1282.0160095 | 5/8” x 95mm UNC | IZS | 860 MPa | 720 MPa |
| 1282.0160100 | 5/8” x 100mm UNC | IZS | 860 MPa | 720 MPa |
| 1282.0160110 | 5/8” x 110mm UNC | IZS | 860 MPa | 720 MPa |
| 1282.0160115 | 5/8” x 115mm UNC | IZS | 860 MPa | 720 MPa |
| 1282.0160120 | 5/8” x 120mm UNC | IZS | 860 MPa | 720 MPa |
| 1282.0160125 | 5/8” x 125mm UNC | IZS | 860 MPa | 720 MPa |
| 1282.0160130 | 5/8” x 130mm UNC | IZS | 860 MPa | 720 MPa |
| 1282.0160140 | 5/8” x 140mm UNC | IZS | 860 MPa | 720 MPa |
| 1282.0160145 | 5/8” x 145mm UNC | IZS | 860 MPa | 720 MPa |
| 1282.0160150 | 5/8” x 150mm UNC | IZS | 860 MPa | 720 MPa |
| 1282.0160160 | 5/8” x 160mm UNC | IZS | 860 MPa | 720 MPa |
| 1282.0160165 | 5/8” x 165mm UNC | IZS | 860 MPa | 720 MPa |
| 1282.0160170 | 5/8” x 170mm UNC | IZS | 860 MPa | 720 MPa |
| 1282.0160180 | 5/8” x 180mm UNC | IZS | 860 MPa | 720 MPa |
| 1282.0160185 | 5/8” x 185mm UNC | IZS | 860 MPa | 720 MPa |
| 1282.0160190 | 5/8” x 190mm UNC | IZS | 860 MPa | 720 MPa |
| 1282.0160195 | 5/8” x 195mm UNC | IZS | 860 MPa | 720 MPa |
| 1282.0160200 | 5/8” x 200mm UNC | IZS | 860 MPa | 720 MPa |
| 1282.0160210 | 5/8” x 210mm UNC | IZS | 860 MPa | 720 MPa |
| 1282.0160215 | 5/8” x 215mm UNC | IZS | 860 MPa | 720 MPa |
| 1282.0160220 | 5/8” x 220mm UNC | IZS | 860 MPa | 720 MPa |
| 1282.0160230 | 5/8” x 230mm UNC | IZS | 860 MPa | 720 MPa |
| 1282.0160235 | 5/8” x 235mm UNC | IZS | 860 MPa | 720 MPa |
| 1282.0160240 | 5/8” x 240mm UNC | IZS | 860 MPa | 720 MPa |
| 1282.0160250 | 5/8” x 250mm UNC | IZS | 860 MPa | 720 MPa |
| 1282.0160255 | 5/8” x 255mm UNC | IZS | 860 MPa | 720 MPa |
| 1282.0160260 | 5/8” x 260mm UNC | IZS | 860 MPa | 720 MPa |
| 1282.0160265 | 5/8” x 265mm UNC | IZS | 860 MPa | 720 MPa |
| 1282.0160275 | 5/8” x 275mm UNC | IZS | 860 MPa | 720 MPa |
| 1282.0160280 | 5/8” x 280mm UNC | IZS | 860 MPa | 720 MPa |
| 1282.0160285 | 5/8” x 285mm UNC | IZS | 860 MPa | 720 MPa |
| 1282.0160290 | 5/8” x 290mm UNC | IZS | 860 MPa | 720 MPa |
| 1282.0160300 | 5/8” x 300mm UNC | IZS | 860 MPa | 720 MPa |
| 1282.0160305 | 5/8” x 305mm UNC | IZS | 860 MPa | 720 MPa |
| 1282.0160310 | 5/8” x 310mm UNC | IZS | 860 MPa | 720 MPa |
| 1282.0160320 | 5/8” x 320mm UNC | IZS | 860 MPa | 720 MPa |
| 1282.0160325 | 5/8” x 325mm UNC | IZS | 860 MPa | 720 MPa |
| 1282.0160330 | 5/8” x 330mm UNC | IZS | 860 MPa | 720 MPa |
| 1282.0160335 | 5/8” x 335mm UNC | IZS | 860 MPa | 720 MPa |
| 1282.0160345 | 5/8” x 345mm UNC | IZS | 860 MPa | 720 MPa |
| 1282.0160350 | 5/8” x 350mm UNC | IZS | 860 MPa | 720 MPa |
