5/8" UNC B7/2H Stud Bolt Kit A193/A194

Skip to the beginning of the images gallery

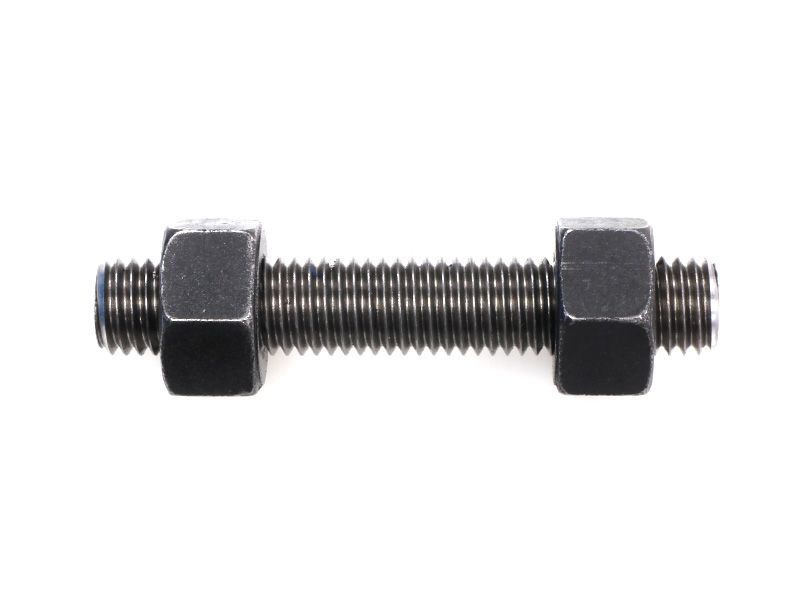

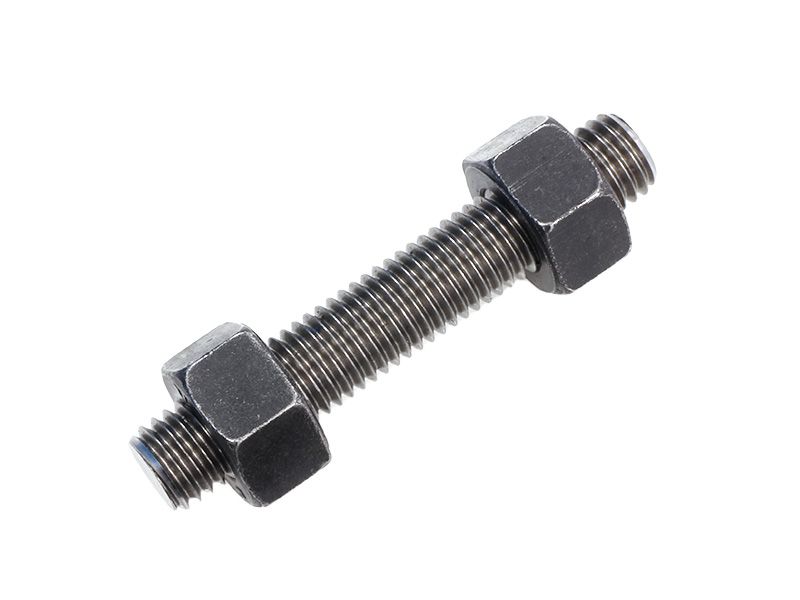

5/8" Plain B7, 2H Stud Bolt Kit

B7 stud bolts are commonly sold as plain (unplated) bare metal finish however we offer surface coatings which have benefits for corrosion protection, lubrication and or wear resistant properties.

Stud lengths are measured first leading thread to last leading thread.
All kits are supplied with 2x 2H grade heavy hex nuts.
ASTM A193/A194 stud bolts and nuts come standard with EN 3.1 certification.

Submit items for a quote by simply selecting length, and quantity and then add to cart. View Cart to submit quote (available to all account customers with Trade Portal access).

SKU 6B7SBNUU16

Availability:

Pack:

Buy

Sub-total: / ex. gst.

Grouped product items
Product Name	Qty
5/8” x 50 mm UNC B7 Studbolt A193, 2H A194 Nuts Plain From $3.15
5/8” x 60 mm UNC B7 Studbolt A193, 2H A194 Nuts Plain From $3.25
5/8” x 65 mm UNC B7 Studbolt A193, 2H A194 Nuts Plain From $3.30
5/8” x 70 mm UNC B7 Studbolt A193, 2H A194 Nuts Plain From $3.35
5/8” x 75 mm UNC B7 Studbolt A193, 2H A194 Nuts Plain From $3.40
5/8” x 80 mm UNC B7 Studbolt A193, 2H A194 Nuts Plain From $3.45
5/8” x 90 mm UNC B7 Studbolt A193, 2H A194 Nuts Plain From $3.55
5/8” x 95 mm UNC B7 Studbolt A193, 2H A194 Nuts Plain From $3.60
5/8” x 100 mm UNC B7 Studbolt A193, 2H A194 Nuts Plain From $3.65
5/8” x 110 mm UNC B7 Studbolt A193, 2H A194 Nuts Plain From $3.75
5/8” x 115 mm UNC B7 Studbolt A193, 2H A194 Nuts Plain From $3.80
5/8” x 120 mm UNC B7 Studbolt A193, 2H A194 Nuts Plain From $3.90
5/8” x 125 mm UNC B7 Studbolt A193, 2H A194 Nuts Plain From $4.00
5/8” x 130 mm UNC B7 Studbolt A193, 2H A194 Nuts Plain From $4.10
5/8” x 140 mm UNC B7 Studbolt A193, 2H A194 Nuts Plain From $4.20
5/8” x 145 mm UNC B7 Studbolt A193, 2H A194 Nuts Plain From $4.25
5/8” x 150 mm UNC B7 Studbolt A193, 2H A194 Nuts Plain From $4.30
5/8” x 160 mm UNC B7 Studbolt A193, 2H A194 Nuts Plain From $4.40
5/8” x 165 mm UNC B7 Studbolt A193, 2H A194 Nuts Plain From $4.45
5/8” x 170 mm UNC B7 Studbolt A193, 2H A194 Nuts Plain From $4.50
5/8” x 180 mm UNC B7 Studbolt A193, 2H A194 Nuts Plain From $4.60
5/8” x 185 mm UNC B7 Studbolt A193, 2H A194 Nuts Plain From $4.65
5/8” x 190 mm UNC B7 Studbolt A193, 2H A194 Nuts Plain From $4.70
5/8” x 195 mm UNC B7 Studbolt A193, 2H A194 Nuts Plain From $4.75
5/8” x 200 mm UNC B7 Studbolt A193, 2H A194 Nuts Plain From $4.80
5/8” x 210 mm UNC B7 Studbolt A193, 2H A194 Nuts Plain From $4.95
5/8” x 215 mm UNC B7 Studbolt A193, 2H A194 Nuts Plain From $5.05
5/8” x 220 mm UNC B7 Studbolt A193, 2H A194 Nuts Plain From $5.10
5/8” x 230 mm UNC B7 Studbolt A193, 2H A194 Nuts Plain From $5.20
5/8” x 235 mm UNC B7 Studbolt A193, 2H A194 Nuts Plain From $5.25
5/8” x 240 mm UNC B7 Studbolt A193, 2H A194 Nuts Plain From $5.35
5/8” x 250 mm UNC B7 Studbolt A193, 2H A194 Nuts Plain From $5.45
5/8” x 255 mm UNC B7 Studbolt A193, 2H A194 Nuts Plain From $0.00
5/8” x 260 mm UNC B7 Studbolt A193, 2H A194 Nuts Plain From $0.00
5/8” x 265 mm UNC B7 Studbolt A193, 2H A194 Nuts Plain From $0.00
5/8” x 275 mm UNC B7 Studbolt A193, 2H A194 Nuts Plain From $0.00
5/8” x 280 mm UNC B7 Studbolt A193, 2H A194 Nuts Plain From $0.00
5/8” x 285 mm UNC B7 Studbolt A193, 2H A194 Nuts Plain From $0.00
5/8” x 290 mm UNC B7 Studbolt A193, 2H A194 Nuts Plain From $0.00
5/8” x 300 mm UNC B7 Studbolt A193, 2H A194 Nuts Plain From $0.00
5/8” x 305 mm UNC B7 Studbolt A193, 2H A194 Nuts Plain From $0.00
5/8” x 310 mm UNC B7 Studbolt A193, 2H A194 Nuts Plain From $0.00
5/8” x 320 mm UNC B7 Studbolt A193, 2H A194 Nuts Plain From $0.00
5/8” x 325 mm UNC B7 Studbolt A193, 2H A194 Nuts Plain From $0.00
5/8” x 330 mm UNC B7 Studbolt A193, 2H A194 Nuts Plain From $0.00
5/8” x 335 mm UNC B7 Studbolt A193, 2H A194 Nuts Plain From $0.00
5/8” x 345 mm UNC B7 Studbolt A193, 2H A194 Nuts Plain From $0.00
5/8” x 350 mm UNC B7 Studbolt A193, 2H A194 Nuts Plain From $0.00

Build A Quote?

Store Item

SKU:

Product List

SKU	Description	Availability	List Price	Pack
				Pack:

More Information

More Information
Delivery	7 - 10 DAYS. Lead times may vary depending on quantity.
Diameter / Gauge	5/8"
Thread Type	UNC
Bolt / Stud Property	ASTM A193 B7
Nut Properties	ASTM A194 Gr 2H
Material / Finish	Plain (Unplated)
Use for	Petrochemical

Technical Information

SKU	Dia. x Length	Finish	Tensile, min [ MPa ]	Yield, min [ MPa ]	Weight [ kg ]
1280.0160050	5/8” x 50mm UNC	Plain	860 MPa	720 MPa	0.16
1280.0160060	5/8” x 60mm UNC	Plain	860 MPa	720 MPa	0.18
1280.0160065	5/8” x 65mm UNC	Plain	860 MPa	720 MPa	0.18
1280.0160070	5/8” x 70mm UNC	Plain	860 MPa	720 MPa	0.19
1280.0160075	5/8” x 75mm UNC	Plain	860 MPa	720 MPa	0.19
1280.0160080	5/8” x 80mm UNC	Plain	860 MPa	720 MPa	0.2
1280.0160090	5/8” x 90mm UNC	Plain	860 MPa	720 MPa	0.21
1280.0160095	5/8” x 95mm UNC	Plain	860 MPa	720 MPa	0.22
1280.0160100	5/8” x 100mm UNC	Plain	860 MPa	720 MPa	0.23
1280.0160110	5/8” x 110mm UNC	Plain	860 MPa	720 MPa	0.24
1280.0160115	5/8” x 115mm UNC	Plain	860 MPa	720 MPa	0.24
1280.0160120	5/8” x 120mm UNC	Plain	860 MPa	720 MPa	0.25
1280.0160125	5/8” x 125mm UNC	Plain	860 MPa	720 MPa	0.26
1280.0160130	5/8” x 130mm UNC	Plain	860 MPa	720 MPa	0.26
1280.0160140	5/8” x 140mm UNC	Plain	860 MPa	720 MPa	0.28
1280.0160145	5/8” x 145mm UNC	Plain	860 MPa	720 MPa	0.28
1280.0160150	5/8” x 150mm UNC	Plain	860 MPa	720 MPa	0.29
1280.0160160	5/8” x 160mm UNC	Plain	860 MPa	720 MPa	0.3
1280.0160165	5/8” x 165mm UNC	Plain	860 MPa	720 MPa	0.31
1280.0160170	5/8” x 170mm UNC	Plain	860 MPa	720 MPa	0.31
1280.0160180	5/8” x 180mm UNC	Plain	860 MPa	720 MPa	0.33
1280.0160185	5/8” x 185mm UNC	Plain	860 MPa	720 MPa	0.33
1280.0160190	5/8” x 190mm UNC	Plain	860 MPa	720 MPa	0.34
1280.0160195	5/8” x 195mm UNC	Plain	860 MPa	720 MPa	0.35
1280.0160200	5/8” x 200mm UNC	Plain	860 MPa	720 MPa	0.35
1280.0160210	5/8” x 210mm UNC	Plain	860 MPa	720 MPa	0.36
1280.0160215	5/8” x 215mm UNC	Plain	860 MPa	720 MPa	0.37
1280.0160220	5/8” x 220mm UNC	Plain	860 MPa	720 MPa	0.38
1280.0160230	5/8” x 230mm UNC	Plain	860 MPa	720 MPa	0.39
1280.0160235	5/8” x 235mm UNC	Plain	860 MPa	720 MPa	0.4
1280.0160240	5/8” x 240mm UNC	Plain	860 MPa	720 MPa	0.4
1280.0160250	5/8” x 250mm UNC	Plain	860 MPa	720 MPa	0.41
1280.0160255	5/8” x 255mm UNC	Plain	860 MPa	720 MPa	0.42
1280.0160260	5/8” x 260mm UNC	Plain	860 MPa	720 MPa	0.43
1280.0160265	5/8” x 265mm UNC	Plain	860 MPa	720 MPa	0.43
1280.0160275	5/8” x 275mm UNC	Plain	860 MPa	720 MPa	0.45
1280.0160280	5/8” x 280mm UNC	Plain	860 MPa	720 MPa	0.45
1280.0160285	5/8” x 285mm UNC	Plain	860 MPa	720 MPa	0.46
1280.0160290	5/8” x 290mm UNC	Plain	860 MPa	720 MPa	0.46
1280.0160300	5/8” x 300mm UNC	Plain	860 MPa	720 MPa	0.48
1280.0160305	5/8” x 305mm UNC	Plain	860 MPa	720 MPa	0.48
1280.0160310	5/8” x 310mm UNC	Plain	860 MPa	720 MPa	0.49
1280.0160320	5/8” x 320mm UNC	Plain	860 MPa	720 MPa	0.50
1280.0160325	5/8” x 325mm UNC	Plain	860 MPa	720 MPa	0.51
1280.0160330	5/8” x 330mm UNC	Plain	860 MPa	720 MPa	0.51
1280.0160335	5/8” x 335mm UNC	Plain	860 MPa	720 MPa	0.52
1280.0160345	5/8” x 345mm UNC	Plain	860 MPa	720 MPa	0.53
1280.0160350	5/8” x 350mm UNC	Plain	860 MPa	720 MPa	0.54
